Quick Installation
1. Connect video cable
• Make sure both the LCD display and computer are turned OFF.
• Remove rear panel covers if necessary.
• Connect the video cable from the LCD display to the computer.
Macintosh users: Models older than G3 require a Macintosh adapter. Attach the
adapter to the computer and plug the video cable into the adapter.
To order a ViewSonic
®
Macintosh adapter, contact ViewSonic Customer Support.

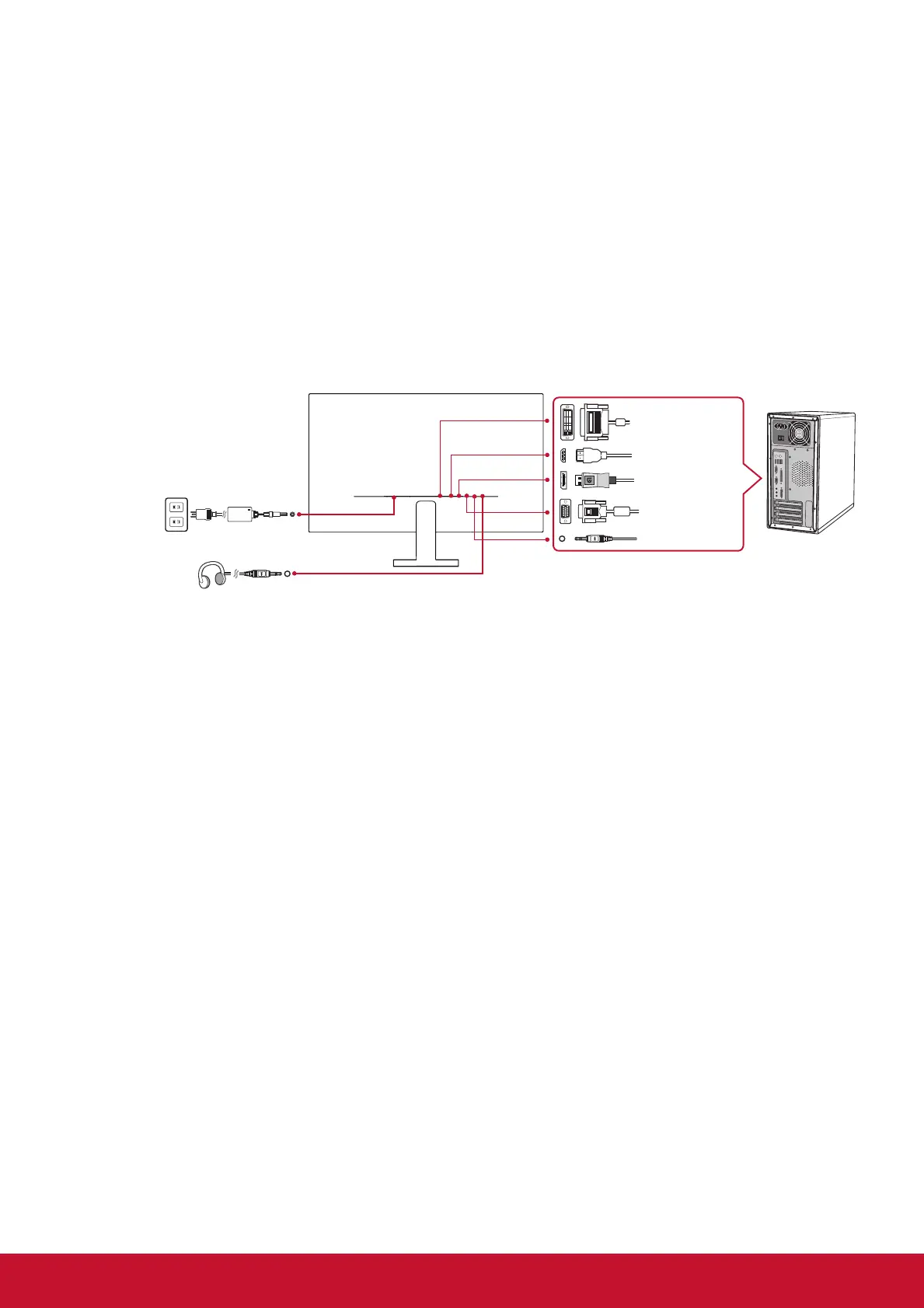

2. Connect power cord (and AC/DC adapter if required)
1
3
5
79
11
1315
17
19
2
46810
1214
161820
Power Cord
Audio Out
HDMI
DVI
Audio in
DisplayPort
VGA
NOTE: DVI for VX2376 only, HDMI for VX2376-smhd only,
DisplayPort for VX2376-smhd only, Audio in for VX2376-smhd only,
Audio out for VX2376-smhd only
3. Turn ON LCD display and computer
Turn ON the LCD display, then turn ON the computer. This sequence (LCD
display before computer) is important.
4. Windows users: Set the timing mode (example: 1024x768)
For instructions on changing the resolution and refresh rate, see the graphics
card’s user guide.
5. Installation is complete. Enjoy your new ViewSonic LCD display.
