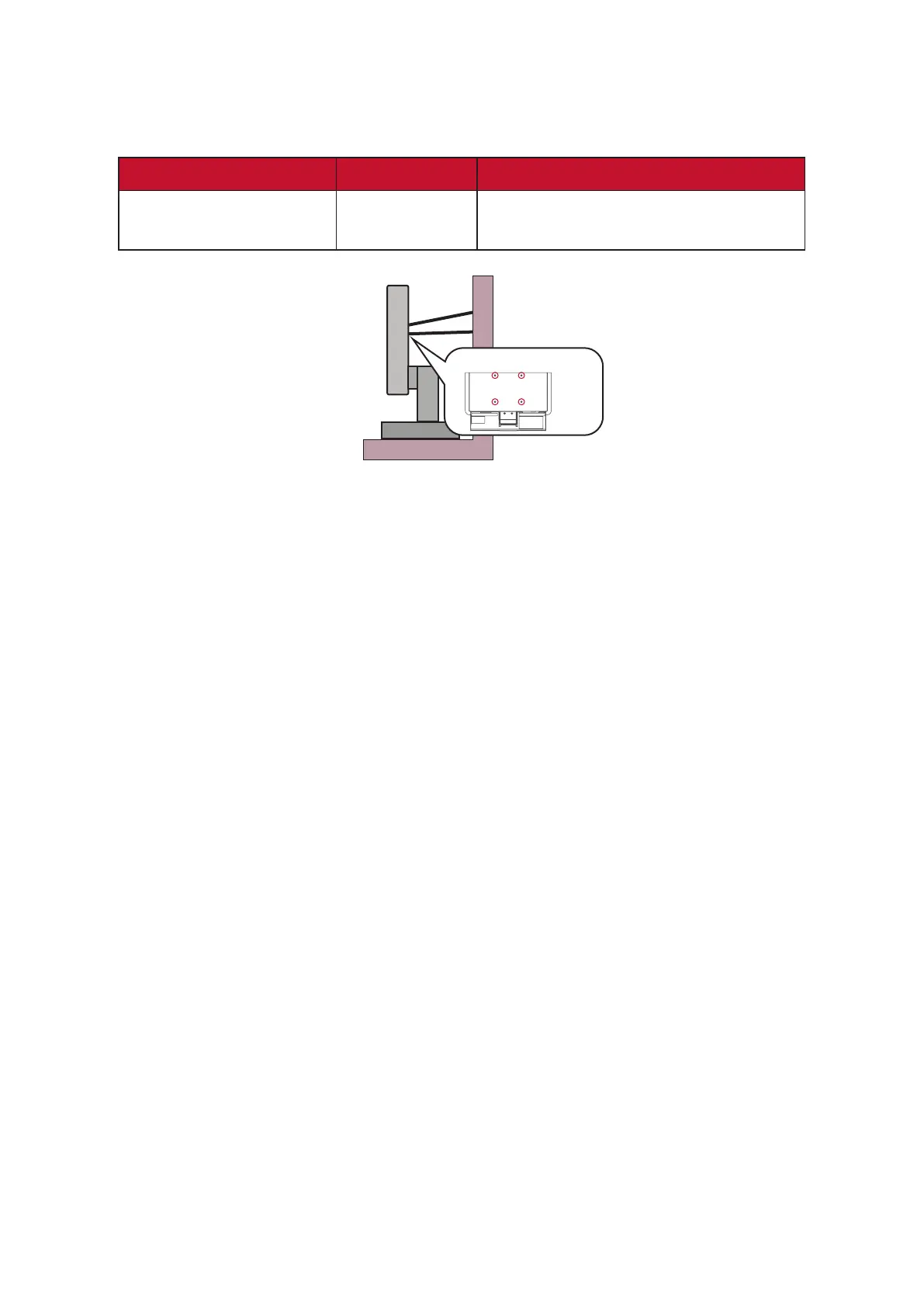

• Fastening the display to a wall or fixed object using cordage or other restraining
devices can help support the weight of the display in order to prevent the
display from falling over.
Hole paern (W x H) Pad Hole Screw Specicaon & Quanty
75 x 75 mm Ø 5 mm
M4 x 10 mm
4 pieces
VESA wall mounng hole
NOTE:
• Restraining device/cordage should be able to withstand 100N force.
• Make sure the cordage is straightened, and any slack is removed. The back
of the device shall face the wall to ensure the device cannot tilt under
external force.
• Make sure the display does not tilt under external force at any height and
rotation angle of the device.
• If the existing display is going to be retained and relocated, the same
considerations as above should be applied.
To Next Page
