V1.0 Vig642M Motherboard Manual
14
System Board Components

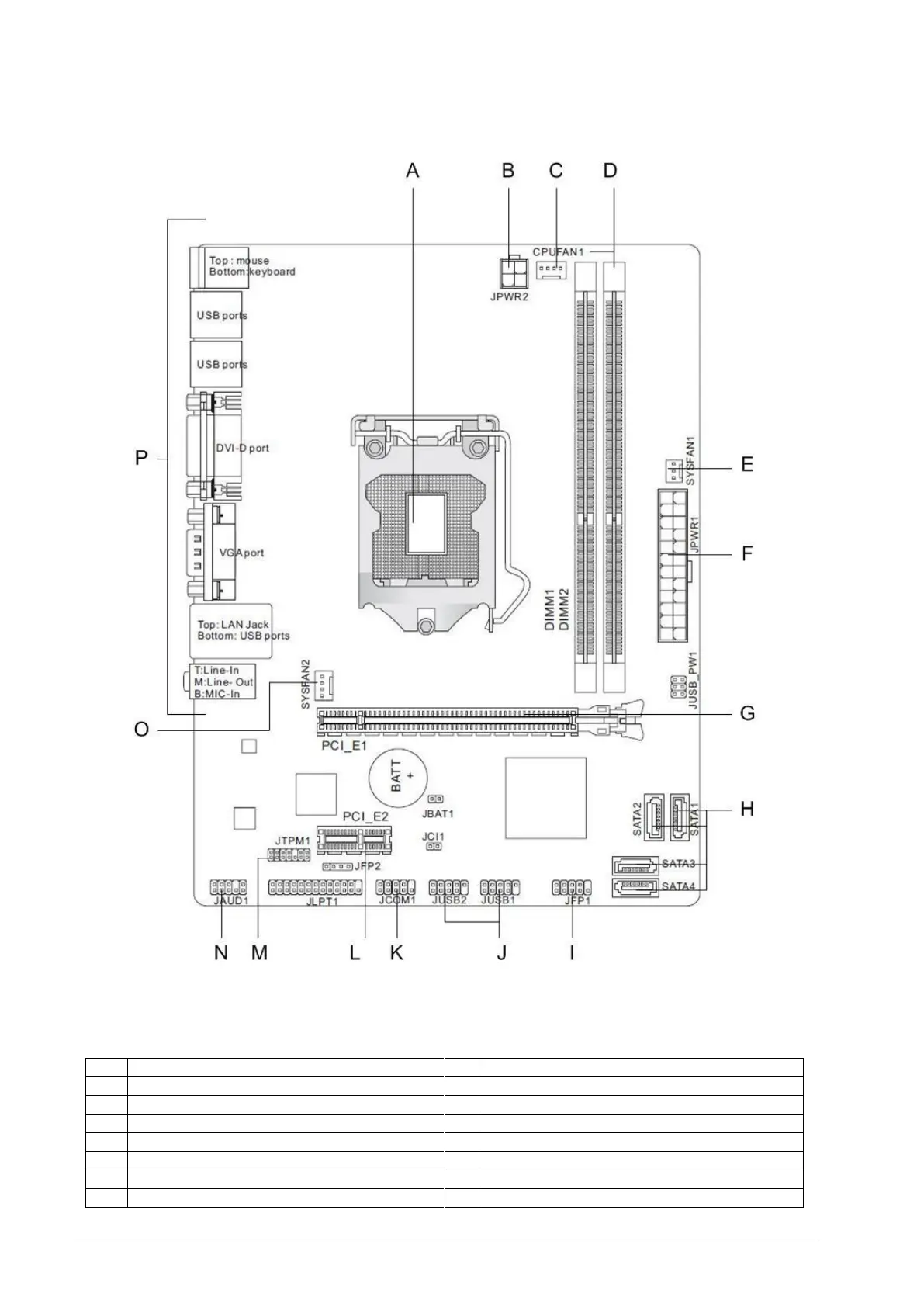

Figure 3: Motherboard Layout & Components
Table 2: Motherboard Connection
A
CPU Socket
I
Front Panel Header
B
4-pin Power Socket Connector
J
USB Headers
C
CPU Fan Header
K
Serial Port Header
D
DIMM Sockets
L
PCI Express x1 Slot
E
System Fan Header
M
TPM Module Header
F
24-pin Power Socket Connector
N
Front Panel Audio Header
G
PCI Express x16 Slot
O
System Fan Header
H
SATA ports
P
Back Panel
