V1.0 Vig642M Motherboard Manual
Front Panel Audio Connector: JAUD1
This connector allows you to connect the front panel audio and is compliant with Intel®
Front Panel I/O Connectivity Design Guide.

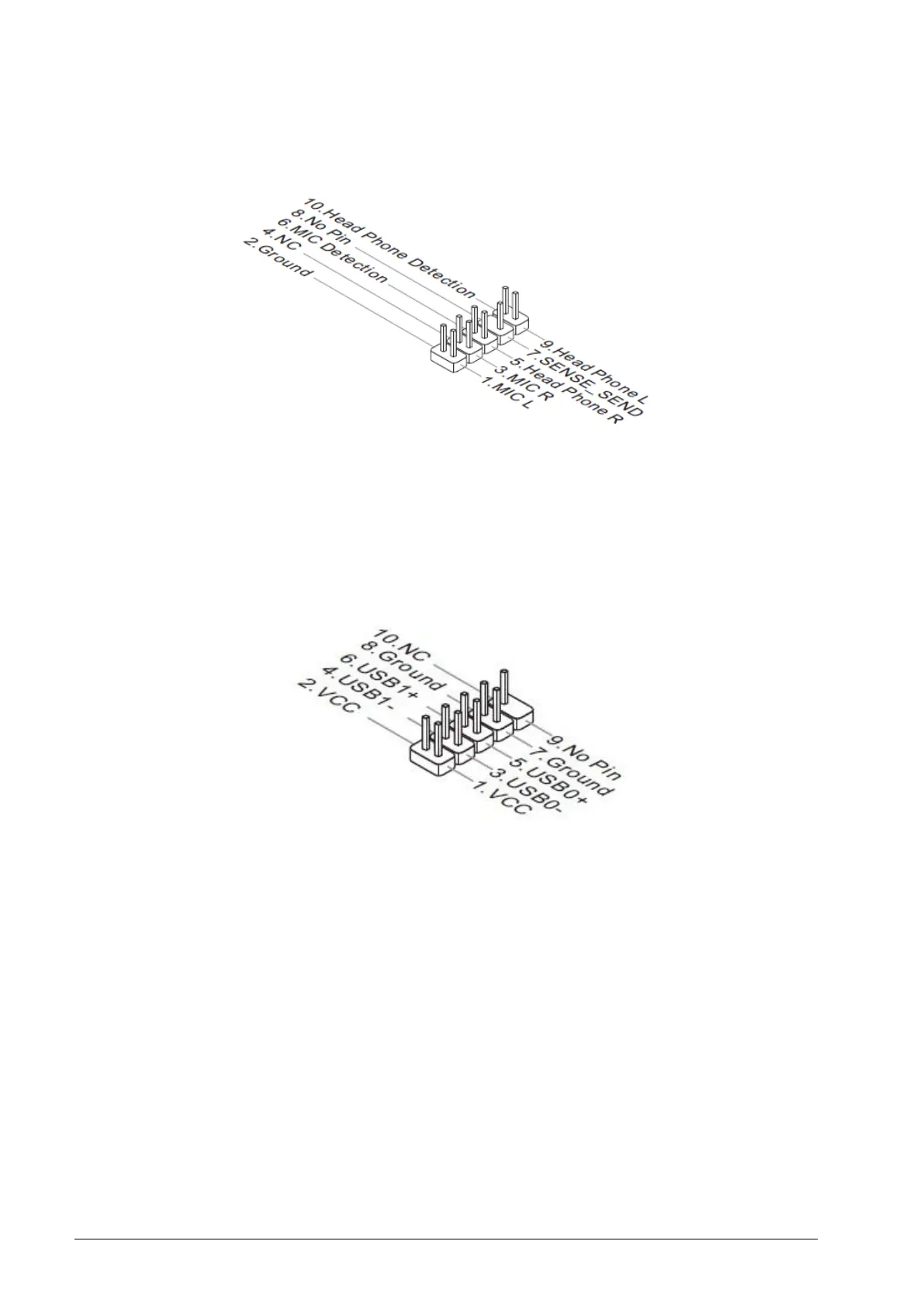

Figure 9: Front panel audio connector
Front USB Connector: JUSB1, JUSB2
This connector, compliant with Intel® I/O Connectivity Design Guide, is ideal for
connecting high-speed USB interface peripherals such as USB HDD, digital cameras,
MP3 players, printers, modems and the like.
Figure 10: Front USB connectors
