7/9
cross structure.

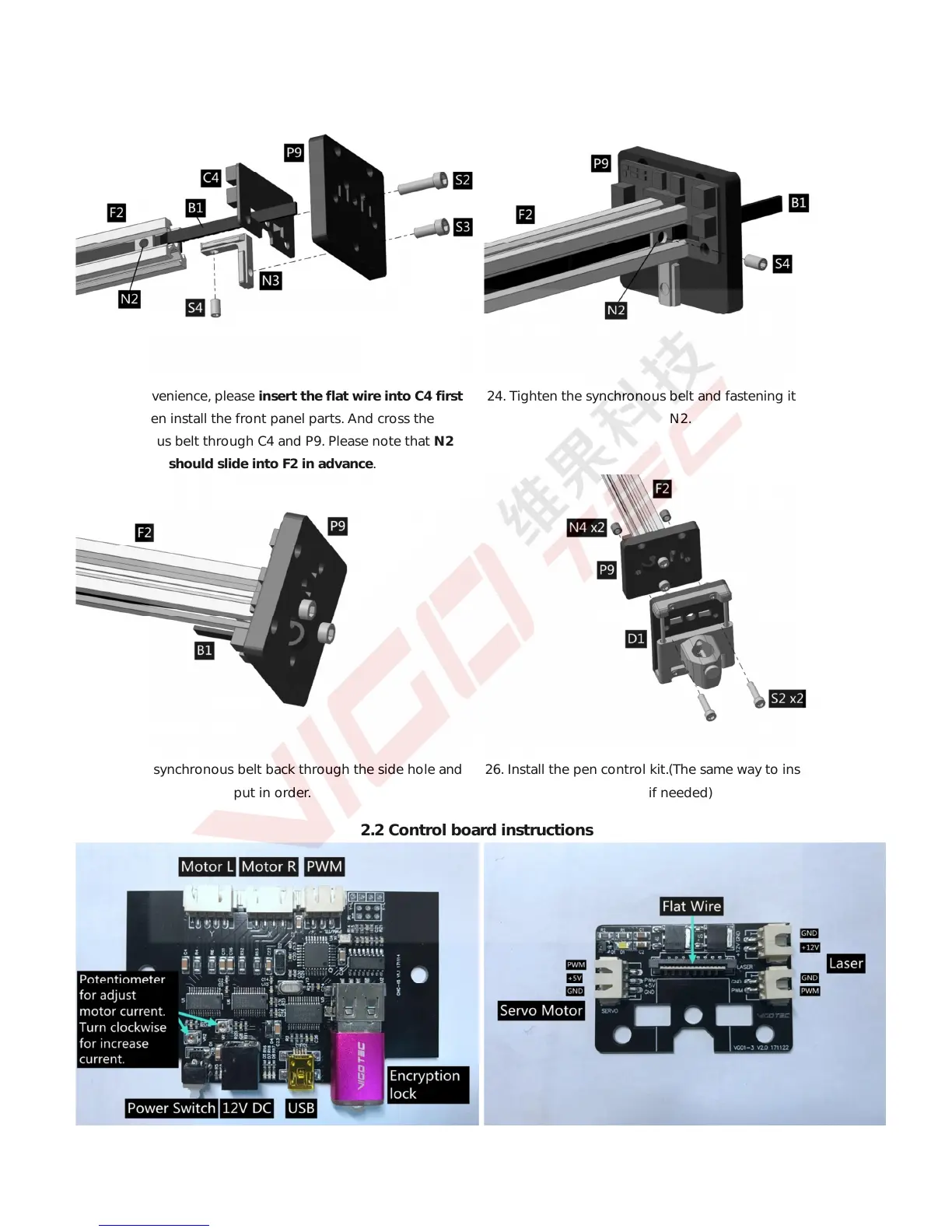

23. For convenience, please insert the flat wire into C4 first
and then install the front panel parts. And cross the
synchronous belt through C4 and P9. Please note that N2
should slide into F2 in advance.
24. Tighten the synchronous belt and fastening it with S4 and
N2.
25. Put the synchronous belt back through the side hole and
put in order.
26. Install the pen control kit.(The same way to install Laser kit
if needed)
2.2 Control board instructions
