CUSTOM PANEL–REFRIGERATION
Built-In 36”W. Bottom-Mount Refrigerator/Freezer—DFBB536
Dimensions & Specifications

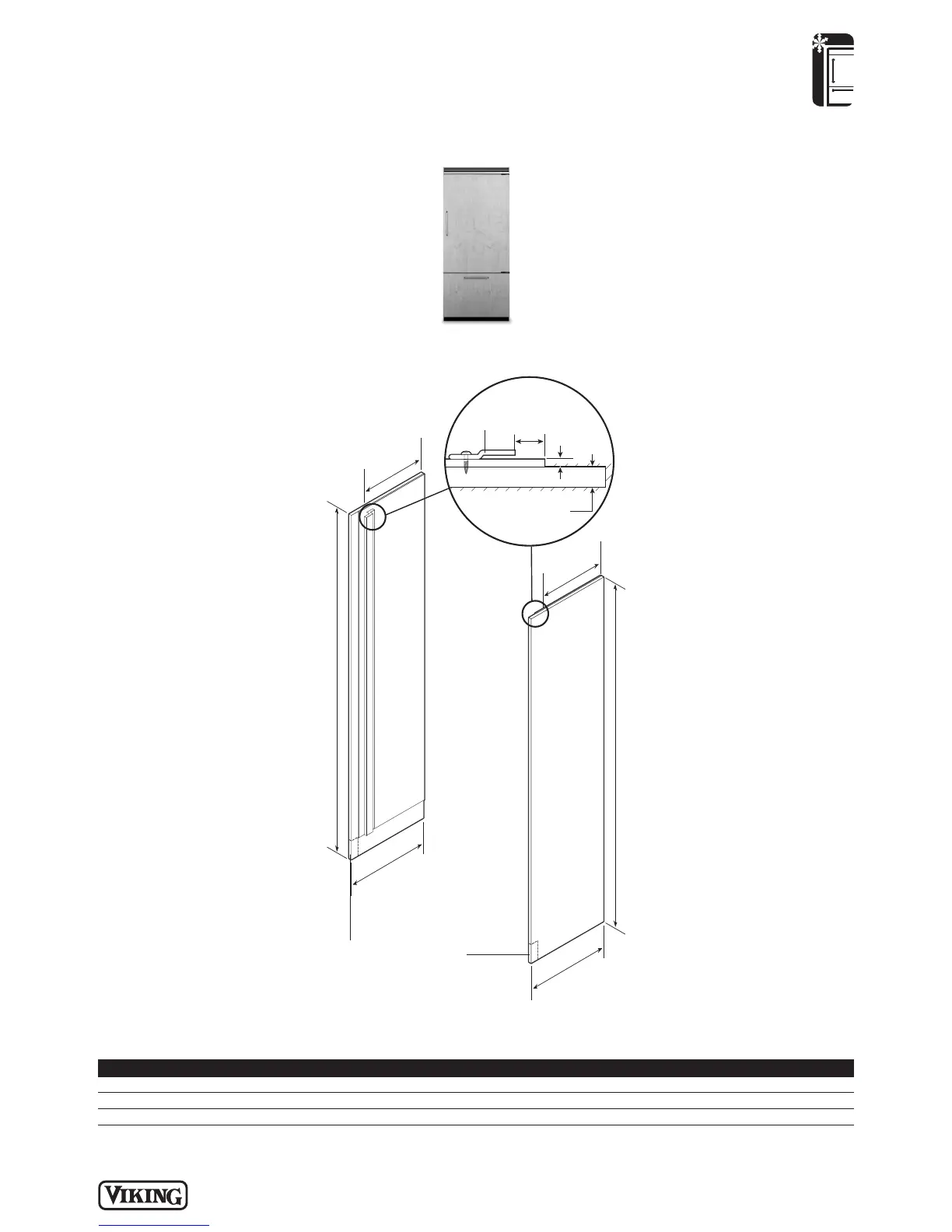

CUSTOM SIDE PANEL DIMENSIONS
Note: Adding a 3/4” (1.9 cm) side panel adds an additional 3/4” (1.9 cm) to the overall width of the product for each side panel.
Requires side panel hardware kit (Kit model number – SPHKDS)
DFBB536
Overall panel width 3/4” (1.9 cm)
Overall panel height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.*
Overall panel depth 24” (61.0 cm)
*Depending on how high leveling feet are raised and cabinet enclosure height.
DFBB536
3/4”
(1.9 cm)
End panel
1”
(2.5 cm)
1/4”
(0.6 cm)
Z
-Bracket
2
1
-3
/
4
”
(5
5
.2
c
m
)
2
1
-3
/
4
”
(55
.2 c
m
)
2
4”
(
6
1
.
0
c
m)
Optional kickplate notch
Dimensions determined by cabinets
24”
(
61
.
0
c
m)
82-
7/8”
(2
1
0
.
5
c
m
)
m
i
n
.
t
o
84-
1/
1
6”
(
21
3
.
5
cm
)
m
ax.
*
82-
7
/
8”
(2
1
0
.
5
c
m
)
m
i
n
.
t
o
84-
1
/
1
6”
(
21
3
.
5
cm
)
m
a
x
.
*
