TECHNICAL DATA
2” MODEL G-2000 DRY VALVE
RISER ASSEMBLY
Page 12 of 13
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
Telephone: 269-945-9501 Technical Services: 877-384-5464 Fax: 269-818-1680 Email: techsvcs@vikingcorp.com
Visit the Viking website for the latest edition of this technical data page www.vikinggroupinc.com.
Form No. F_011110 17.04.27 Rev 17.1

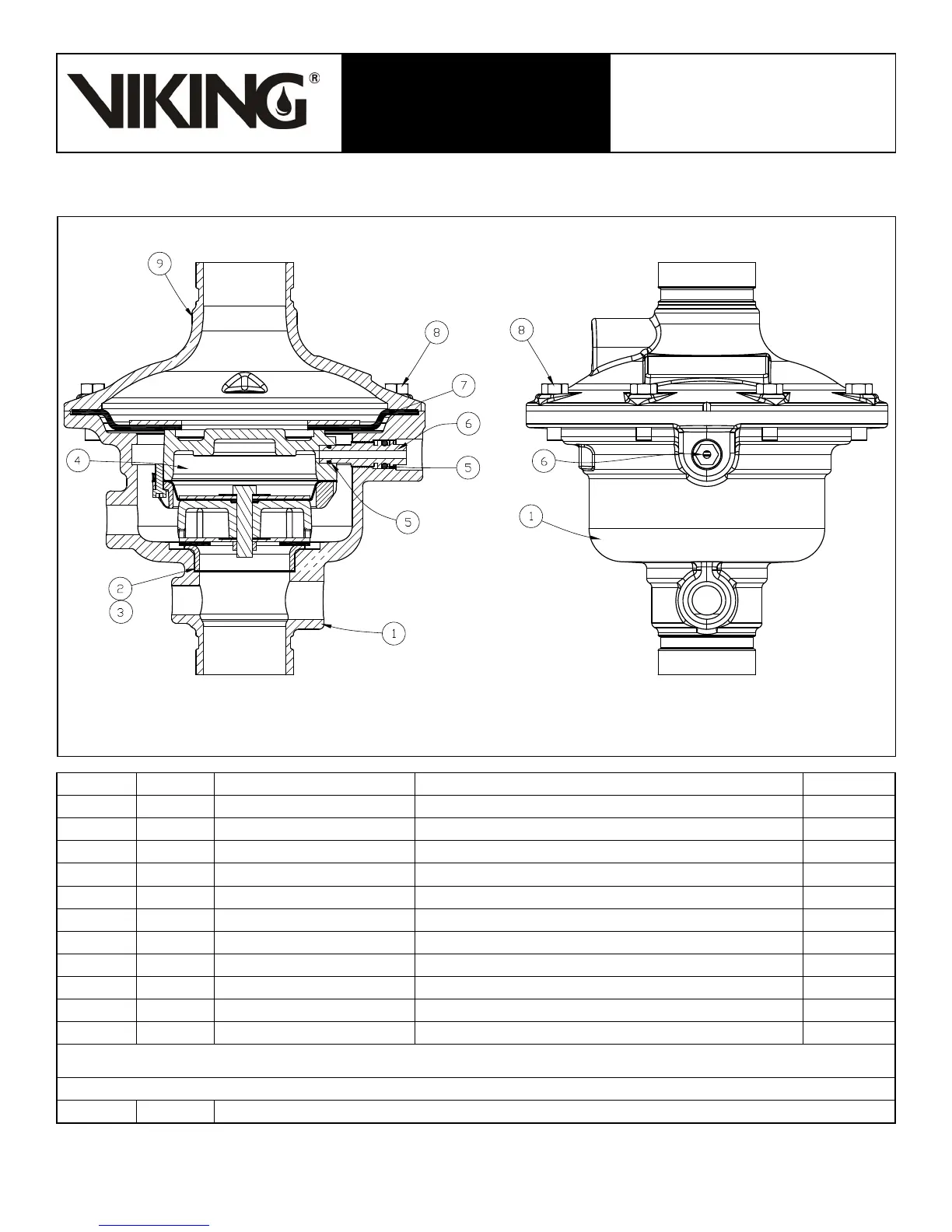

Figure 11 - Model G-2000 Dry Valve Components List/Replacement Parts
Item No. Part No. Description Material No. Req’d
1 -- Body 65-45-12 Ductile Iron 1
2 -- Seat UNS-C11000 Copper or UNS-S30400 Stainless Steel 1
3 -- Anaerobic Adhesive -- 1
4 16063 Prime Chamber Assembly Brass, EPDM, Nitrile, 304 Stainless Steel, Bronze Alloy 1
5 * O-Rings EPDM and Nitrile 2 or 3**
6 16062 Coupling UNS-S17400 Stainless Steel 1
7 15932 Check Diaphragm EPDM 1
8 08091 3/8-16 x 1” HHS UNS-S30400 Stainless Steel 8
9 -- Cover 65-45-12 Ductile Iron 1
10 -- Data Plate Aluminum 2
11 -- Tack Alloy Carbon Steel 4
-- Replacement part is not available.
* Indicates part is available only in a Sub-Assembly, as indicated below.
Sub-Assembly
5 17443 O-Ring Replacement Kit (**Refer to O-Ring Replacement Bulletin Form No. F_120611 for instructions.)
