TECHNICAL DATA
2” MODEL G-2000 DRY VALVE
RISER ASSEMBLY
Page 13 of 13
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
Telephone: 269-945-9501 Technical Services: 877-384-5464 Fax: 269-818-1680 Email: techsvcs@vikingcorp.com
Visit the Viking website for the latest edition of this technical data page www.vikinggroupinc.com.
Form No. F_011110 17.04.27 Rev 17.1
Item
Number
Part
Number
Description Material
Number
Required
1 15459 Seat Brass UNS-C36000 1
2 -- Body Brass UNS-C84400 1
3 14948 Diaphragm Polyester Fabric and EPDM Elastomer 1
4 04735A Upper Diaphragm Bellofram 1
5 12470 Screw, #10-24 x 1-1/4” Long Steel, Zinc Coated 3
6 -- Cover Brass UNS-C84400 1
7 -- Spacer Brass UNS-C84400 1
8 04736A Piston Polycarbonate 1
-- Replacement part is not available.
1-8 15461 Replacement A-1 Differential Valve
3-5, 8 15763 Maintenance Kit

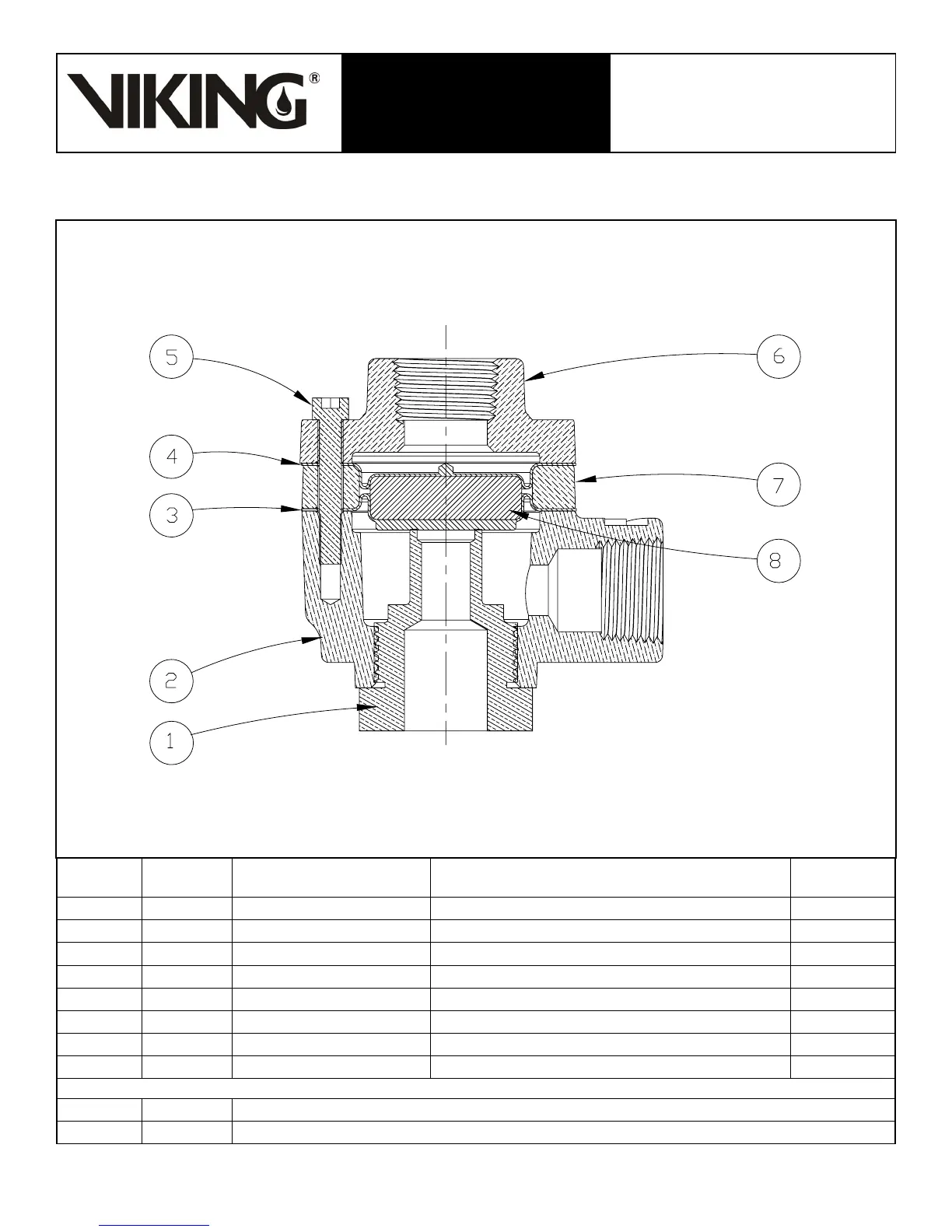

Figure 12 - A-1 Differential Valve
Replaces page 137a-m, dated January 6, 2012.
(Revised figures 1, 6, 7, 9 and 10)
