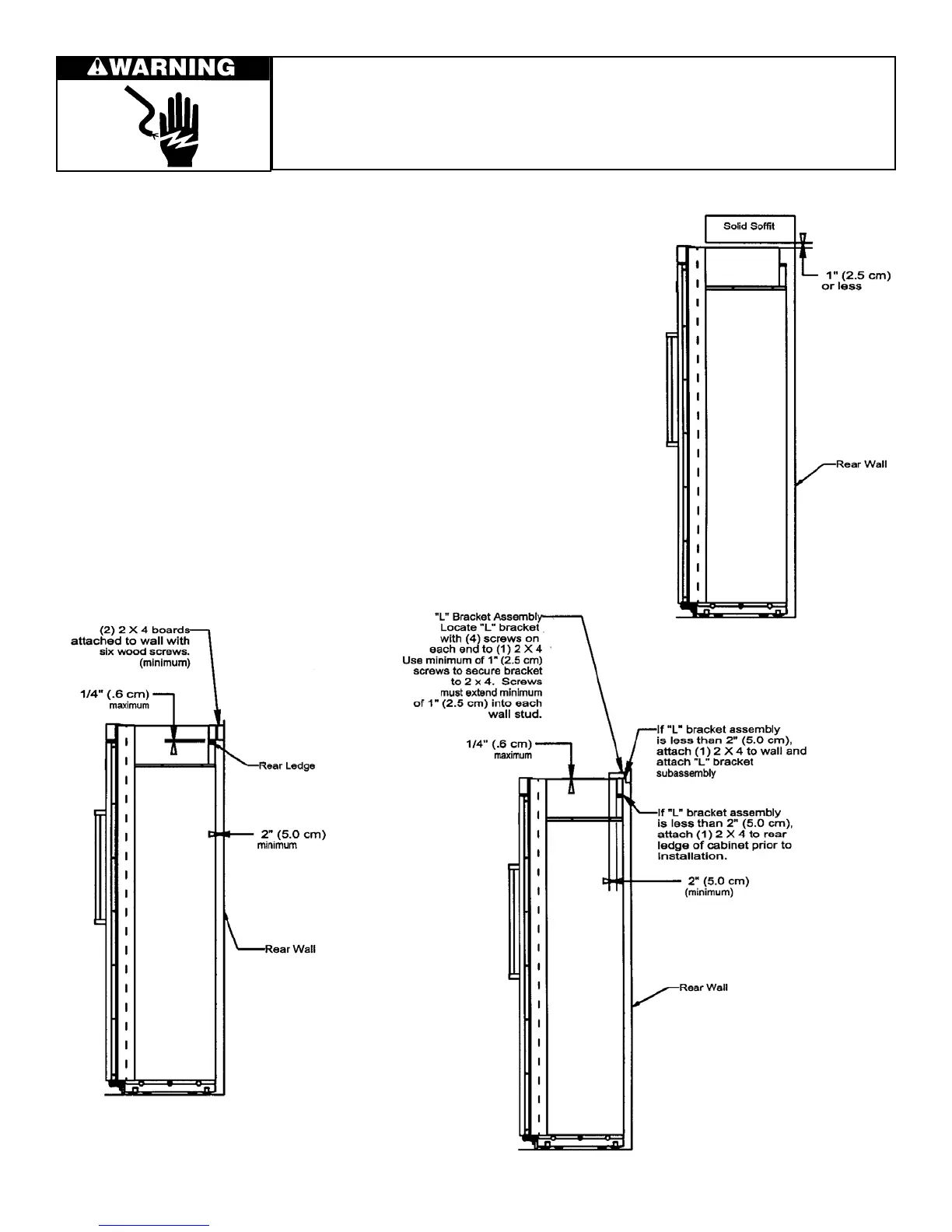

SECURING THE REFRIGERATOR (3 OPTIONS)
OPTION 1
If a solid soffit is 1” (2.5 cm) or less above the refrigerator, anti-tip boards are not
required.
OPTION 2
If a solid soffit is not available or soffit is more than 1” (2.5 cm) above refrigerator,
center wood boards on rear wall 1/4” (.6 cm) maximum above refrigerator. Attach
wood boards to wall studs with six of the provided wood screws, making sure that
screws are engaged in wall studs 1 1/2” (3.8 cm) minimum.
OPTION 3
Create “L” bracket assembly by securing “L” brackets to each end of (1) 2x4 with
provided screws (Item A). If 2x4 does not extend 2” (5.0 cm) beyond rear ledge,
attach (1) 2x4 to wall (Item B), attach (1) 2x4 to rear ledge of cabinet (Item C) and
attach “L” bracket assembly to 2x4 mounted on wall (Item A).
EElleeccttrriiccaall SShhoocckk HHaazzaarrdd
DDiissccoonnnneecctt ppoowweerr aatt bbrreeaakkeerr oorr ttuurrnn ppoowweerr ddiissccoonnnneecctt sswwiittcchh ttoo OOFFFF ppoossiittiioonn bbeeffoorree
ppeerrffoorrmmiinngg aannyy iinnssttaallllaattiioonn pprroocceedduurree.. FFaaiilluurree ttoo ddoo ssoo ccaann rreessuulltt iinn ddeeaatthh oorr eelleeccttrriiccaall
sshhoocckk..
28
(ITEM B)
OPTION 2
OPTION 3
(ITEM A)
(ITEM C)
OPTION 1
