SITE PREPARATIONS AND CONSIDERATIONS

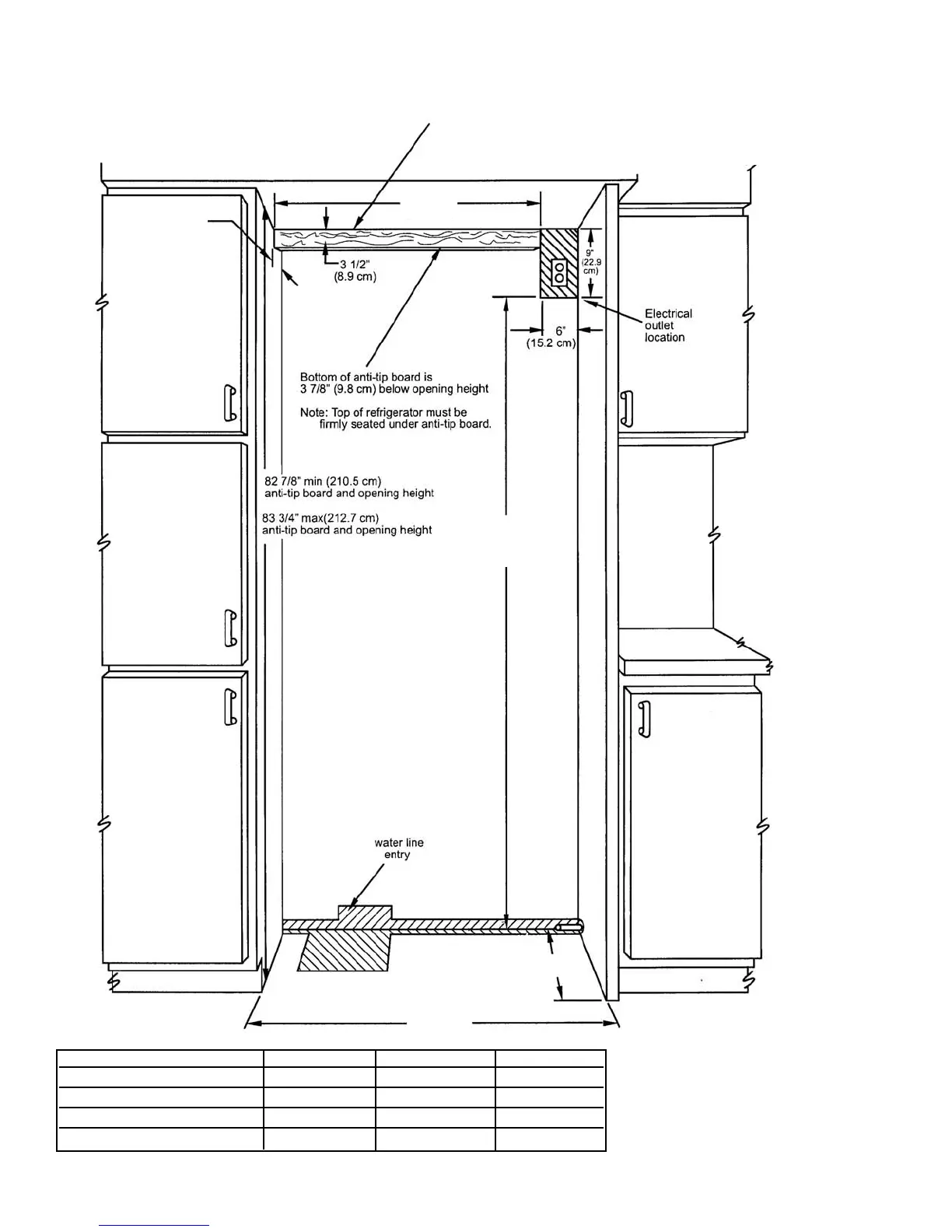

DESIGNER/FULL OVERLAY MODEL SIDE-BY-SIDE CABINET OPENING DIMENSIONS
((11)) 22””xx44”” MMoouunnttiinngg bbooaarrdd ((11 11//22”” ((33..88 ccmm)) xx 33 11//22”” ((88..99 ccmm))
NNoottee:: IIff uunniitt iiss iinnssttaalllleedd ddeeeeppeerr tthhaann 2244”” ((6611..00 ccmm)),, tthheenn iinnccrreeaassee tthhee
mmoouunnttiinngg bbooaarrddss bbyy tthhee ssaammee aammoouunntt
BB
AA BB CC
42” W. Designer 35” (88.9 cm) 42” (106.7 cm) 24” (61.0 cm)
42” W. Full Overlay 35” (88.9 cm) 42” (106.7 cm) 25” (63.5 cm)
48” W. Designer 41” (104.1 cm) 48” (121.9 cm) 24” (61.0 cm)
48” W. Full Overlay 41” (104.1 cm) 48” (121.9 cm) 25” (63.5 cm)
AA
CC
*Full overlay models fit flush in 25”
(63.5 cm) deep cabinet openings. They
can be installed in standard 24” (61.0
cm) deep openings. The door faces
and op grille will protrude 3/4” (1.9 cm)
into the room.
73-3/8”
(186.4 cm)
1-1/2”
(3.8 c,)
