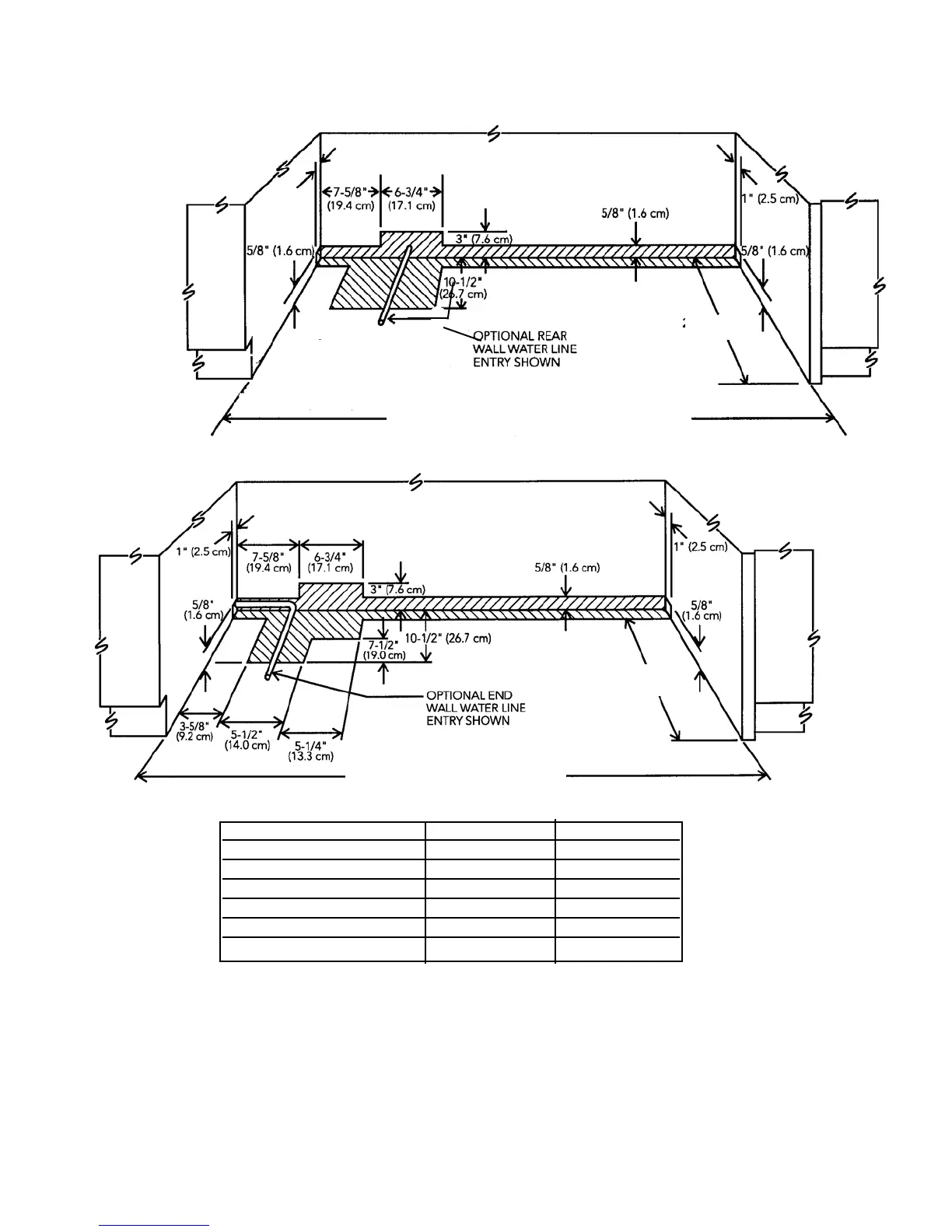

Plumbing Dimensions
A
NON-DISPENSER MODEL
BB
A
DISPENSER MODEL
BB
AA BB
42” W. Professional 41-1/2” (105.4 cm) 24” (61.0 cm)
48” W. Professional 47-1/2” (120.7 cm) 24” (61.0 cm)
42” W. Designer 42” (106.7 cm) 24” (61.0 cm)
48” W. Designer 48” (121.9 cm) 24” (61.0 cm)
42” W. Full Overlay 42” (106.7 cm) 25” (63.5 cm)
48” Full Overlay 48” (121.9 cm) 25” (63.5 cm)
**NNOOTTEE:: MMuusstt
bbee uunnddeerr 11”” ((22..55
ccmm)) ffrroomm bbaacckk
wwaallll
*1”
(2.5 cm)
