Viking VMOR506 - Tools Recommended for Installation; Installation Hardware; Basic Specifications

E3
• Phillips Screwdriver
• Electric Drill
• 1/2", 5/8" and 3/32" Drill Bits
• 1½" Wood Bit or Metal Hole Cutter
(if metal cabinet is used)
Basic Specifications
Microwave Oven
Overall Width 29-15/16" (76.0 cm)
Overall Height from Bottom 16-11/32" (41.5 cm)
Overall Depth from Rear 15-9/32" (38.8 cm)
Oven Interior
Width 17-1/8" (43.5 cm) Depth 13-13/16" (35.1 cm)
Height 8-1/16" (20.5 cm) Overall 1.1 cu. ft.
Cutout Width / Height / Depth N/A
Electrical Requirements (Single Phase) UL Rating 120VAC/60 Hz CSA Rating 116VAC/60 Hz
Max. Amp Usage Microwave UL Rating 1.60 kw 13.2 amps CSA Rating 1.5 kw 13.0 amps
Convection UL Rating 1.60 kw 13.2 amps CSA Rating 1.5 kw 13.0 amps
Approx. Shipping Wt. 71 lbs. (32.2 kg)
Parts shown not to common scale.

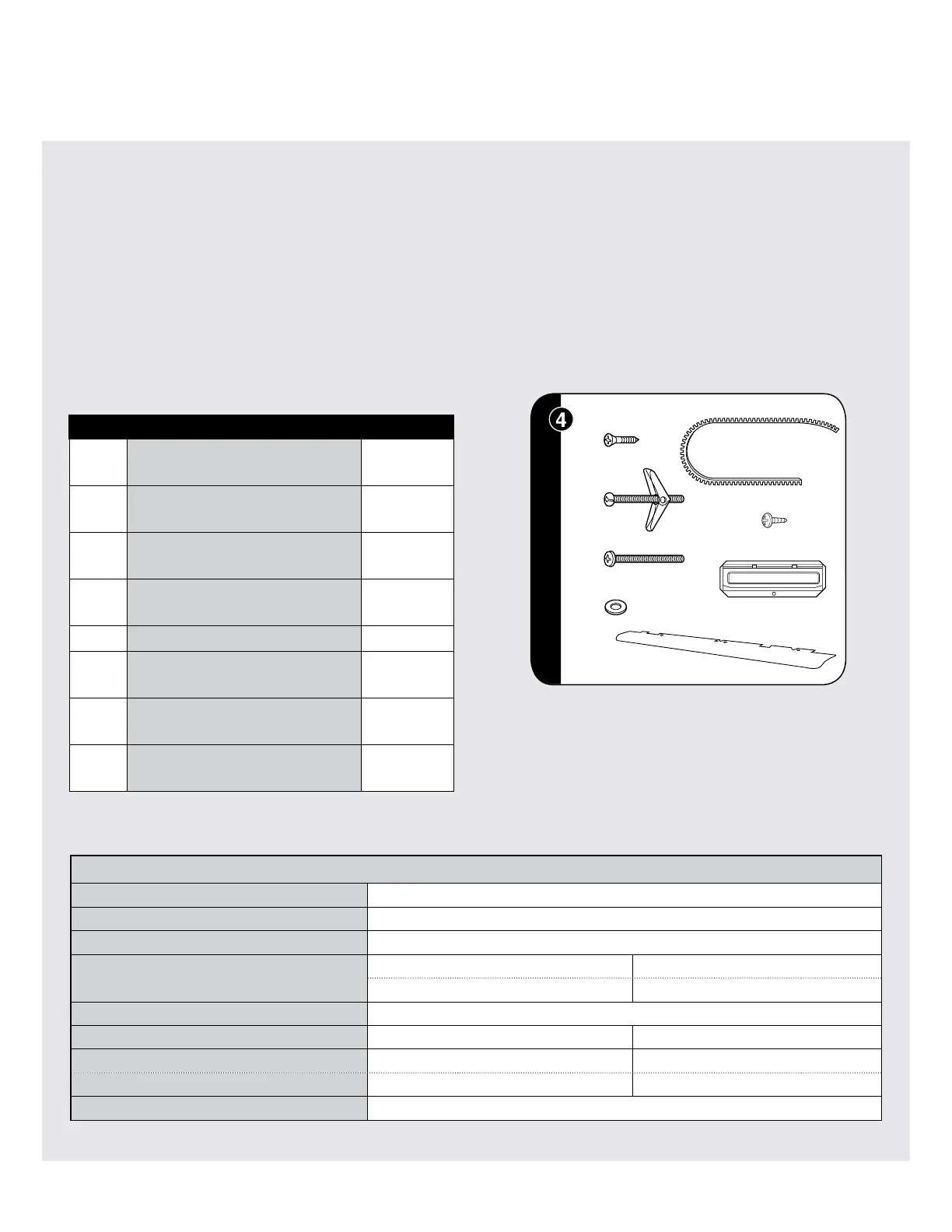

The INSTALLATION HARDWARE (items 1 - 8) packed
with the oven should contain the following:
Item Part Name & Code Quantity
1
Wood Screw 5 x 35 mm
XTSS750P35000
6
2
Toggle Bolt 3/6 inch
LX-BZ0195WRE0
4
3
Top Cabinet Screw 5 x 60 mm
XBRS750P60000
2
4
Flat Washer 30 mm diameter
XWHS750-16300
2
5
Grommet LBSHC0040MRE0
1
6
Tapping Screw 4 x 12 mm
XOTS740P12000
4
7
Exhaust Damper Assembly
FFTA-B004MRK0
1
8
Deflector
PREF-A022WRTZ
1
Parts Included
Hardware Kit #5450M023-60 (items 1 - 7)
Tools Recommended for Installation
Installation Hardware
• Saw to cut exhaust opening (if needed)
• Protective Drop Cloth for product and range -
you may also use carton for protection
• Scissors • Measure
• Pencil • Tape
figure
figure
Use with metal cabinets.
Surround the power cord
opening. Cut to fit.
7
8
5
6
1
2
3
4
