GUARDS AND WATER
SHIELDS FOR
XT1 SPRINKLERS
TECHNICAL DATA
Form No. F_021319 20.10.06 Rev 20.2
Page 2 of 8
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
Telephone: 269-945-9501 Technical Services: 877-384-5464 Fax: 269-818-1680 Email: techsvcs@vikingcorp.com
Visit the Viking website for the latest edition of this technical data page www.vikinggroupinc.com
A
A
A
A
B
B
C
C
C
B
TABLE 2: SPECIFICATIONS
Part Number Description
Dimensions
A B C
22931 XG Sprinkler Guard 2-15/16” (75 mm) 2-3/16” (56 mm) 3/32” (2.3 mm)
22937 XWU Upright Water Shield 3-3/8” (86 mm) 9/16” (14 mm) 1/32” (1 mm)
10323
F-1 Pendent Water Shield (1/2”) 3” (75 mm) 0.08” (2 mm) 0.036” (0.9 mm)
10324
F-1 Pendent Water Shield (3/4”) 3” (75 mm) 0.08” (2 mm) 0.036” (0.9 mm)

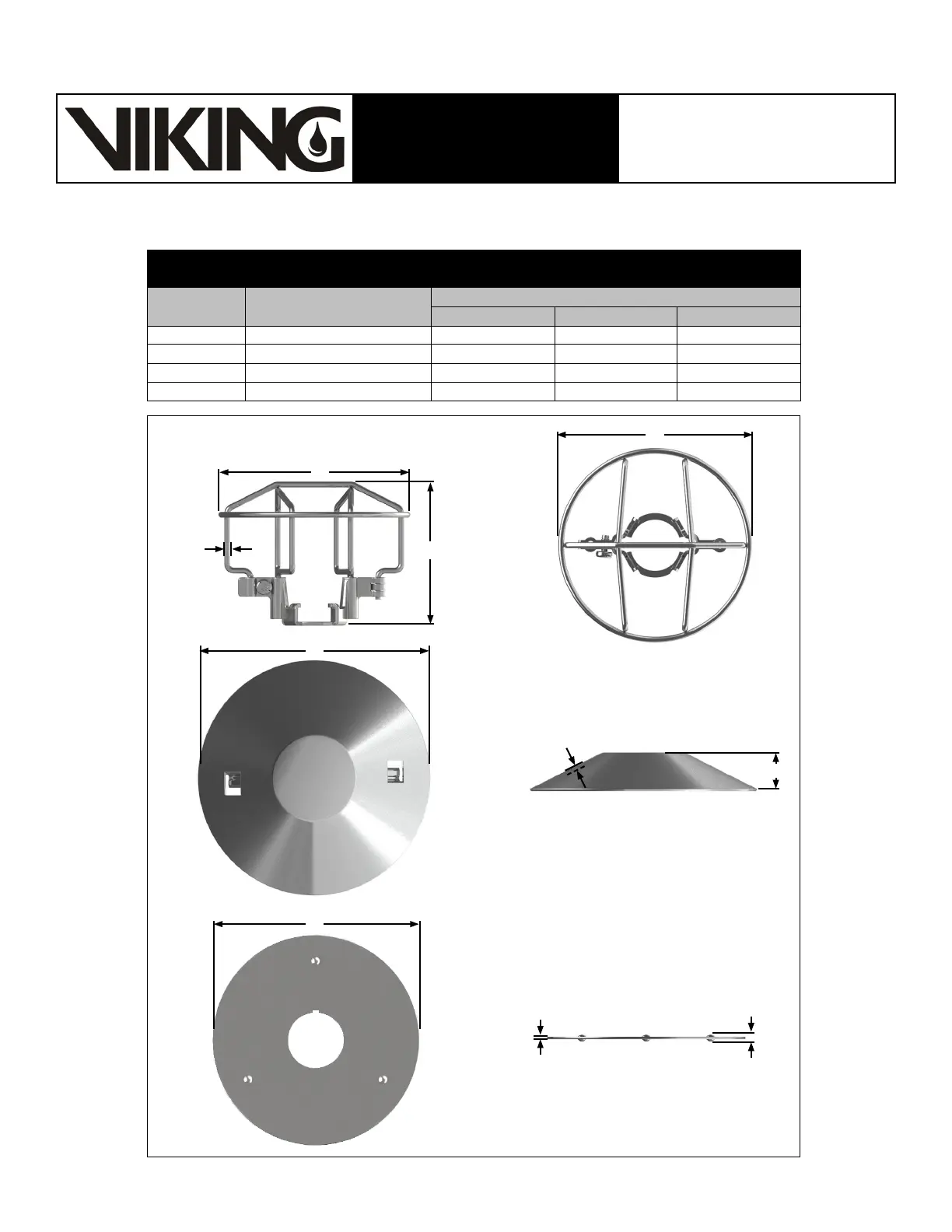

Figure 1: Dimensions
