3
RS16.P
PED
P. P.
PHC
PH
STOP
COM
SCA
24V+
24V-
24V-
BLINK+
SCA+
ON
12
345678
N
N
F
- +
L
SW1 SW2
PHC PHO STP
MRX
PWR
51
PRGMRX
+B
-B
-B
+B
ANT
_
ANT
_
MOTOR
ENCODER
51
52
62
63
61
99
17
0
11
1
0
5x20
T 1.6 A
L
N
230 Vac
120 Vac
-+
-+
12 Vdc
1,3Ah
12 Vdc
1,3Ah
EN

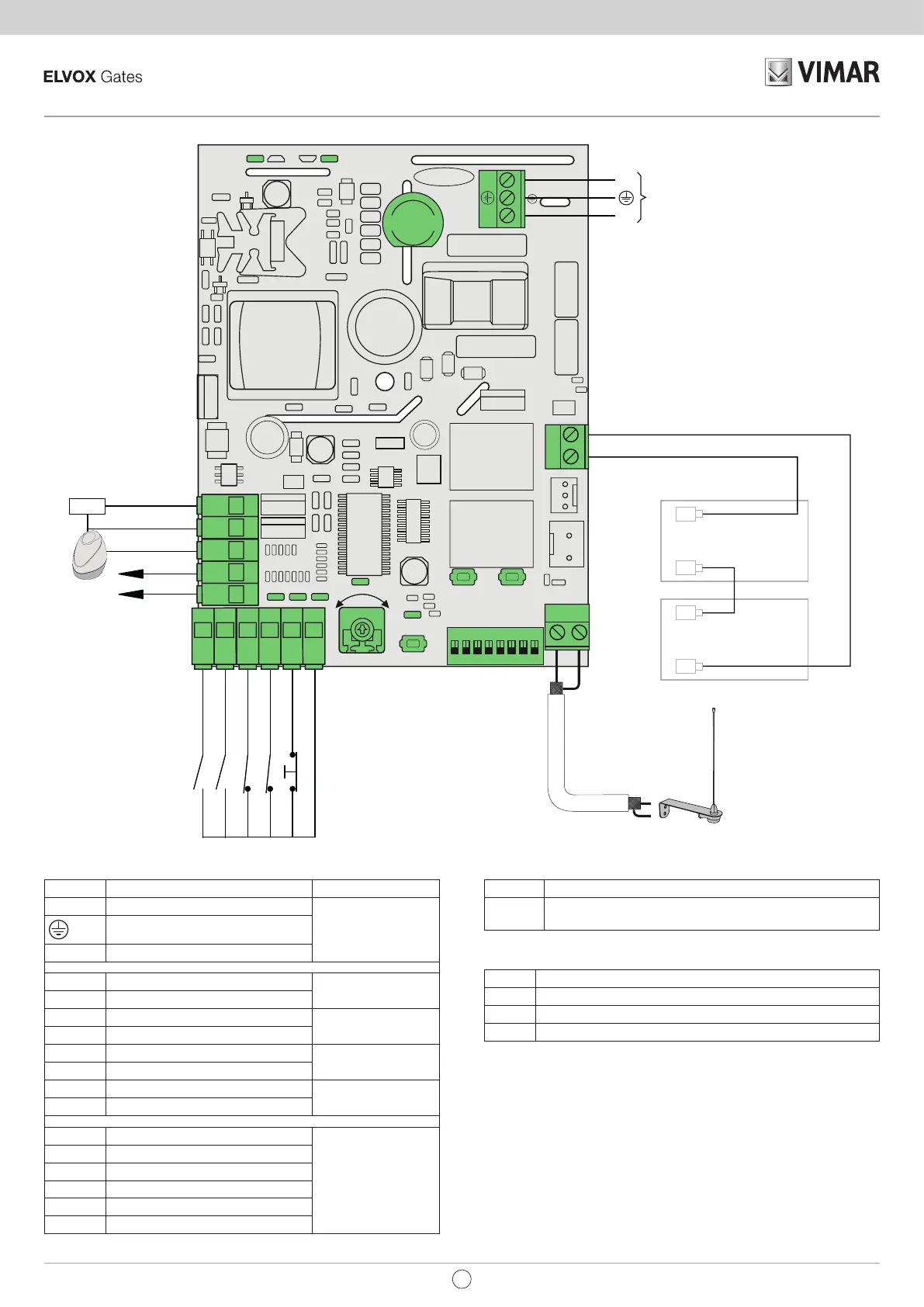

Terminal block functions:
Terminal Description Rated data
N Neutral
120 to 230 Vac
Earth
L Live
17 Gate open warning light positive
24 Vdc 120 mA
0 Accessories negative
11 Flashing light positive
24 Vdc 10 W
0 Accessories negative
1 Accessories positive
24 Vdc 300 mA
0 Accessories negative
+B Emergency battery positive
-B Emergency battery negative
51 Step by step (NO)
52 Pedestrian (NO)
62 Photocell when closing (NC)
63 Photocell (NC)
61 Stop (NC)
99 Common inputs
Trimmer function:
Trimmer Description
MOT
Power of motor
(turn the trimmer clockwise to increase the power)
Button functions:
Button Description
PRG Button for programming the travel
MRX Button for programming or deleting remote controls
51 Step-by-step command button
