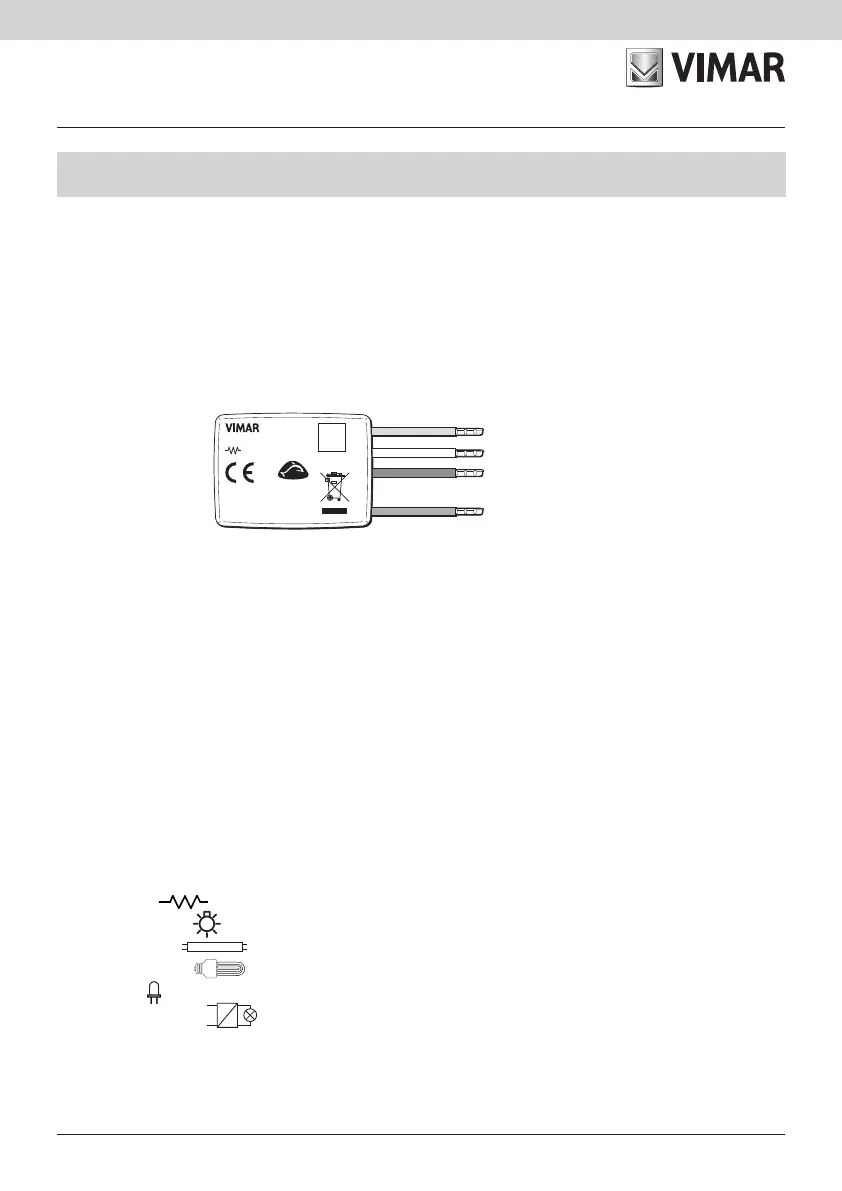

EnOcean multi-function 1-relay actuator (01796.1)
EnOcean multi-function 1-relay actuator, power supply 230 V~ 50-60 Hz (01796.1)
The actuator with the EnOcean module is able to receive both the radio signal transmitted by the bus interface with the EnOcean
module following a command made with the button of a By-me device and the radio command of the radio-frequency rocker switch
to actuate, via relay output, the load to which it is connected.
It can be connected to a traditional switch or push button to control the on-board relay or another EnOcean actuator; the wired con-
nection also enables making mixed wired/radio systems, by connecting a wired two-way switch (possibly connected to a multi-way/
two-way switch) to add a radio control point.
The actuator operates also as a signal repeater by propagating the EnOcean signals to increase the coverage of the network. It is
protected against overloads and overheating; near-to-zero-volt detector to increase the life of the relay.
If there is no mains power supply, the actuator keeps the previous configuration.
TECHNICAL CHARACTERISTICS.
• Power supply: 230 V~, 50-60 Hz.
• Reception frequency: 868 MHz.
• Operating temperature: -10°C to +45°C (indoor use).
• Touch button for configuration and for local load control.
• RGB LED for signalling the various configuration phases.
• This device supports the following EEP (EnOcean Equipment Profiles):
- switches with EEP F6 02 01 (eg: 20505);
- presence sensors with EEP A5 07 01;
- contacts for doors/windows with EEP D5 00 01;
- gateway with EEP A5 38 08 command 0x01;
- card readers with EEP F6 04 01;
- water sensors with EEP F6-05-01;
- handle for window with EEP F6-10-00;
- energy meter with EEP D2-01-09.
• Two-position stable relay output with the following controllable loads:
- resistive loads
: 8 A (20.000 cycles);
- incandescent lamps : 5 A (20.000 cycles);
- fluorescent lamps : 1 A (20.000 cycles);
- energy saving lamps : 100 W - 230 V~ (20.000 cycles);
- LED lamps : 100 W - 230 V~ (20.000 cycles);
- electronic transformers : 4 A (20.000 cycles);
- cos ø 0.6 motors: 3.5 A (100.000 cycles).
• Maximum number of radio transmitters that can be saved on the relay: 30.
01796.1
8A
VIMAR SPA
VIALE VICENZA 14
36063 MAROSTICA VI
ITALY
L 1 P N
µ
enocean
50/60 Hz
230V~
®
