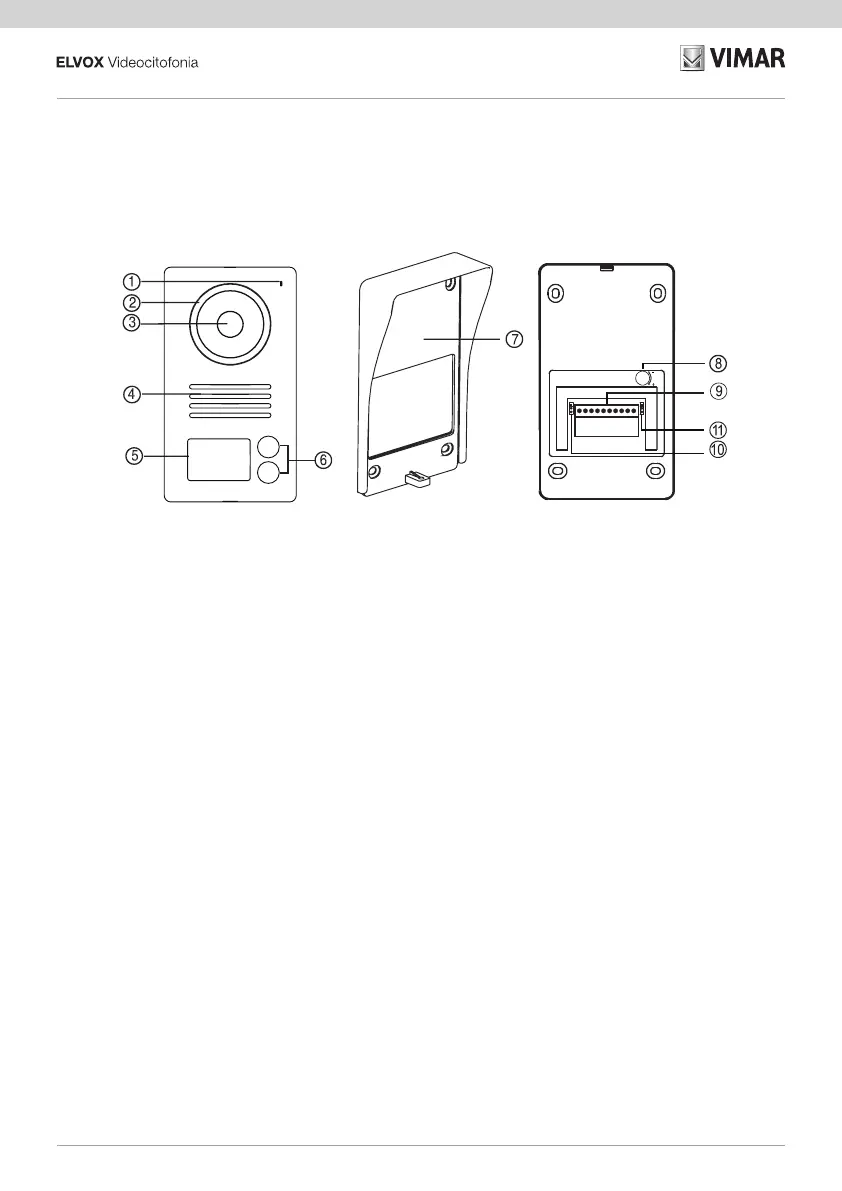

Targa esterna
1 Microfono
2 LED di illuminazione per visione
notturna
3 Telecamera
4 Altoparlante
5 Targhetta con cartellino portanomi
retroilluminata
6 Pulsante di chiamata
7 Cornice parapioggia
8 Regolazione del volume
dell’altoparlante
9 Morsettiera di collegamento
10 Jumper congurazione ID targa
11 Jumper congurazione modalità relè
NO/NC:
- NO = Normalmente aperto
- NC = Normalmente chiuso
Plaque de rue
1 Microphone
2 Leds d'éclairage pour vision
nocturne
3 Caméra
4 Haut-parleur
5 Porte-étiquettes rétroéclairé
6 Bouton d'appel
7 Encadrement de protection contre la
pluie
8 Réglage du volume du haut-parleur
9 Bornier de raccordement
10 Jumper de conguration ID plaque
11 Jumper de conguration modalité
relais NO/NF :
- NO = Normalement ouvert
- NC = Normalement fermé
Placa externa Botoneira externaKlingeltableau
Εξωτερική μπουτονιέρα
Entrance panel
1 Microphone
2 LED lighting for night-time visibility
3 Camera
4 Speaker
5 Name plate with backlit name card
holders
6 Call button
7 Rainproof cover
8 Speaker volume adjustment
9 Connection terminal block
10 Jumper for conguring entrance
panel ID
11 Jumper for conguring NO/NC relay
mode:
- NO = Normally open
- NC = Normally closed
