First power up
7558 is supplied without ID. On switching on the display by
touching the keypad, the only action possible is to assign main
or secondary internal unit as the ID:
First power up
On choosing one of the two, the internal unit requests ID assign
-
ment from the Master outdoor unit and the functions of the keys
change as follows:
T1
now serves to cancel a request, T3 and T4
serve respectively to reduce and increase the speaker volume.
Initialisation in progress
On completion of the ID assignment procedure, the number as
-
signed will appear at the top of the display:
The procedure for assigning the ID as main or secondary and
the relative times depend on the type of Master outdoor station
available. Refer to the relative installer instructions.
Assigning ID
FW updates
SaveProg manages Art. 7558 from version 3.8.6.0 onwards.
Driver for PC
The drivers are the same as for the other device in the TAB family.
The rst time a device is connected to a USB port, the PC must as-
sociate the drivers to the peripheral device even if a TAB device has
already been associated. The internal unit is identied in SaveProg
as ELVOX_P129A_2..

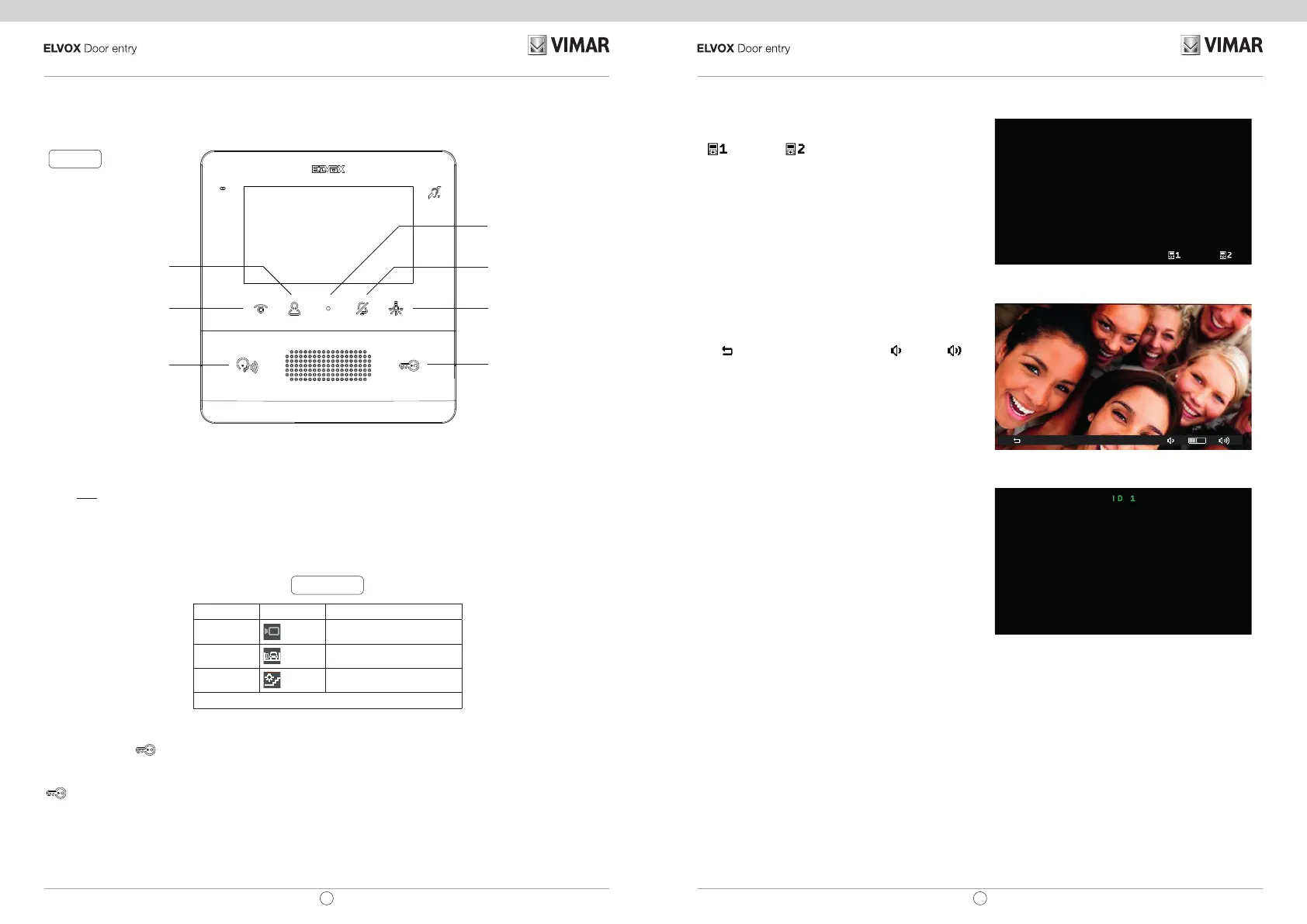

Fig. 6
C (Access Menu
conguration)
P/A (Answer / End call / Call
to switchboard)
T4 (Stair light)
Lock
T2 (AUX2)
T1 (Self-start)
T3 (Ringtone mute / Mute
microphone)
In the subsequent sections of this document the touch keys are designated as shown in the gure (Fig. 6):
At rest, none of the buttons perform the touch function, but must be pressed for longer (around 0.4 s): this prevents the accidental activation
of commands. Unless specically disabled, the recognition notice is given by acoustic signalling.
Buttons T1, T2 and T4 have a default (when not programmed) which is the one shown in the following gure (Table 1), along with the default
icons: Buttons T2 and T4 can be congured using the installer menu or with SaveProg.
Table 1
KEY ICON MEANING
T1
Self-start
T2
Aux 2
T4
Aux 1
Note: The icons are visible in call/conversation.
T3 has the function of ringtone mute / mute microphone.
By default, the LOCK
key controls the lock of the last outdoor unit to make a call or the outdoor unit for which self-start procedure was
performed.
In standby mode, the screen is completely switched o󰀨. (In the method described above), by activating any one of the keys T1..T4 and LOCK
by default the function is performed without switching on the display unless the function has to do so in order to be performed, such as
self-start.
Key functions
