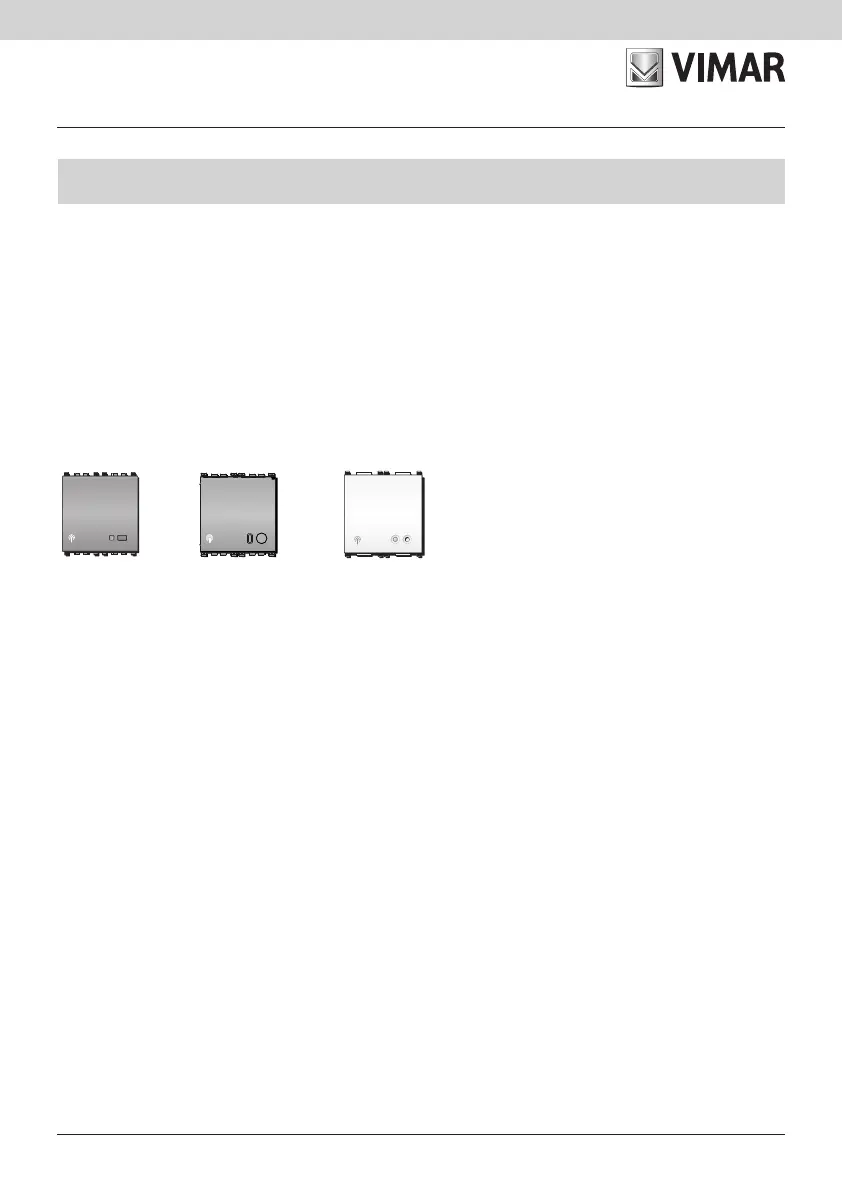

Bus interface with EnOcean module
The Bus with EnOcean module interface allows using the radio frequency devices to extend coverage in places or accesses where it
is not possible to add any cables and devices via Bus.
The interface permits integrating the By-me system and the radio-frequency devices with the EnOcean module that allow carrying out
all the automation functions such as, for instance, controlling lights and shades, scenes, etc.
The interface manages all these functions via pairs of configurable radio buttons such as rocker switches, dimmer switches, roller shade
and scene controls and radio relay actuators.
It is supplied in the following versions:
20508: 2 Eikon modules
19508: 2 Arkè modules
14508: 2 Plana modules
Technical characteristics
• Rated supply voltage (Vn): BUS 20-30 V d.c.
• Protection class: IP30
• Operating temperature: -5 - +45 °C (for indoor use)
• Installation: flush or surface mounting
• Consumption: 20 mA typ
• Frequency of reception and transmission: 868 MHz
• Configuration button
• Indicator LED
• It has two terminals for the polarized connection to the Bus (+ and -).
• Maximum number of radiofrequency devices that can be stored:
16 double rocker switches (each rocker switch can be saved to at most 4 different groups, group depth = 4)
no limit on the number of 01796.1 RF actuators, provided they belong to at most 30 groups.
Bus interface with EnOcean module
