VINGLI CD0BN4D - Assembly Steps: Drawer Structure; Step 3: Attach Drawer Boards; Step 4: Install Cams and Bolts

J
J
J
J
J
J
⑥
⑦
⑧
⑤
A×4
A1
STEP 3
STEP 4
A2
A1
A1
A1
A2
A2
A2
③
④
⑥
⑧
ASSEMBLY>MANUAL support@vingli.com
ASSEMBLY STEPS

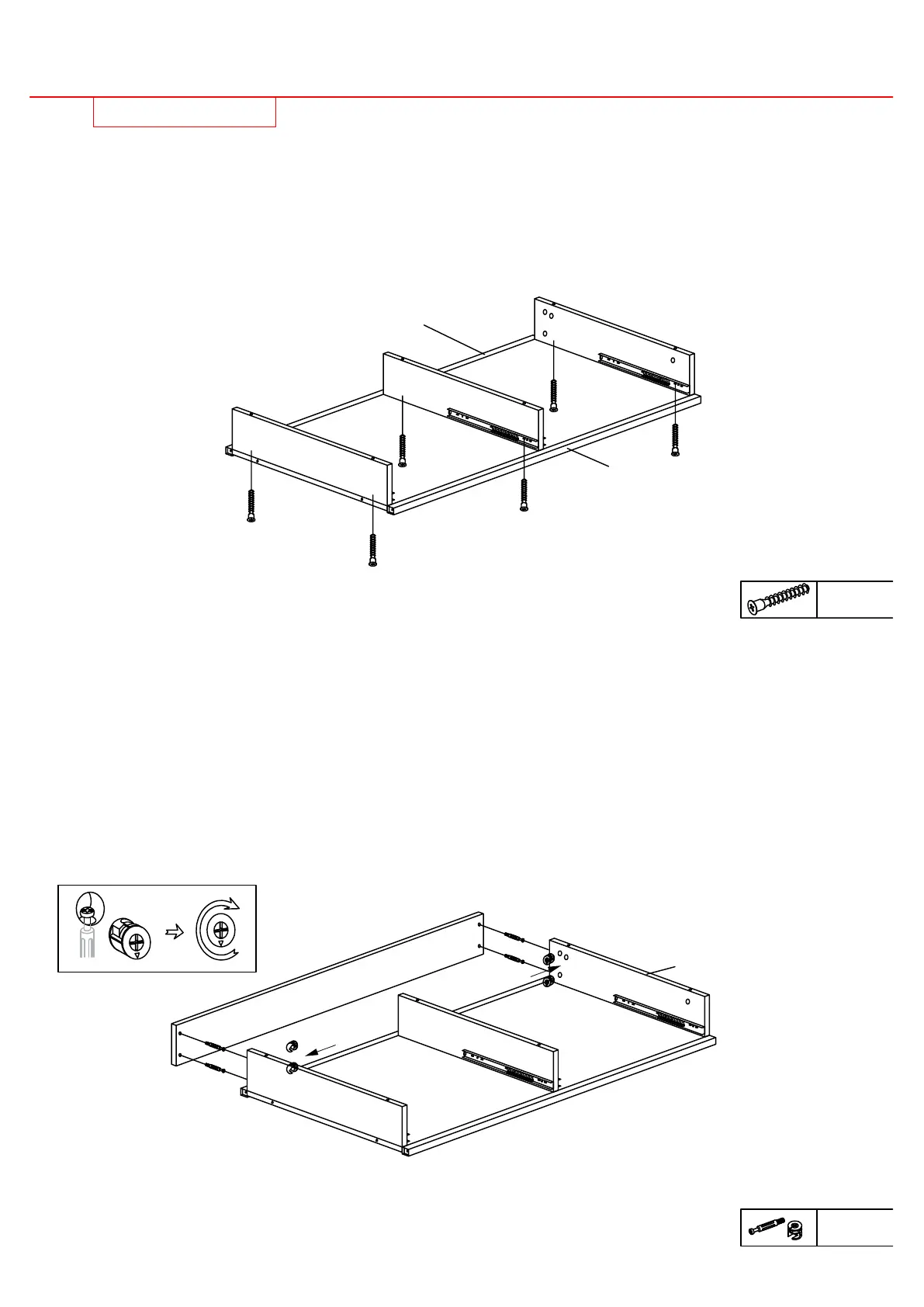

Attach left drawer board(6),middle drawer board(7),right drawer board(8) to
part from STEP 2 using bolts(J),make sure drawer rollers are close to the side
of part(3).
J×6
Attach board(5) into part from STEP 3 by aligning the bolts and cams(A).
First,screw four bolts(A1) into board(5) and make sure the bolts are tighten
enough.Second,attach board(5) into part from STEP 3,insert four cams(A2)
into part(6)(8),make sure the arrows are facing the smaller holes which the
bolts go into,with a screwdriver turn the cams about 1/2 turn clockwise to lock
into place.CAUTION: Do not overtighten cams.
