3 Flush Mounting
3.1 Flush Mount 2-Gang Double-Depth Backbox - TA-2
L It is recommended to utilize backboxes with weep holes at the bottom.

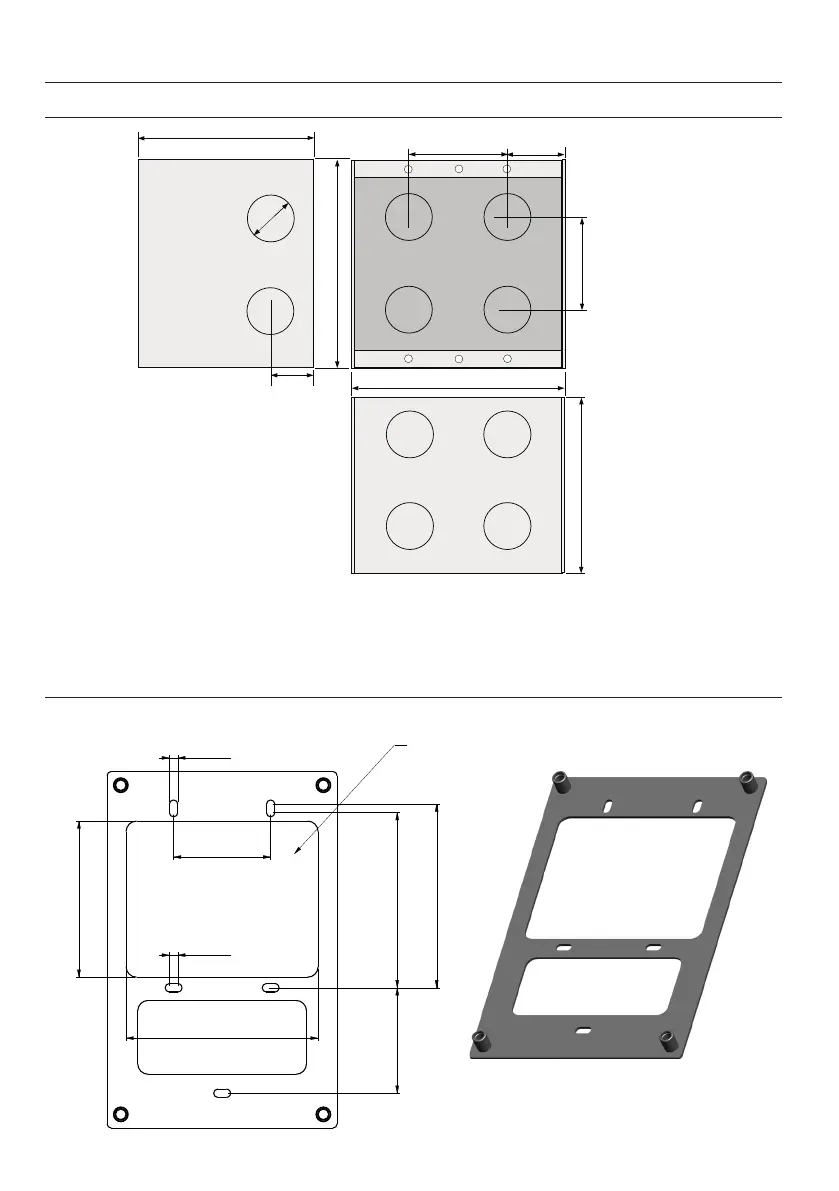

3.2 Flush Mount Bracket - TA-5
L The TA-5 Bracket is mandatory for flush mounting.
96 mm / 3.78?
48 mm
25 mm
23 mm
89 mm / 3.50?
89 mm / 3.50?
96 mm / 3.78?
46 mm
SIDE
SIDE
22 mm
1.81?
0.98?
0.90?
0.87?
1.89?
83 mm
87 mm
46 mm
50 mm
4 mm
4 mm
74 mm
91 mm
Fits US 2-GANG electrical boxes.
Recommended screw diameter: up to M4 (5/32")
Use screw recommended by back box manufacurer.
CUTOUT
0.16”
1.81”
0.16”
3.58”
1.97”
3.42”
3.27”
2.91”
