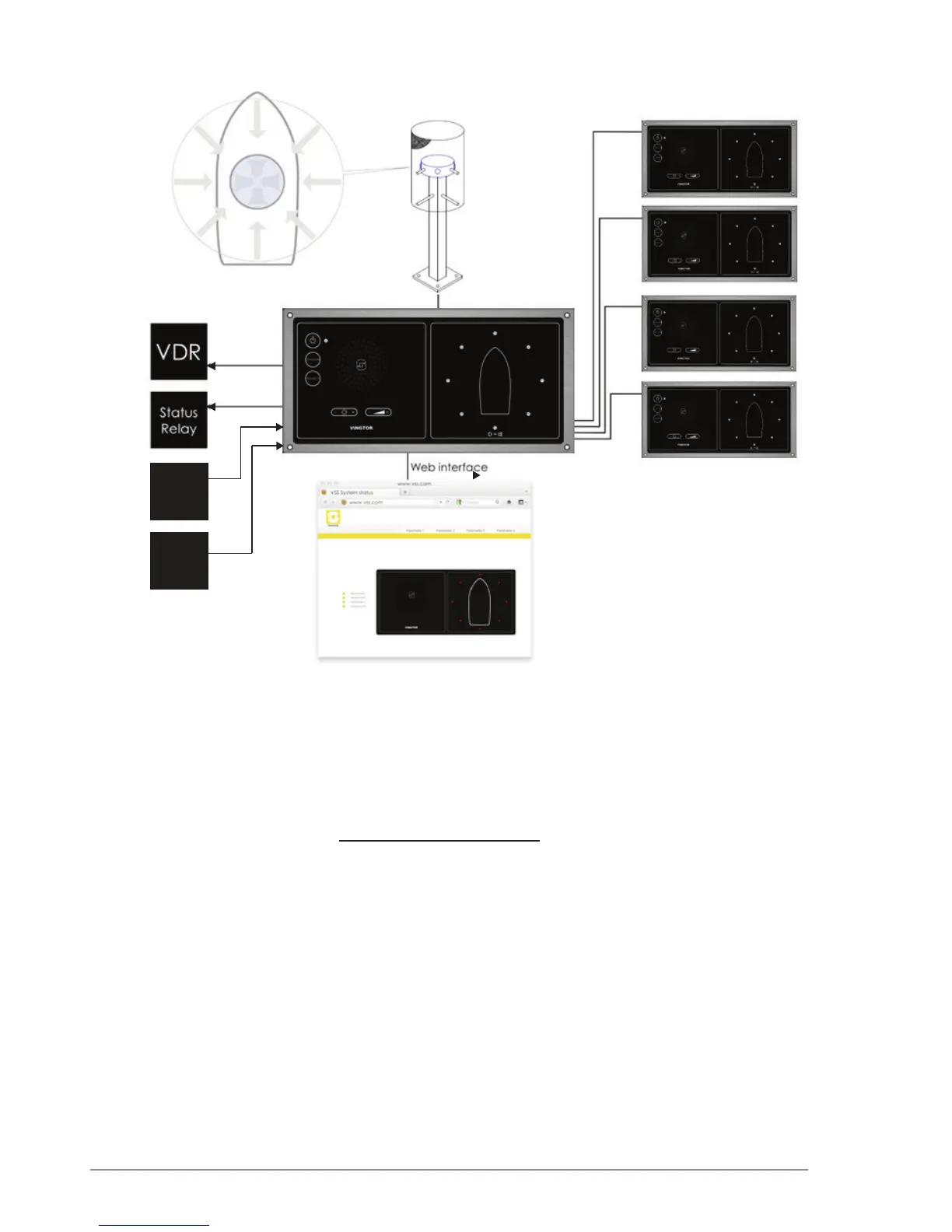

1.4 System Drawing
All systems will consist of at least a master panel and a microphone
unit.
The master panel will indicate the horn signal by turning on the
corresponding LED for direction, and outputting the DSP ltered horn
signal into the speaker.
Connections to master panel
● Microphone unit
● VDR
● Status relay output
● Typhoon/foghorn mute input
● Public Address mute input
● Web site
● Slave panels
It is possible to connect up to four slave panels to the master panel.
Slave panels will, from the operator’s point of view, operate as
master panel with access to the same keys and functionalities.
