VSP 12 Way Batteryless Telephone System
Technical Manual
1 General Description
1.1 System
The VSP Amplied Batteryless Telephone System is designed for
safe, loud and clear communication, and as a replacement for the
conventional Sound Powered Telephones.
The conventional facilities are retained and a low power consumption
amplier with capacitor-battery ensures excellent communication.
Through the use of dynamic microphone- and receiver-inserts, speech
and hearing levels that are 4 times louder can be obtained as compared
to the Sound Powered Telephones.
The VSP system is independent of the vessel’s power supply and fullls
the demands for emergency communication between vital locations
onboard.
The VSP system described in this manual is a system comprising up to
12 main stations with selector switches for selective calling between all
connected stations. The VSP system can also be connected to a 24V
DC power supply and work as a Common Battery Telephone System.

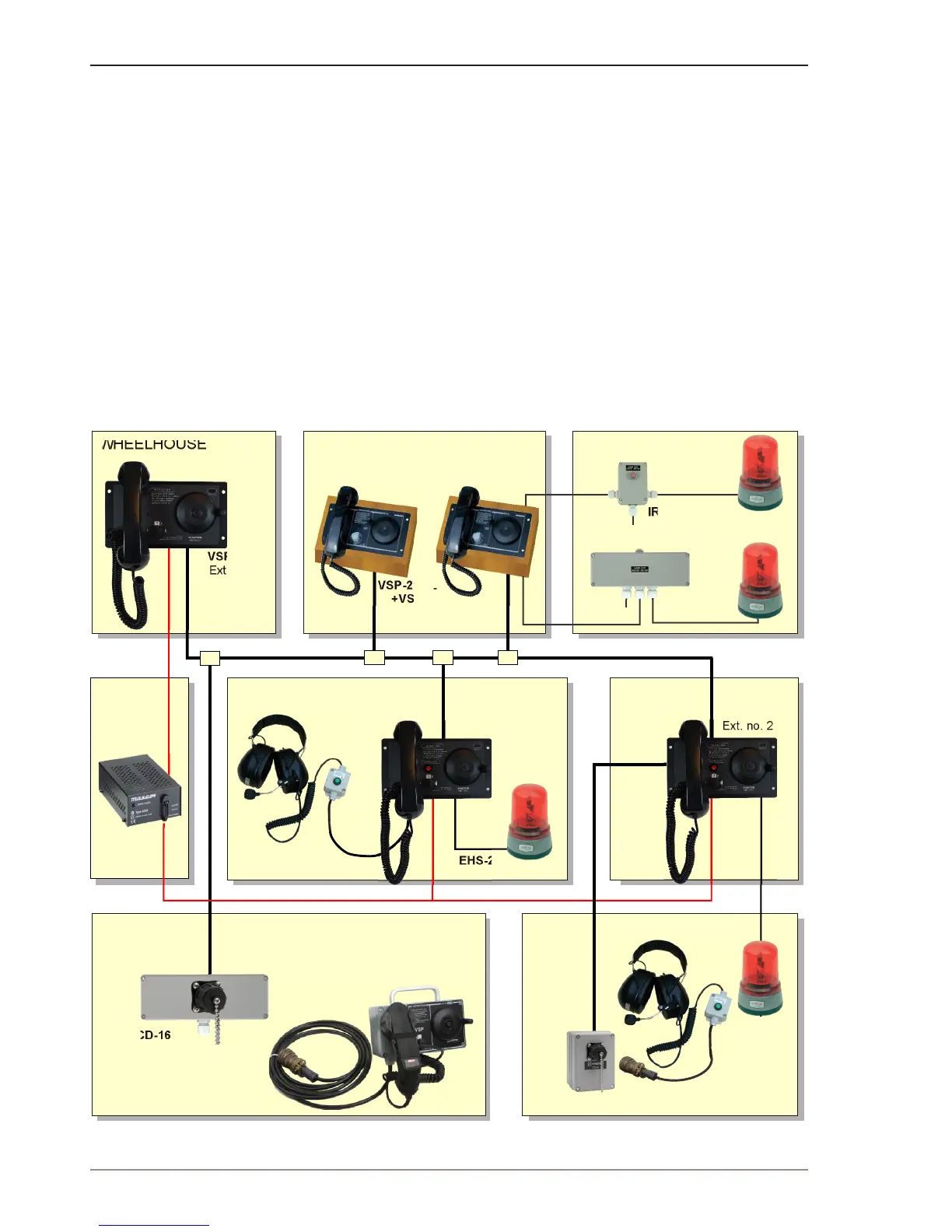

Figure 1: System Conguration Example
WHEELHOUSE CORRIDOR
VSP-211-L
ACCOMMODATIONS
VSP-213-L
+VSPK
VSP-223-L
IRR-24
IRR-220
ENGINE ROOM
EHS-24
EHS-24
EHS-220
EHS-24
VSP-36-PEL
VSP-36-PELP
STEERING GEAR
ENGINE
CONTROL
ROOM
CD-4
24 VDC
VSP-223-L
Subscriber lines
Ext. no. 1
Ext. no. 4 Ext. no. 5
Ext. no. 2
Ext. no. 3
(Ext. no. 2)
CAPTAIN'S CABIN
CHIEF ENG. CABIN
OPEN DECK
220 VAC
24 VDC
CD-16
VSP-122P
Ext. no. 6
