3. REFRIGERATING COOLING SYSTEM

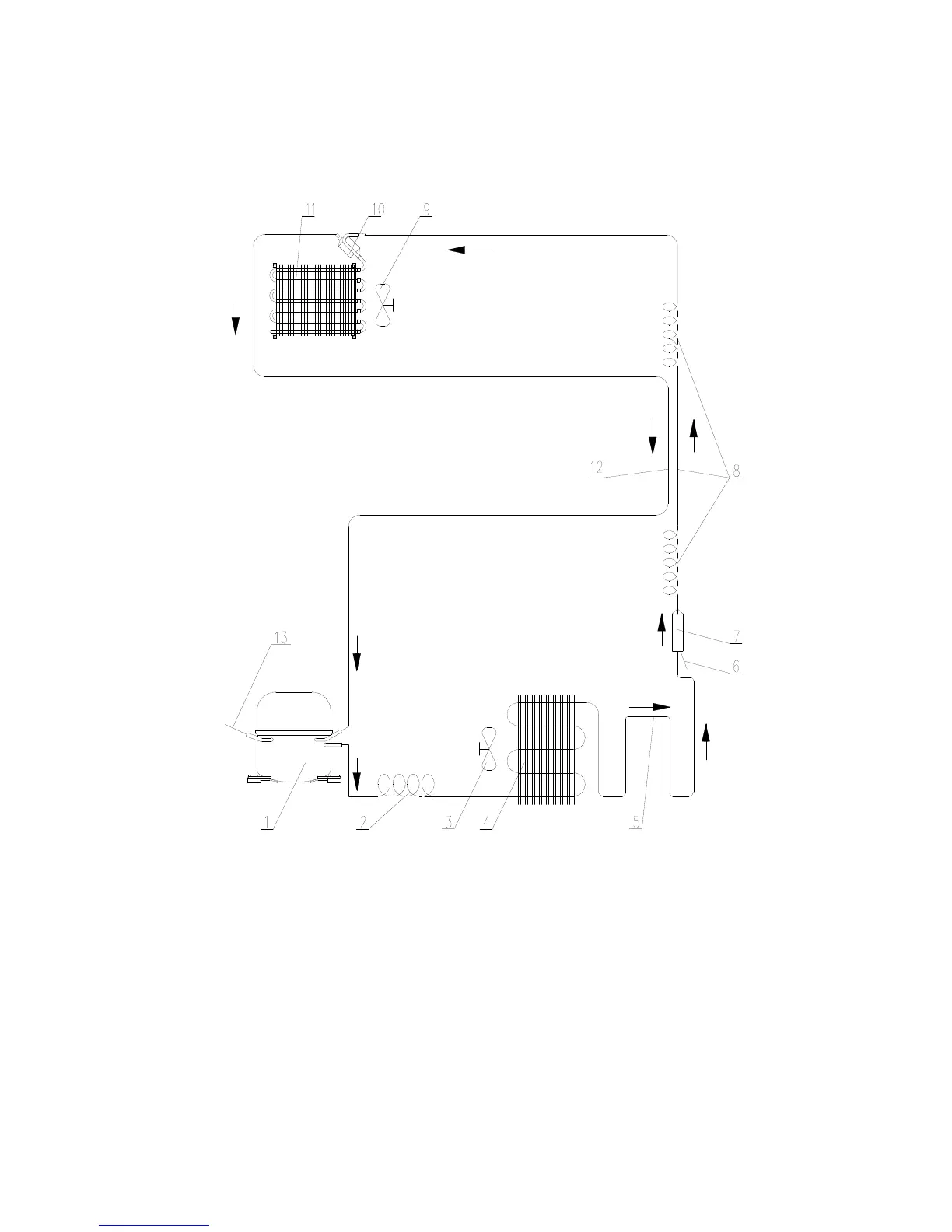

3.1 REFRIGERANT CYCLE DIAGRAM
3.1.1 For models with Without Solenoid Valve
1. Compressor
2. Spiral Tube (Not available for some
models)
3. Condenser Fan (Not available for
some models)
4. Condenser
5. Hot Pipe
6. Process Tube
7. Filter Drier
8. Capillary
9. Evaporator Fan
10. Accumulator
11. Evaporator
12. Suction Tube
13. Process Tube
