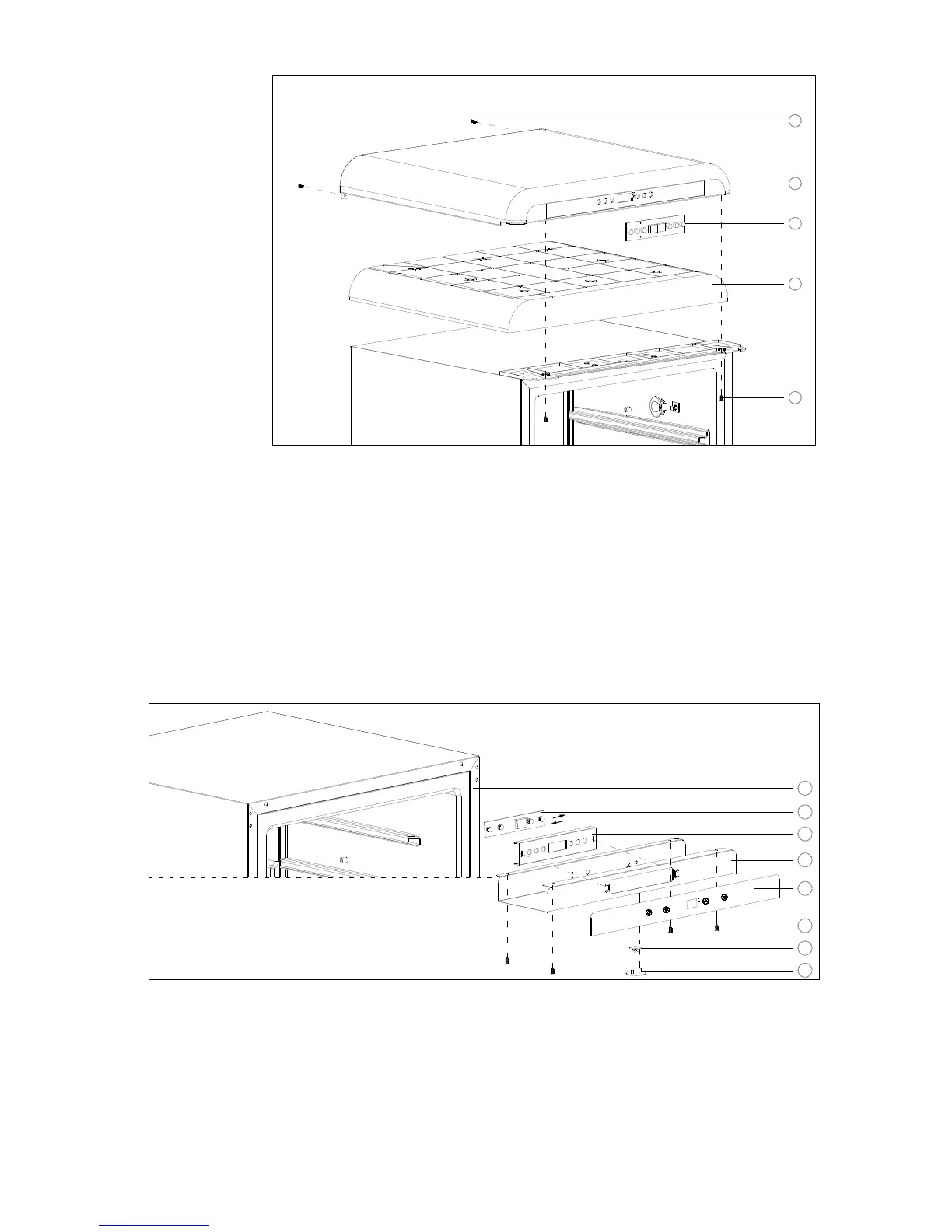

7.1B REPLACING THE CONTROL PCB (ONLY FOR SINGLE ZONE MODELS WITH
CONTROL PCB AFTER THE DOOR)
1. Remove all shelves.
2. Unscrew the four screws
○
6 that secure the PCB box
○
4 to the top of cabinet
○
1.
3. Pull down to remove the PCB box carefully.
4. Disconnect the cable from the control PCB
○
2.
5. Dismantle the PCB supporter
○
3 from the PCB box.
6. Then carefully remove the control PCB from the PCB supporter. Now you can replace the
control PCB.
c
F
6
5
4
3
2
1
7
8
7.1C REPLACING THE CONTROL PCB AND POWER PCB (ONLY FOR VC20S, VC33S &
VC40D)
1. Remove all shelves.
2. Unscrew the four screws
○
7 that secure the PCB box
○
5 to the top of cabinet
○
1.
3. Pull down to remove the PCB box carefully.
4. Disconnect the cable/wires from the Power PCB
○
4.
5. Dismantle the PCB supporter
○
3 from the PCB box.
