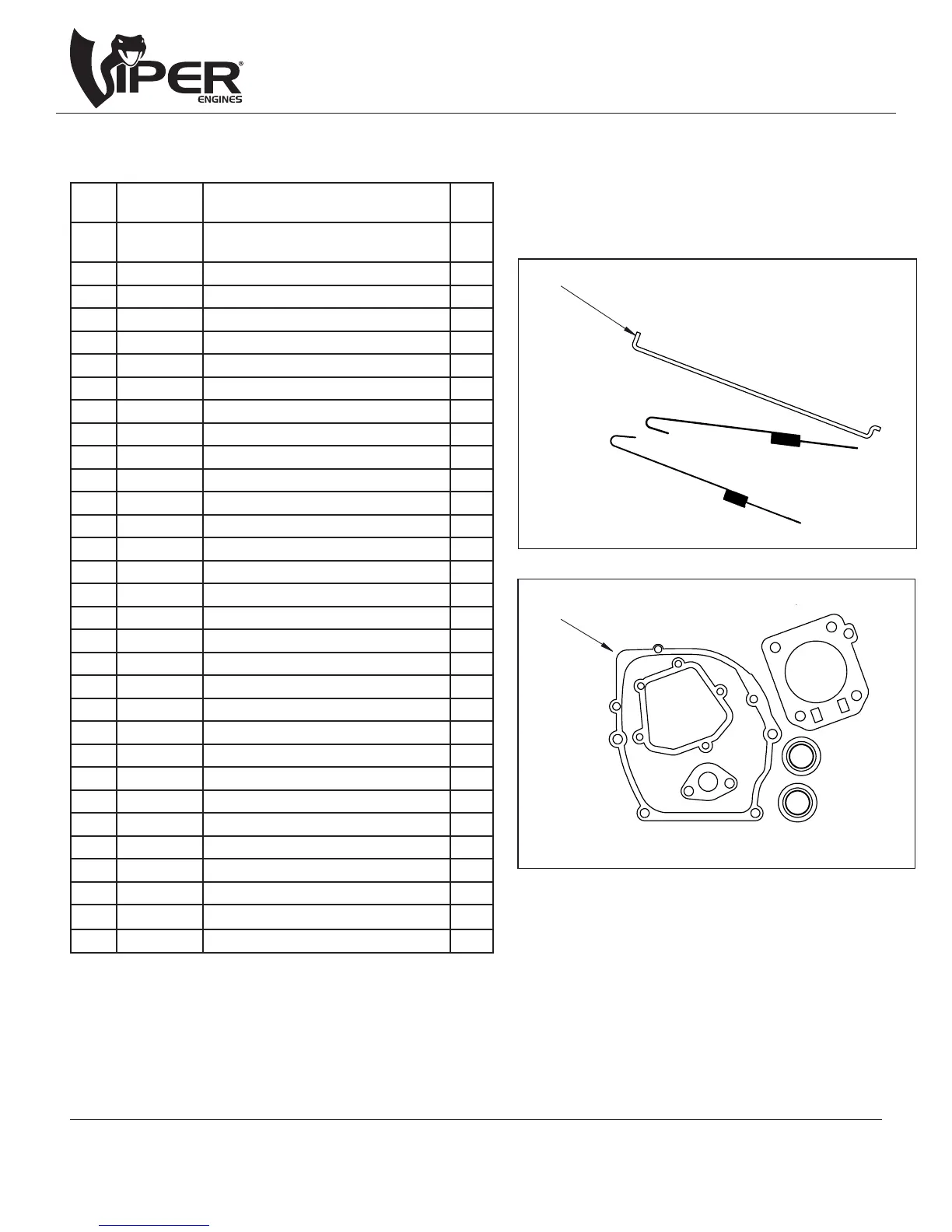

196cc VIPER ENGINE PARTS LIST
REF
NO.
PART
NO. DESCRIPTION Q T Y.
1 913446 RECOIL STARTER ASSEMBLY
INCLUDES PULLSTART HANDLE
1
2 64237 FAN HOOD ASSEMBLY 1
3 913435 ENGINE SWITCH 1
4 64275 STARTER CUP 1
5 64276 FAN, FLYWHEEL 1
6 64277*** FLYWHEEL, MANUAL START 1
64782*** FLYWHEEL, ELECTRIC START 1
7 64684 IGNITION COIL ASSEMBLY 1
8 64207 STUD BOLT, M6 X 113 2
9 64305* GASKET, INLET 1
10 64306 CONNECTING BLOCK 1
11 64307* GASKET, CARBURETOR 1
12 64308 CARBURETOR ASSEMBLY 1
13 64309* GASKET, AIR CLEANER 1
14 642812 AIR FILTER ELEMENT 1
15 64278 WING NUT 2
16 64685 AIR CLEANER KIT 1
17 64157 WASHER 2
18 64156 OIL DRAIN PLUG 2
19 913328 DIPSTICK ASSEMBLY 2
20 64212 SPARK PLUG 1
21 64294** GASKET, EXHAUST 1
22 64686 MUFFLER KIT 1
23 913420 FUEL TANK SHOCK PAD 2
24 64296 FUEL LINE ASSEMBLY 1
25 64144 FUEL FILTER 1
26 64304 GAS TANK 1
27 64147 FUEL STRAINER CUP 1
28 6327 GAS CAP W/PACKING RING 1
29 64780 GOVERNOR SPRING KIT 1
30 64779 ENGINE GASKET KIT 1
All weights, specications and features are approximate and are sub-
ject to change without notice. Due to continuous product improve-
ments, product images may not be exact items.
* These parts are only available as the carburetor gasket kit (P/N 64781).
** This part only available in the engine gasket kit (P/N 64779).
*** Ask customer service for assistance when choosing ywheel.
29
30
