Operator's Manual
Viper Engine, 159cc
Check for parts online at www.ardisam.com or call 800-345-6007 M-F 8-5
22
Operator's Manual
Viper Engine, 159cc
Check for parts online at www.ardisam.com or call 800-345-6007 M-F 8-5

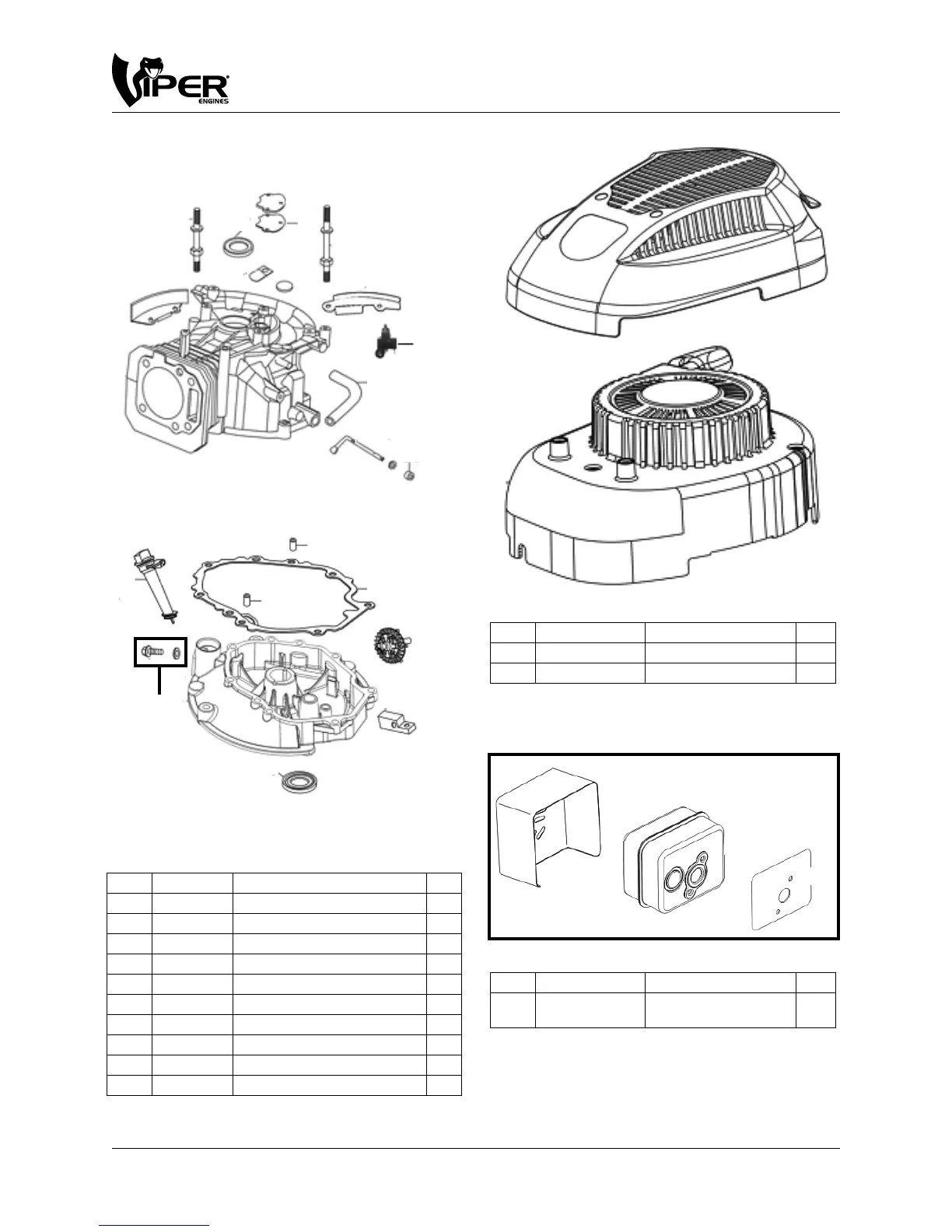

KEY # PART # DESCRIPTION QTY.
1 60005073 OIL SEAL, 25X38X7 1
2 60005083 OIL FILL TUBE ASSEMBLY 1
3 600050114 DRAIN BOLT WITH WASHER 1
4 60005074 BREATHER GASKET 1
5 60005076 BREATHER TUBE 1
6 60005075 ENGINE STOP SWITCH ASSEMBLY 1
7 60005077 OIL SEAL, 6X11X4 1
8 60005079 CRANK CASE COVER GASKET 1
9 60005078 OIL SEAL 1
10 60005080 PIN DOWEL 2
KEY # PART # DESCRIPTION QTY.
11 60005085 RECOIL HOUSING 1
12 60005084 RECOIL ASSEMBLY 1
CRANKCASE/CRANKCASE COVER
STARTER
SERVICE PARTS
22
11
12
1
4
5
6
7
MUFFLER
KEY # PART # DESCRIPTION QTY.
13 600050115 KIT, MUFFLER WITH
COVER AND SHIELD
1
2
8
9
10
10
3
13
