R80V, R100 ENGINES
Get parts online at www.GetEarthquake.com or Call 800-345-6007 M-F 8-5 CST
OIL FILL PORT
& DIPSTICK
OIL DRAIN PLUG
LOWER OIL LEVEL
UPPER OIL LEVEL

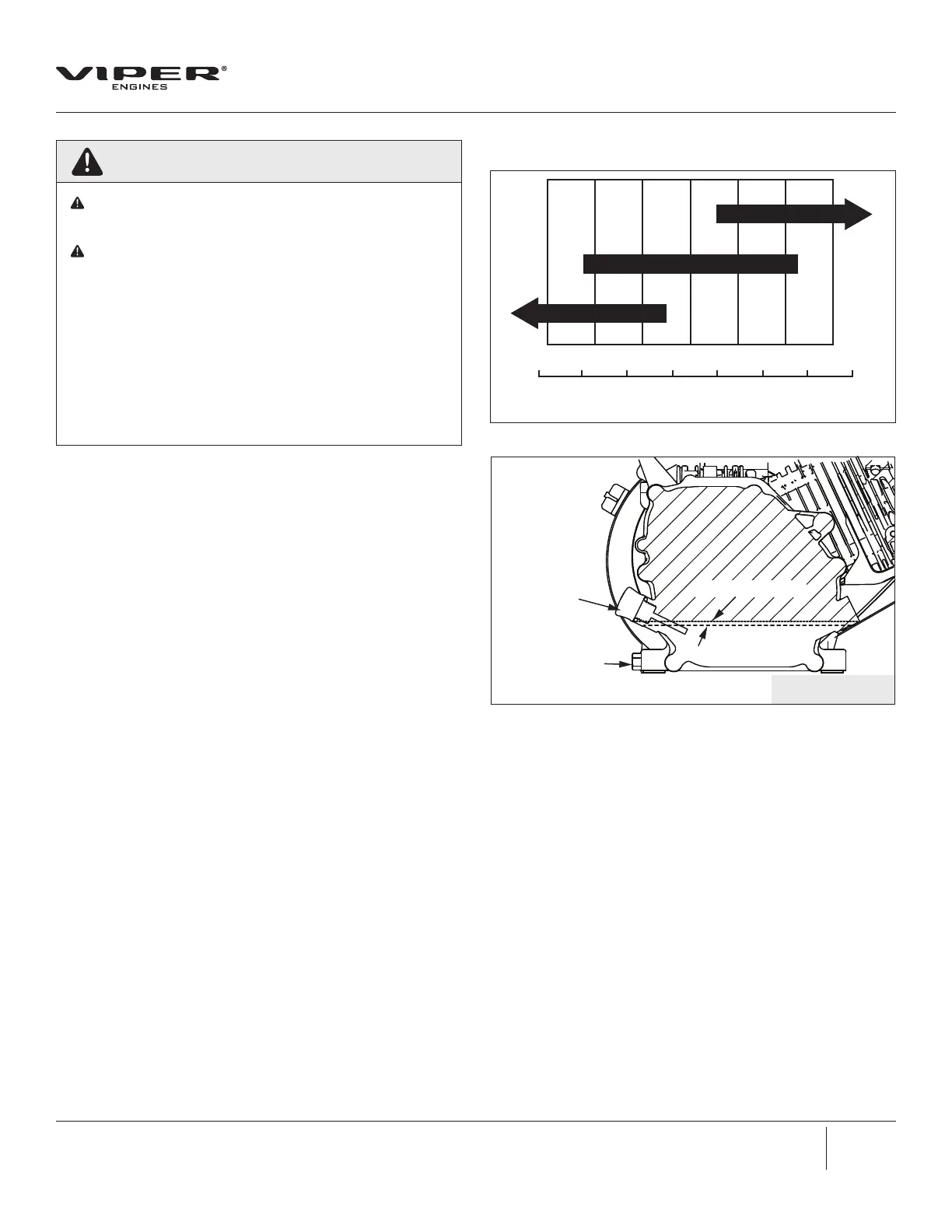

CHECKING AND ADDING OIL
Be sure the engine is located on a level surface before
checking or relling oil.
1. Clean around oil ll area and drain plug. SEE FIGURE 2.
2. Unscrew dipstick and wipe clean with cloth. SEE FIGURE 2.
3. Reinsert and tighten dipstick.
4. Unscrew and check dipstick. If no oil shows on the dipstick,
rell to the top thread of the oil ll oil.
5. Change oil if contaminated.
NOTE: Viper engine oil may be put in through the oil
dipstick hole or through the oil ll plug opening. If an oil
plug is present, loosen screw and ll oil until oil level is
even with top thread in plug hole.
CHOOSING OIL TYPE
30
10W-30
5W-30
-20 0 20 40 60 80 100 °F
-30 -20 -10 0 10 20 30 40 °C
Environment Temperature
SAE
WARNING
ENGINE IS SHIPPED FROM FACTORY WITHOUT OIL. YOU
MUST ADD ENGINE OIL BEFORE STARTING ENGINE.
ENGINE OIL IS HAZARDOUS TO YOUR HEALTH. DISPOSE
OF OIL APPROPRIATELY. USE A SAFE DISPOSAL/RECYCLING
CENTER.
• ALWAYS PERFORM A PRE-OPERATION INSPECTION
BEFORE EACH OPERATION AND CORRECT ANY PROBLEM.
• IMPROPER MAINTENANCE OF THIS ENGINE, OR FAILURE
TO CORRECT A PROBLEM BEFORE OPERATION, CAN
CAUSE A MALFUNCTION.
• SERIOUS INJURY OR DEATH CAN OCCUR IF THIS WARNING
IS NOT COMPLIED WITH.
