Viptela vEdge 100wm Series User Manual

Ports and Connectors
The vEdge 100wm router supports three types of ports:
• RJ-45 Ethernet ports
• USB port
• USB serial console port.
RJ-45 Ethernet Ports
The vEdge 100wm router has five built-in RJ-45 Ethernet ports. These ports support 10/100/1000 Mbps and
are numbered 0 through 4. Port 0 supports PoE capability.
Figure 1 provides the pinout information for the RJ-45 ports. The RJ-45 ports comply with the 801 standards.

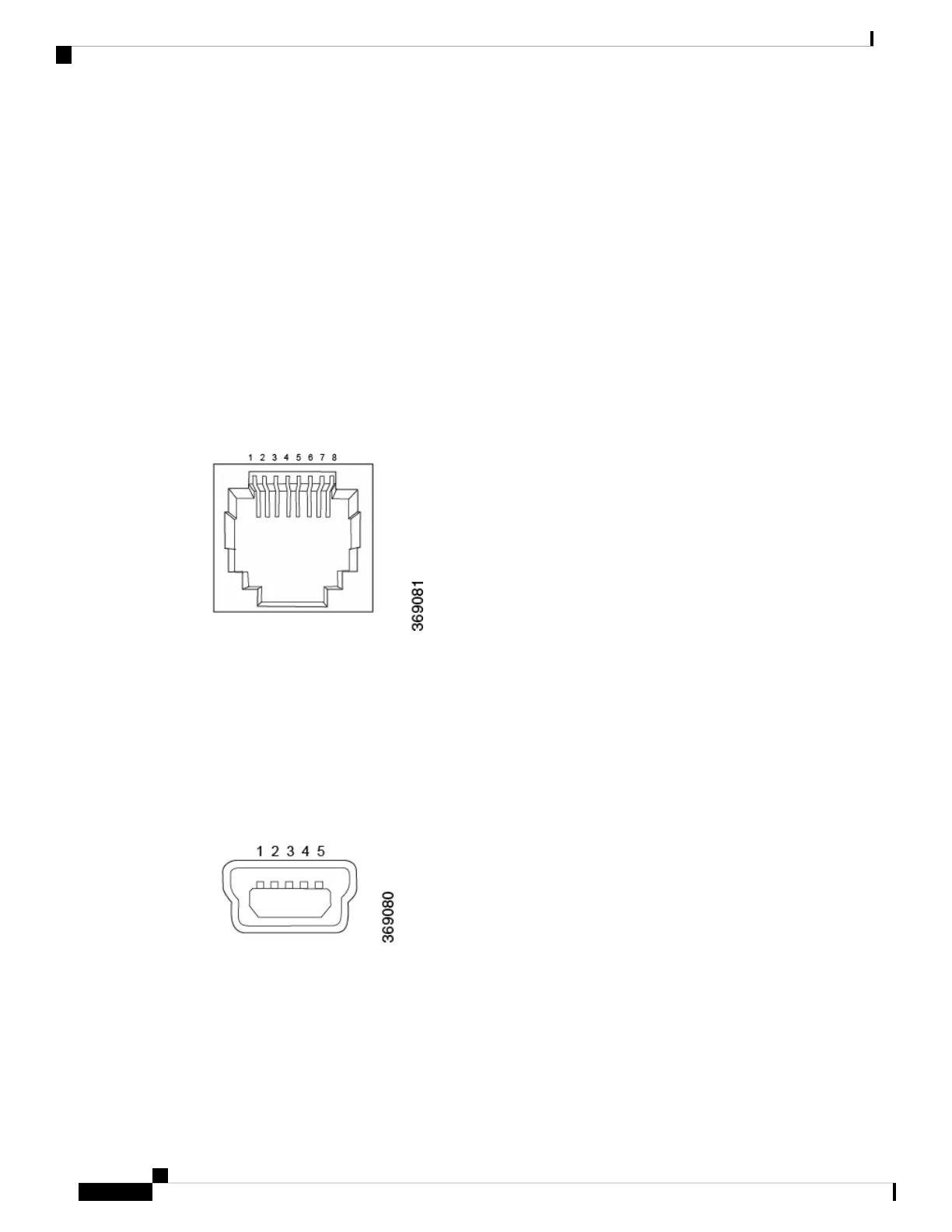

Figure 1: RJ-45 Ports Pinout Information
USB Port
The vEdge 100wm router has one USB host port with a type A connector. The USB port supports USB 3.0
speeds.
Console Port
The vEdge 100wm console port is a serial port and is accessible via a USB Mini-B connector. See Figure 2.
Figure 2: USB Mini-B Connector
A USB Type-A to Mini-B connector cable ships with the vEdge 100wm router as standard accessory for
console port connection.
vEdge 100wm Router
10
vEdge 100wm Router
Ports and Connectors
