Virtue ONE & TWO Owner’s Manual
http://www.virtueaudio.com Page 8 of 11

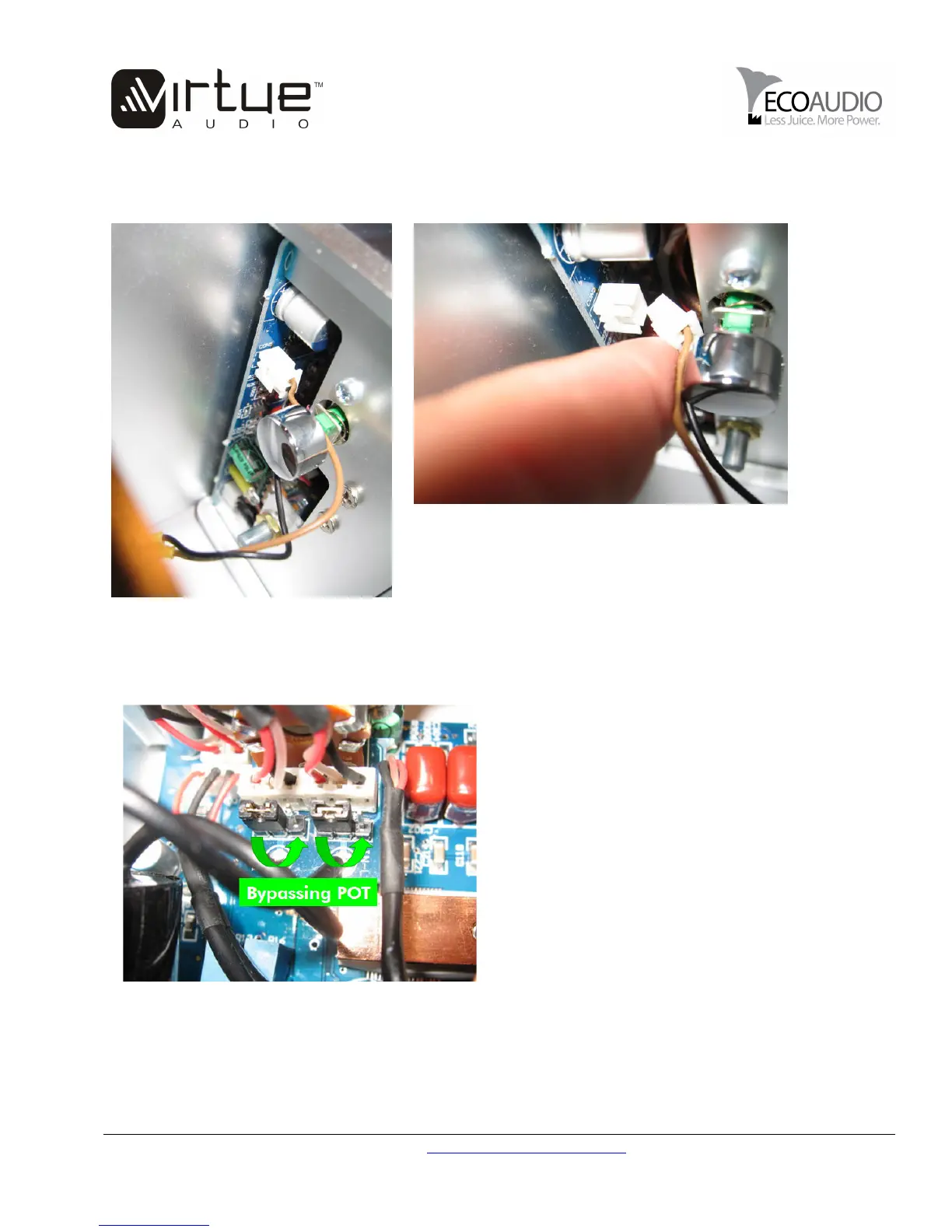

On the front side of the unit, you will find the LED tether. Using your fingers or a needle-nose pliers, pull it
up from the board.
Turn the unit into a power amplifier
Turn the unit into a power amplifierTurn the unit into a power amplifier
Turn the unit into a power amplifier
If you are using a pre-amplifier, there is no need to use the internal attenuator (POT) on the Virtue amp.
Customers have found that by taking the POT out of the circuit, sound quality improves. This job requires
moving the POT bypass jumpers.
The volume control bypass jumpers are located on the
end of the circuit board behind the POT. On most
models of the virtue amp the jumpers will be
underneath the board. A small needle nose plier will
make the job easy. Simply move the jumpers to the
position shown in the photo above.* If yo have not yet
glued the volume knob in place, the job can be made
easier by removing the 8mm nut, pulling the POT back
and moving the jumpers. Then reinstall the pot.
*We recommend trying the volume in full open position
with your preamp first, to be certain this works well with
your system.
