12.1 Cleaning of edge guide A (Fig. 18)

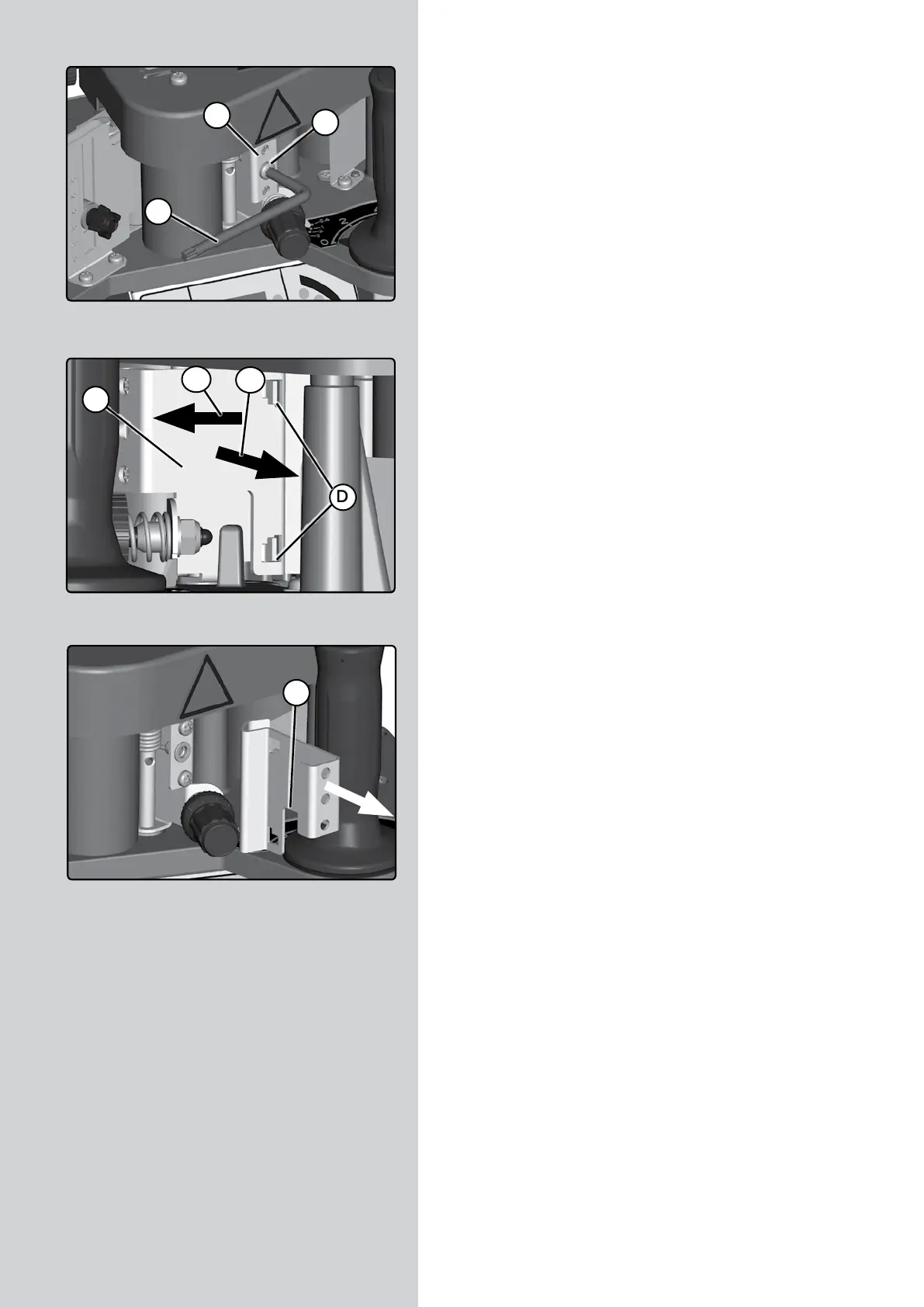

If you do need to clean edge guide A (Fig. 18-1), remove screw
B (Fig. 18-1) with the help of service key C. First, pull edge
guide A (Fig. 18-2) until it comes free of the stops D (Fig. 18-
2). Second, move guide A to the right (Fig. 18-2) and pull it
outwards (Fig. 18-3). Clean the guide and replace it following
these steps in reverse.
(Figure 18-1)
(Figure 18-2)
(Figure 18-3)
