VISIO E70-C3 - Page 5

4

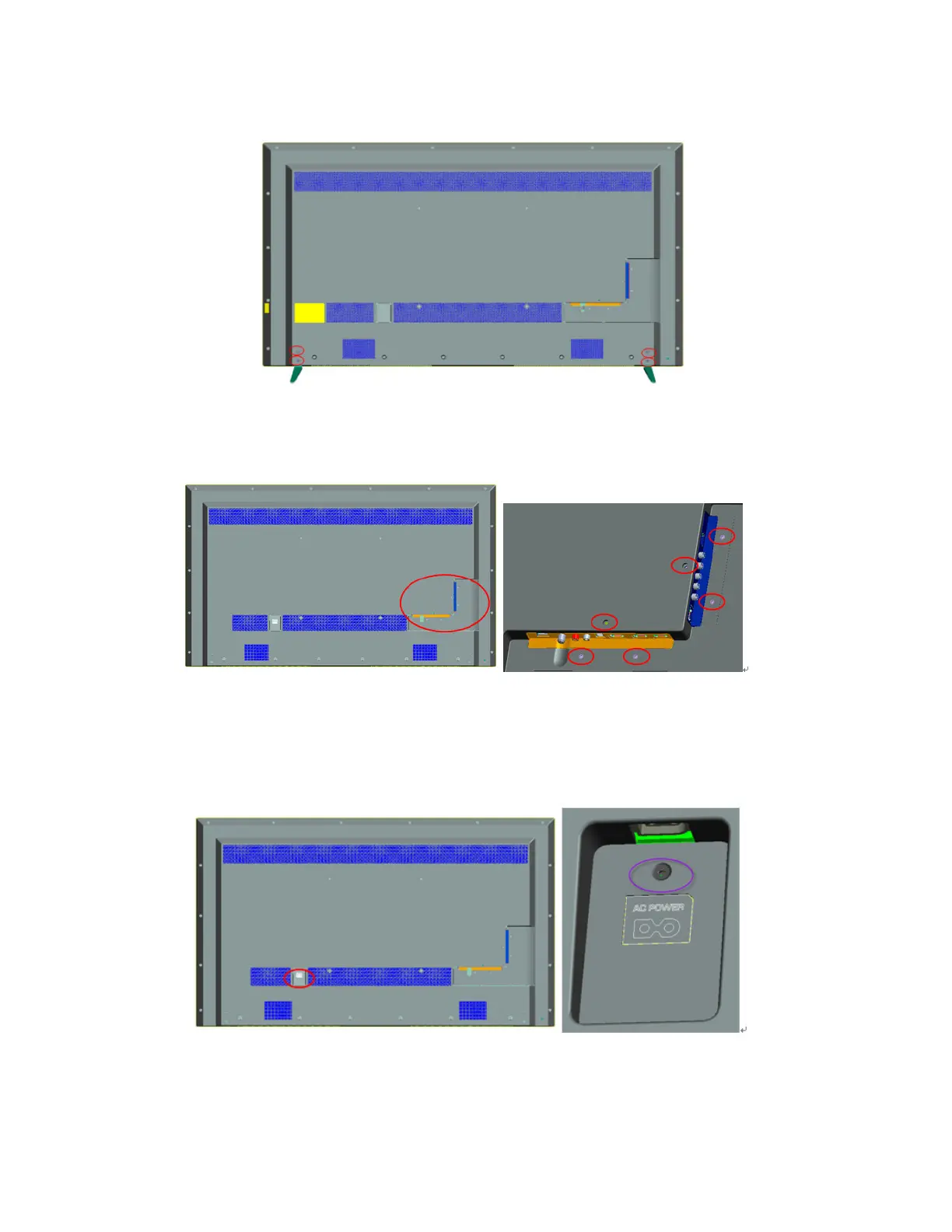

1. Remove the 4 crews as Fig.3 and pull out the FEET ASSY module
Fig.3
Step 2. Remove the REAR COVER Assy.
1. Remove the 5screws, around the I/O cover area as Fig.4.
Fig.4
2. Remove the 1 screw at the AC socket area as Fig.5.
Fig.5
