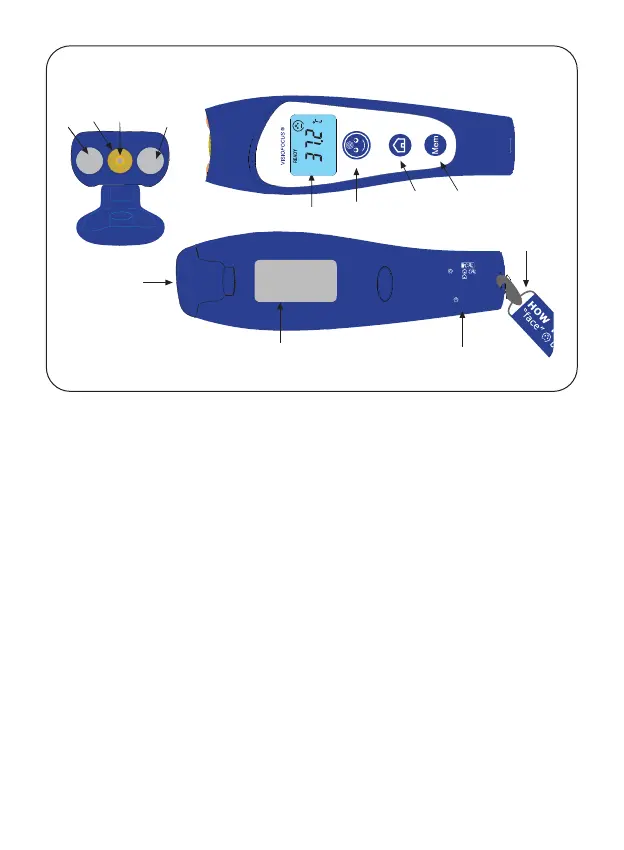

Fig. 1
1. Aiming light
2. Waveguide
3. Sensor (at the bottom of the waveguide)
4. Aiming light
5. LCD display
6. FACE button for forehead temperature readings
7. HOME button for other readings
8. MEMORY button (intended for reactivating the display backlight for 3
seconds, showing the last 9 measurements - if “Mem” is enabled - and
to changing the settings/modes)
9. Protective cap
10. Label with serial number
11. Battery door (4 x AAA) with brief instructions
12. Special lanyard with additional brief instructions - to be worn around
the neck
CALIBRATE VISIOFOCUS:
at start or at room change or if appears
press together and release and ; appears.
Within 10 sec open the cap, press and focus the
projection on an internal wall far from windows
and heat or cold sources; release and wait for the
projection to flash slowly. Ready for measurements
in the middle of forehead with .
1
2
3
4
