Vision TC-HDMIWM User Manual

9
TC-HDMIWM_manual_en.doc

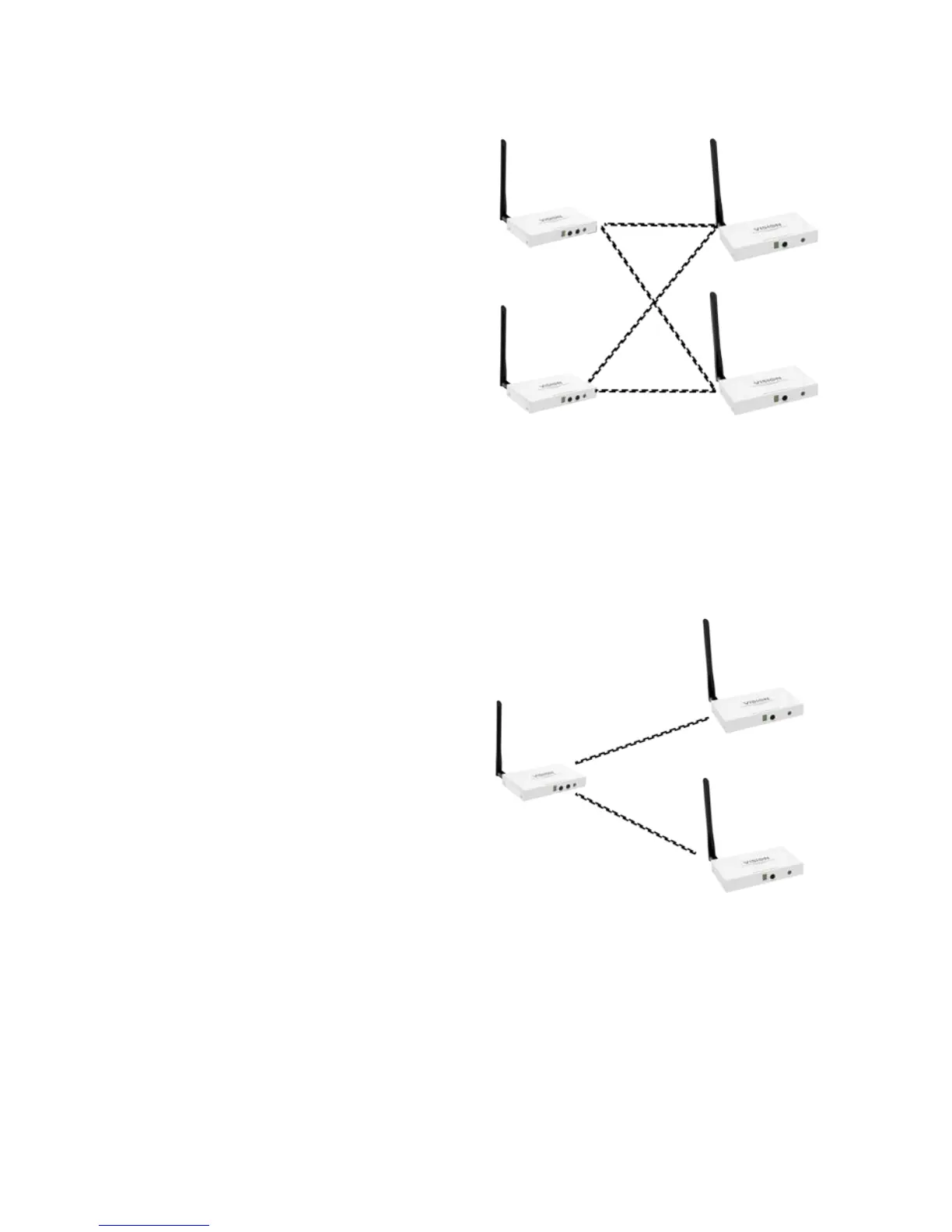

MATRIX
1. Connect sources to Tx, and displays to
Rx
2. Set each Tx to different channels. You
cannot have two Tx sharing same
channel.
3. Adjust channel on each Rx to switch
which source is shown.
The maximum number of devices in a matrix
system is 2 x 2.
Because you can use 10 x Tx simultaneously you could have 5 discrete matrix systems, or a
blend of Matrix, Distribution, and Switching systems running at the same time.
DISTRIBUTION
Shows content from one source on two
displays.
1. Connect source to Tx, and displays to
Rxs
2. Set them all to the same channel.
Because you can use 10 x Tx simultaneously you could have 10 discrete Distribution systems, or
a blend of Matrix, Distribution, and Switching systems running at the same time.

Vision TC-HDMIWM Specifications

General

Brand	Vision
Model	TC-HDMIWM
Category	Matrix Switcher
Language	English
