13
KEYPAD/READER

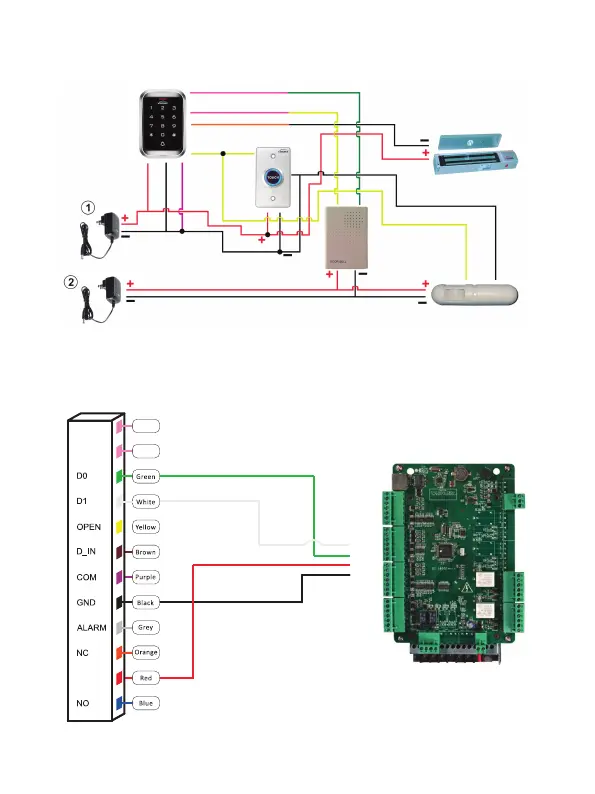

11.4 Connection with Accessories: Doorbell, Exit button, and PIR
11.5 Connection with Access Control Panel
BELL_B
BELL_A
+12V
P i n k
P i n k
D1
D0
12V
GND
Power Supply
Electromagnetic Lock
Exit
Button
Keypad/Reader
Power Supply
COM
NO
NC
PIR
COM
Door Bell
PINK WIRE FROM
KEYPAD/READER (BELL B)
GREEN WIRE FROM
DOOR BELL
YELLOW WIRE
YELLOW
WIRE
ORANGE WIRE
PINK WIRE FROM
KEYPAD/READER (BELL A)
PURPLE WIRE
FROM KEYPAD/
READER
