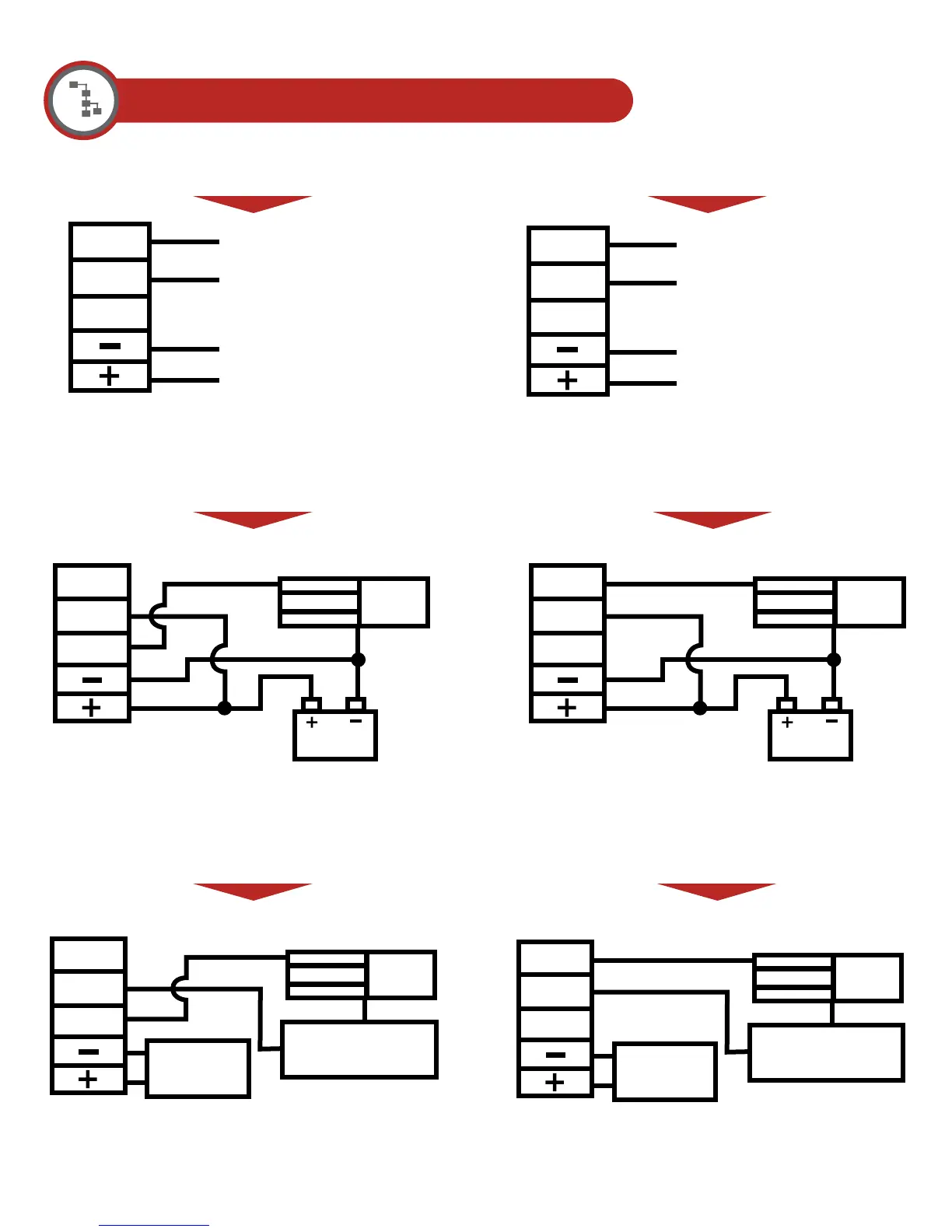

DIFFERENT TYPE OF APPLICATION
Positive Output
NO
COM
NC
Positive Power Sources
Positive Power Output
Power
NO
COM
NC
Negative Power Sources
Negative Power Output
Power
Negative Output
Typical N.C. Application Typical N.O. Application
NO
COM
NC
12VDC
Magnetic locks
NO
COM
NC
12VDC
Magnetic locks
N.C. Application with independent
Power Sources
N.O. Application with independent
Power Sources
NO
COM
NC
Magnetic locks
AC POWER
SOURCES
DC POWER
SOURCES
NO
COM
NC
Magnetic locks
AC POWER
SOURCES
DC POWER
SOURCES
