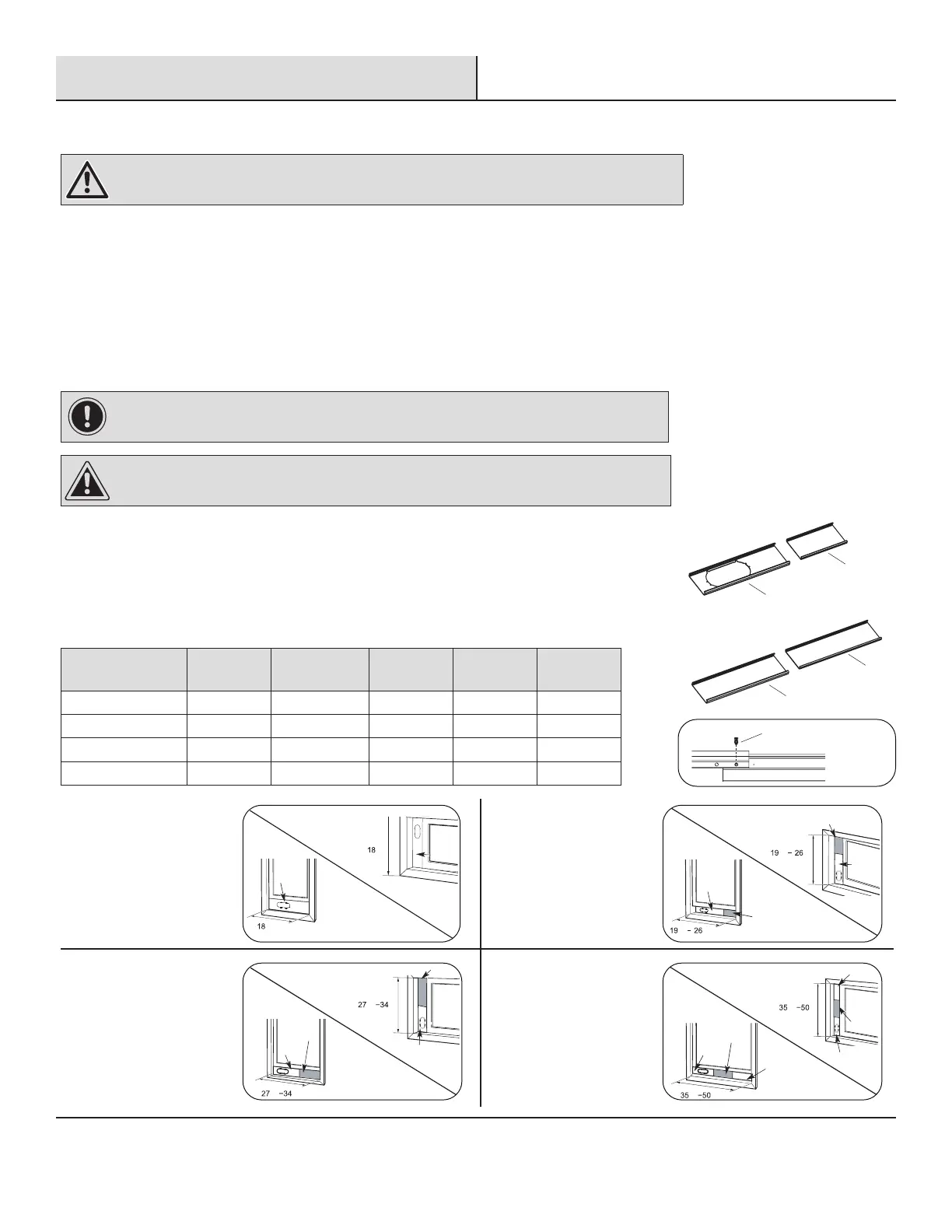

Pre-Installation (continued)
UNPACK THE AIR CONDITIONER
WARNING: Use two or more people to move and install air conditioner. Failure to do so can result in
back or other injury.
Remove Packaging Materials
□ Remove and recycle packaging materials.
□ Remove tape and glue residue from surfaces before turning on the air conditioner. Rub a small amount of liquid dish soap over the
adhesive with your ngers. Wipe with warm water and dry.
□ Do not use sharp instruments, rubbing alcohol, ammable uids, or abrasive cleaners to remove tape or glue. These products can
damage the surface of your air conditioner.
□ Handle the air conditioner gently.
IMPORTANT: Keep unit upright at least 2 hours prior to use.
CAUTION: Installation accessories are stored in the top of the carton and are required for proper
cooling performance. Please remove all accessories from packing materials before use.
WINDOW VENT PANEL AND EXTENSIONS
The window installation kit allows you to install the air conditioner in most vertical-sliding windows
18 in. to 50 in. wide, or horizontal sliding windows from 18 in. to 50 in. tall. Check your window size
and choose the t from the table. lf your window size requires more than twopanels, after adjusting
the length, please secure the panels with rivets (EE).
Panel Length /
Window Length
Panel HH
(18 in.)
Panel II
(19-11/16 in.)
Panel JJ
(18 in.)
Panel KK
(18 in.)
See
Figure...
18 in. X A
19 in. – 26 in. X X B
27 in. – 34 in. X X C
35 in. – 50 in. X X X D
Figure A
For an 18 in. window
opening, use the window
vent panel (HH) by itself.
in.
in.
HH
HH
Figure B
For window openings from
19 in. to 26 in., use the
window vent panel (HH)
and a extension panel (II).
in.
in.
in.
in.
II
II
HH
HH
Figure C
For window openings from
27 in. to 34 in., use the
window vent panel (HH)
and a extension panel (JJ).
in. in.
in. in.
HH
HH
JJ
Figure D
For window openings from
35 in. to 50 in., use the
window vent panel (HH)
and two extension panels
(KK and JJ).
in. in.
HH
KK
JJ
HH
JJ
KK
HH
II
JJ
EE
To Next Page
