www.vistacnc.com - 6 - M1 Pendant LinuxCNC Manual v. 1.0

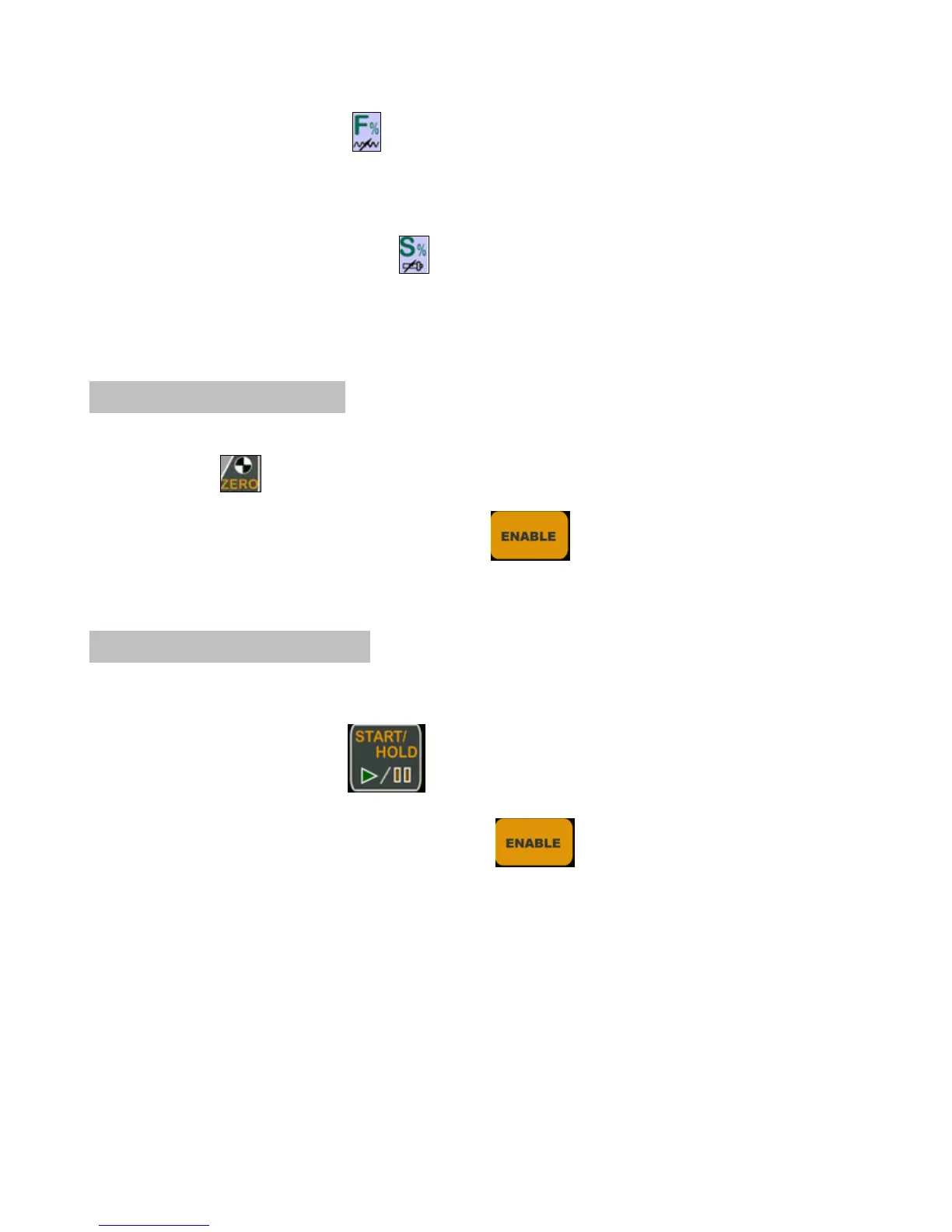

2.5 FEED OVERRATE
In F% mode, turning MPG changes current feed overridden (FO) rate.
2.6 SPINDLE OVERRATE
In S% mode, turning MPG changes current spindle speed overridden (SO) rate
.
3. Function Buttons
3.1 ZERO
While pressing and holding the Enable Button , press and release the Zero Button to
zero the currently selected axis.
4. Operation Controls
4.1 START / HOLD button :
While pressing and holding the Enable Button , press and release START/HOLD
button to RUN a program or RESUME the program if the program is in IDLE or is in PAUSE,
or PAUSE the program if the program is RUNNING.
When the program is in RUNNING state, 3 axis selection LEDs flash one by one.
When the program is in PAUSE state, all 3 axis selection LEDs flash twice in the first half
second and stop flashing in the next half second.
