www.vistacnc.com - 7 - M1 Pendant LinuxCNC Manual v. 1.0

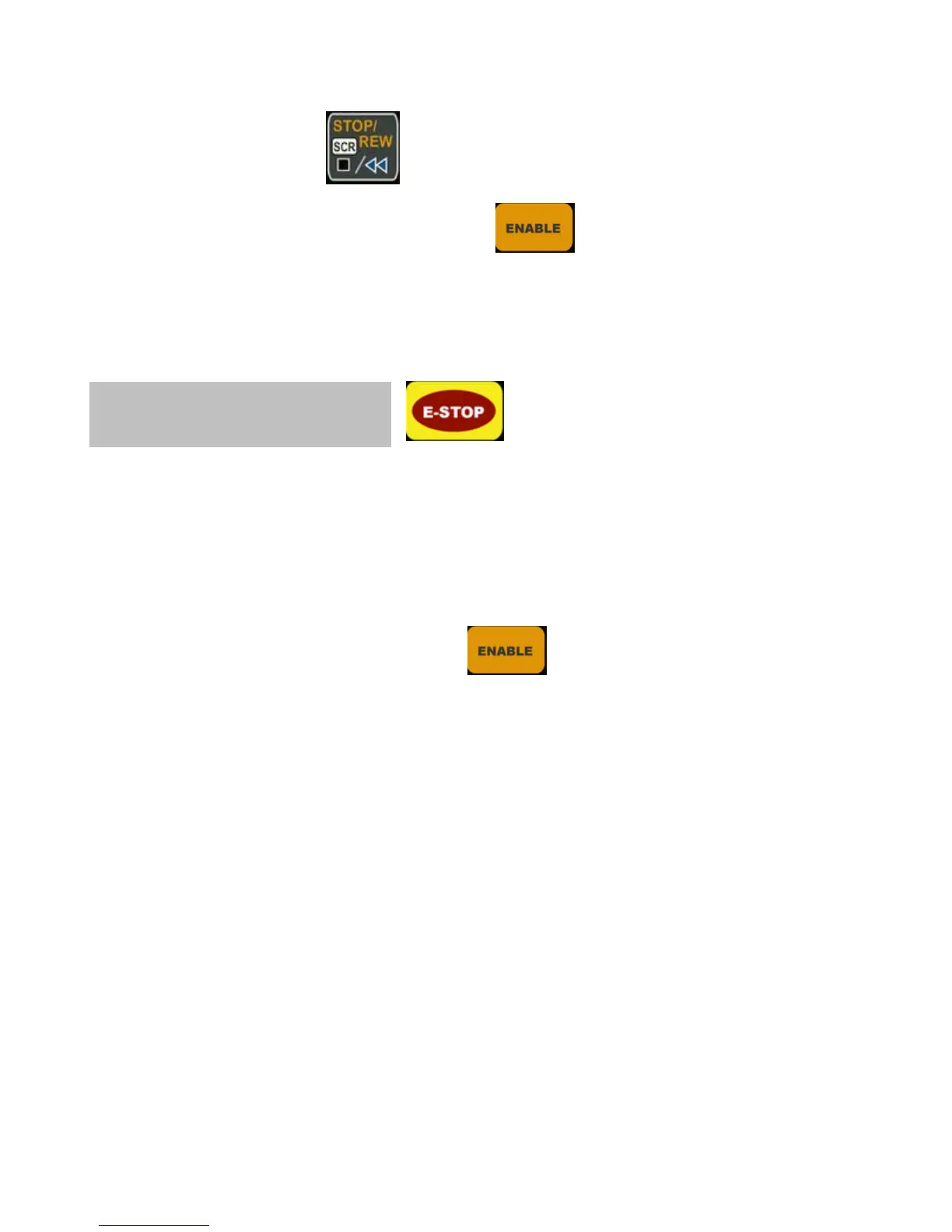

4.2 STOP / REW button :

 While pressing and holding the Enable Button , press and release STOP/REW

button to stop the program if the program is running.

5. E-Stop switch button

5.1 E-Stop switch button

 Press E-STOP switch button to send out E-Stop signal to LinuxCNC application and activate

Emergency Mode in LinuxCNC.

 While pressing and holding the Enable Button , press the E-STOP button to exit

Emergency mode.

 When in Emergency Mode, all MPG mode selection LEDs and Axis selection LED flash at ½

second rate.

SPECIFICATIONS

 100 steps (clicks) per Rev MPG.

 MPG MTBF > 10000 hour.

 Shipped with10' High Speed USB cable. Extendable to 15’ with extension cable, or to 45’ with

USB hub cables.

 Size (over all) 7"(L) x 2.6"(W) X 2.5"(H)
