VistaPure V3000 - System Overview; VistaPure Prefilter (R3251); VistaPure Deionization Filter (R3252); VistaPure Deionization Filter (R3253)

5
© 2000-2018 Vista Research Group, LLC. All rights reserved.

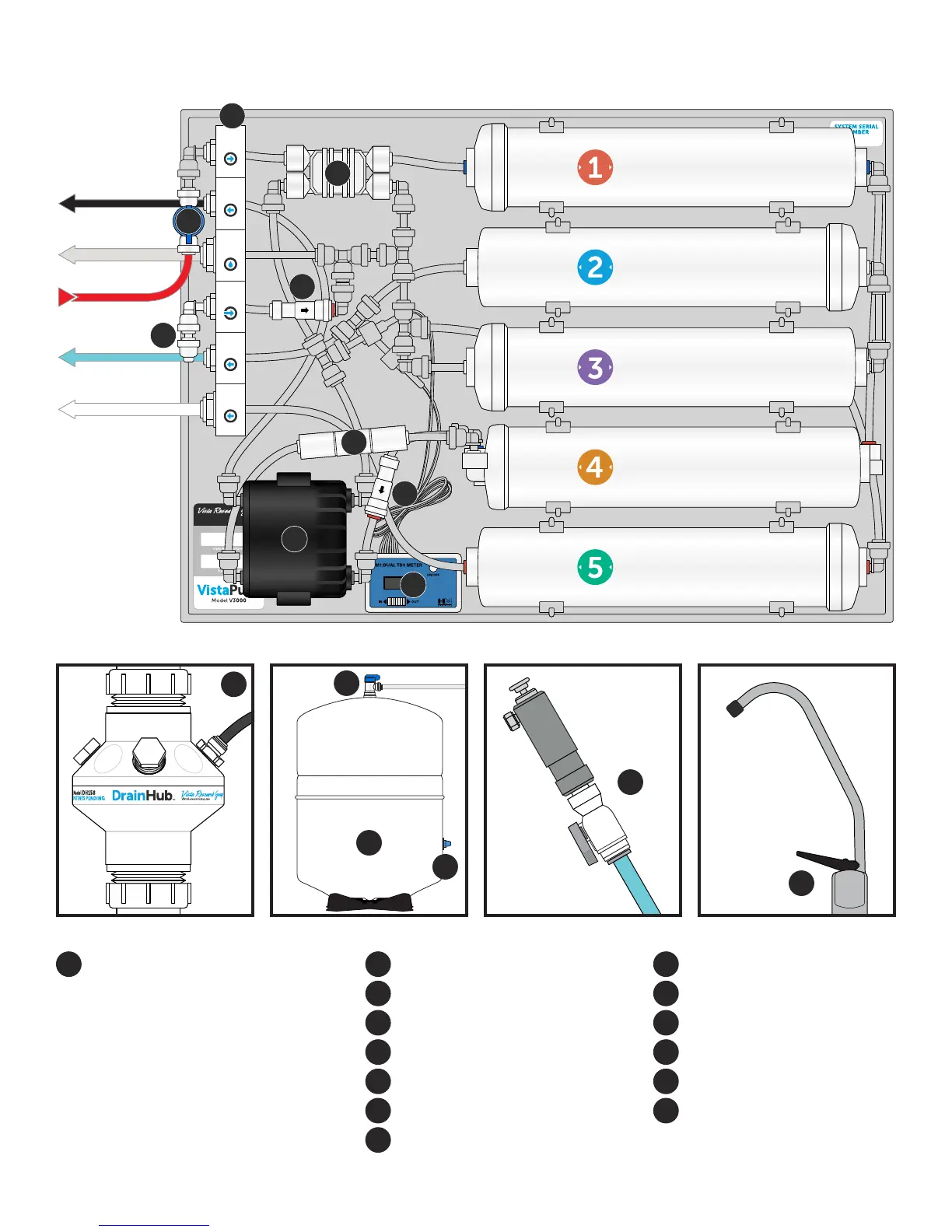

System Overview
VistaResearchGroup.com
P.O. Box 321, Ashland, Ohio 44805-0321
From
City Water
To
Drain
To/From
Storage
Tank
Injection
Port
To
Wand
To
Faucet
106101
From
City Water
To
Drain
To/From
Storage
Tank
Injection
Port
To
Wand
To
Faucet
From
City Water
To
Drain
To/From
Storage
Tank
Injection
Port
To
Wand
To
Faucet
H
F
D
D
G
B
C
E
A
To Drain
To Tank
To Wand
To Faucet
From H
2
0 Supply
R3253
Deionization Filter
R3252
Deionization Filter
R3251
Prefilter
R3254
Hyperfiltration Element
R3255
Polishing Filter
K
J
M
N
I
System Manifold
A1 From City Water to Prefilter
A2 To Drain from Pump
A3 To and from Storage Tank
A4 Injection Port to Tank Line
A5 To Autoclave Wand
A6 To Bottle Faucet
A
Automatic Shut-O Valve
System Water Shut-O Valve
Check Valves
Injection Port Assembly
Flow Restrictor
Permeate Pump
Dual TDS Meter
B
C
D
E
F
G
H
DrainHub with fittings
Storage Tank Shut-O Valve
Water Storage Tank
Tank Air Valve
VistaPure Wand
VistaPure Chrome Faucet
I
J
K
L
M
L
N
