6
Installation Guide & Owner’s Manual
TM
Installation
If the system is not already mounted in another product (sterilization center, etc�), mount as desired near a cold
water source and drain�
Provide for a 1/4” connection to the cold water supply� This is usually accomplished using a compression fitting
or one of the supplied fittings on the cold water line� Check local codes�
1
2
2A 2B
S6119
3/8” x 3/8” x 1/4” Tee Union
For 3/8” O�D� smooth
supply tubing
S6135
3/8” Angle Stop Adapter
x 3/8” Compression x 1/4” Tube
For 3/8” braided supply lines
with prefitted compression nuts
2A
2B
NOTE:
Use either 4A or 4B method to
supply cold water to the VistaPure�

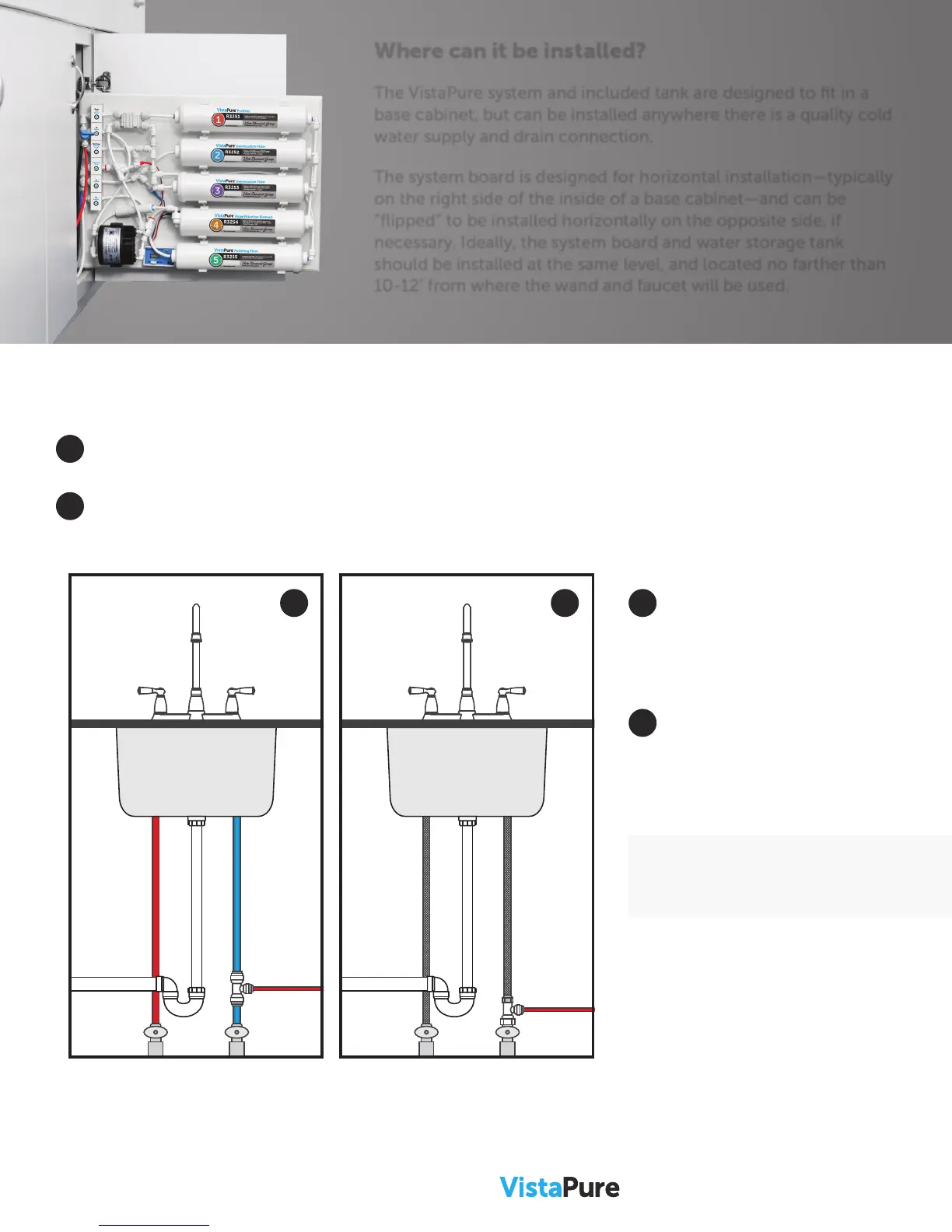

Where can it be installed?
The VistaPure system and included tank are designed to fit in a
base cabinet, but can be installed anywhere there is a quality cold
water supply and drain connection.
The system board is designed for horizontal installation—typically
on the right side of the inside of a base cabinet—and can be
“flipped” to be installed horizontally on the opposite side, if
necessary. Ideally, the system board and water storage tank
should be installed at the same level, and located no farther than
10-12’ from where the wand and faucet will be used.
