MACHINE ASSEMBLY
Compact Cover
Cover Door:
1. The cover door can be removed by opening it until the door is horizontal.
Then, gently spread the sides of the door over the round hinges and remove.
2. To reinstall the cover door, gently spread the sides of the door and place the
door hinge cutouts over the round hinges.

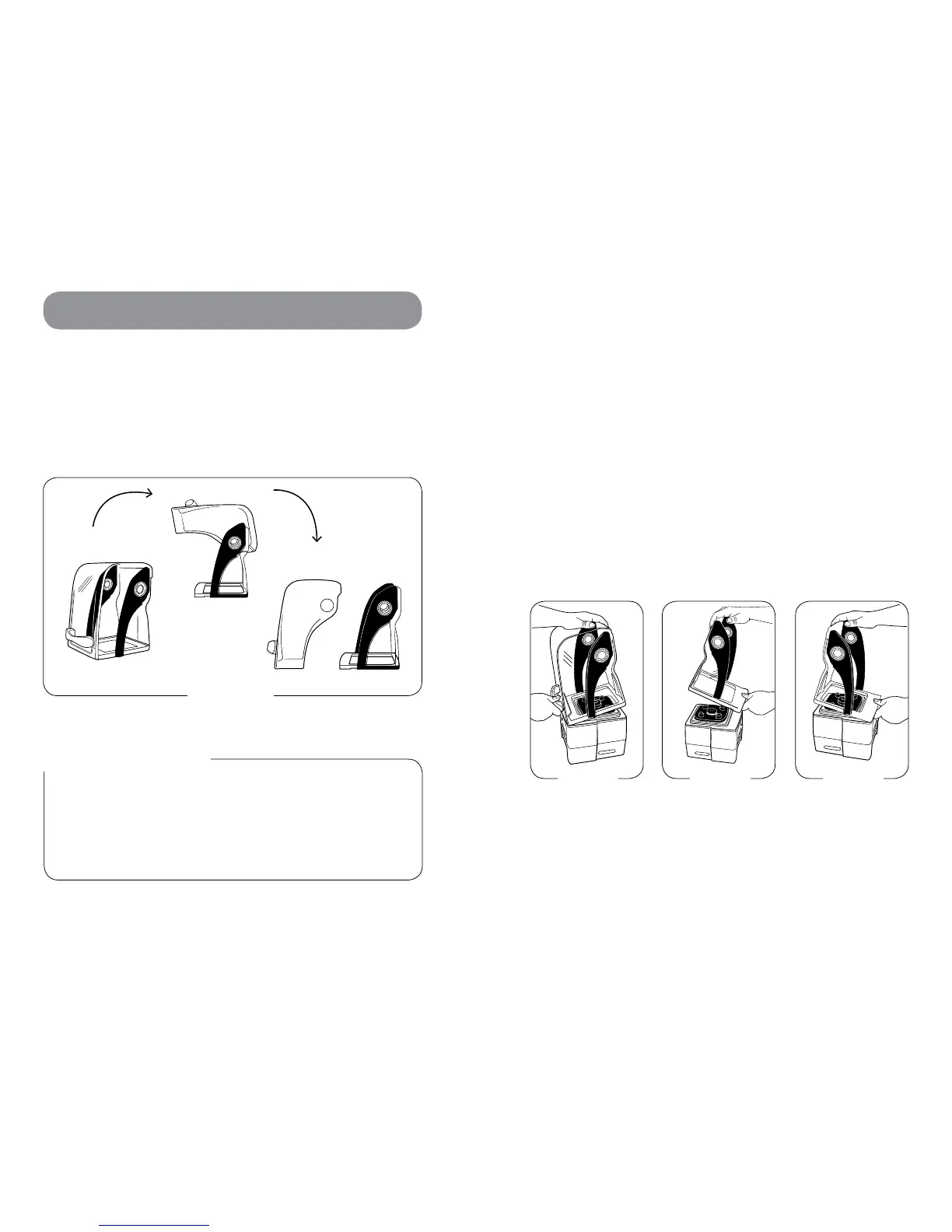

FIGURE A
IMPORTANT NOTES!
Containers:
• The Quiet One® machines are optimized for use with the Vitamix® 48 oz. / 1,4 L
Advance® container (3 sided container). The 64 oz. / 2,0 L standard container will
not fit in the compact cover used on the The Quiet One®. Contact Vitamix customer
service at 800-886-5235 or contact your distributor for more information.
• Outside the United States and Canada, your machine may come with a dierent
container configuration.
Back Cover:
For enhanced sound reduction, the sound enclosure for the The Quiet One® is
secured to the base using a patented magnetic system. Aside from the advantages
of reducing blending noise over that of mechanically attached door systems, the
magnetically attached system allows for fast and easy removal for cleaning.
To remove the sound enclosure:
• First ensure that the container has been removed from the unit.
• Grasp the enclosure with both hands.
• Tilt slightly back and pull the enclosure straight up (See Figure B).
To replace the sound enclosure:
• Start with the back cover detached from the cover door
• Align the opening in the base plate of the back cover (See Figure C)
• Start on one side of the centering pad and slowly lay the back cover
into position ensuring that the sound dampening pad is not pinched by
any portion of the base plate (Figure D)
FIGURE B FIGURE C
FIGURE D
