11. Cable Outlet Definition

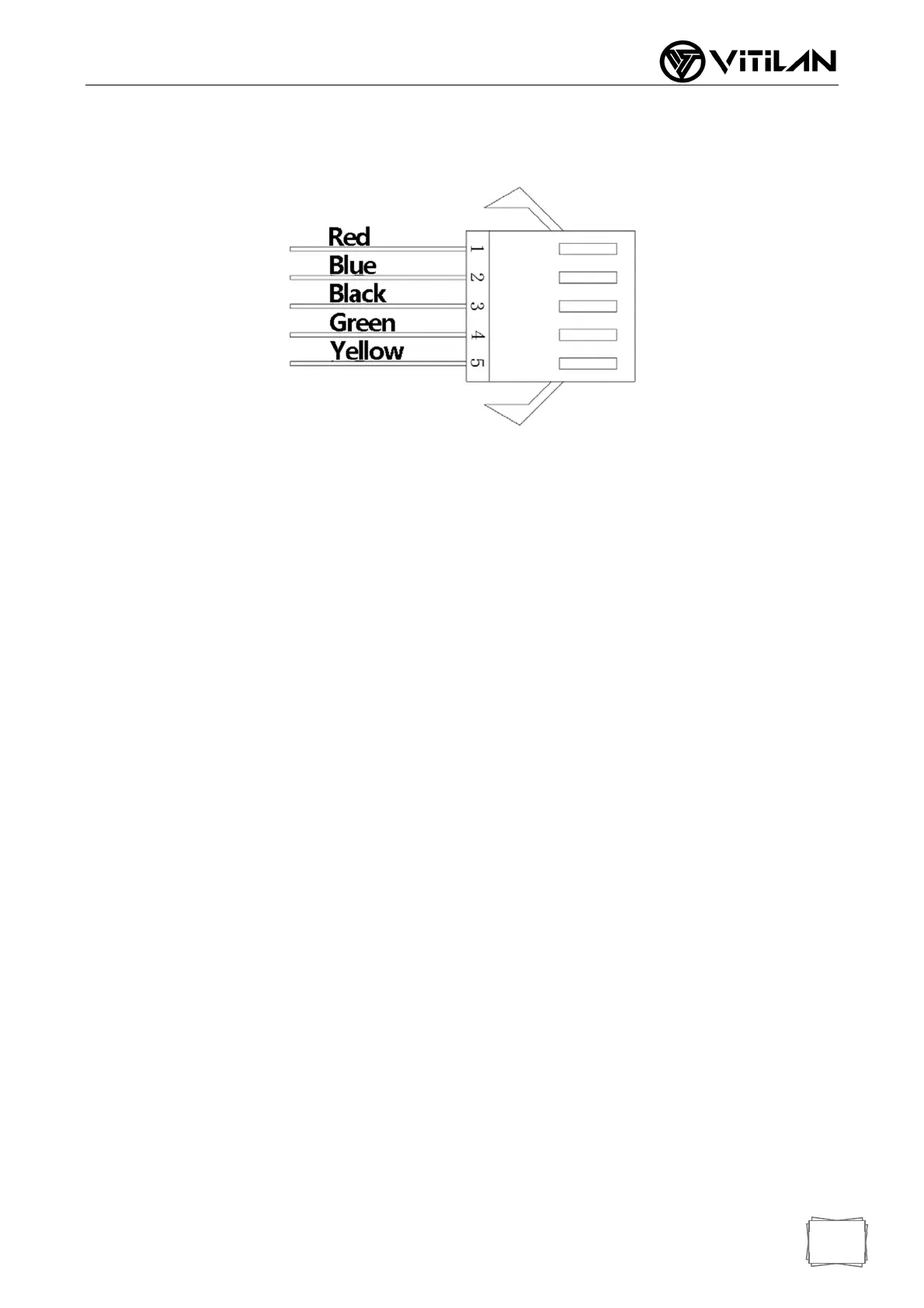

The color of the five-core waterproof line is <red, blue, black, green, and yellow>. The order is defined as
follows:
1、 RED：Power+ (Battery power 24V/36V/48V)
2、 Blue：Controller lock cable
3、 Black：GND
4、 Green：RXD display input signal, display receives signal from controller
5、 Yellow：TXD display output signal, display sends signal to controller
 Precautions:
 Pay attention to safety during use, and do not plug and unplug the instrument under the condition of
power supply.
 Try to avoid bumping on the instrument.
 Regarding the background parameter setting of the instrument, please do not change it at will, otherwise
normal riding cannot be guaranteed.
 When the instrument cannot be used normally, it should be sent for repair as soon as possible.
