Intelligent Liquid Crystal Instrument
Specification Parameters:
● Model: YL80C.
● 24V/36V/48V power supply
● Rated working current of instrument 10mA
● The maximum working current of the instrument is 30mA
● Shutdown leakage current < 1uA
● The operating current supplied to the controller is 50mA
● Working temperature-20 ~ 60 ℃
● Storage temperature-30 ~ 70 ℃

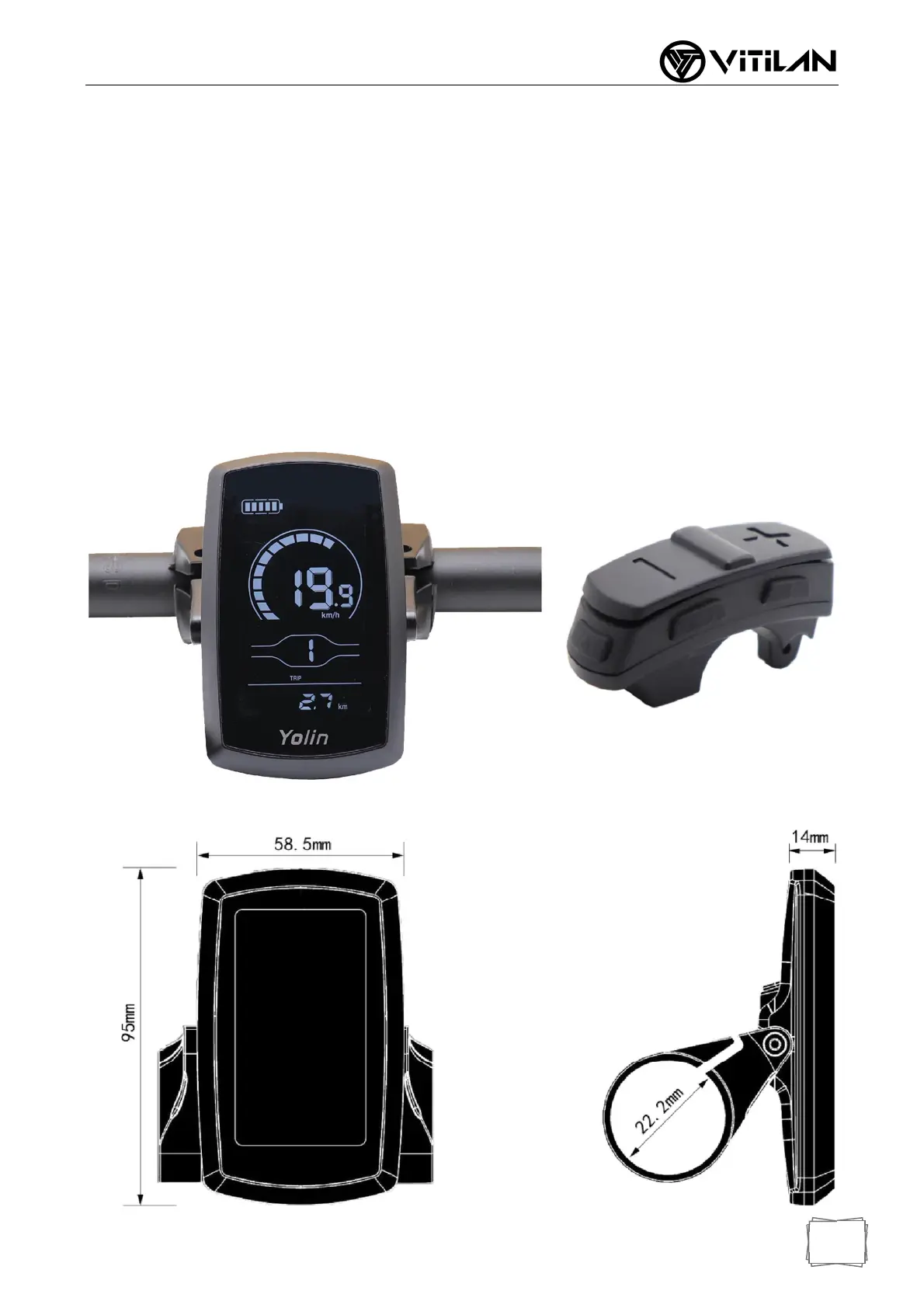

Physical Drawing and Dimensional Drawing (unit: mm)
