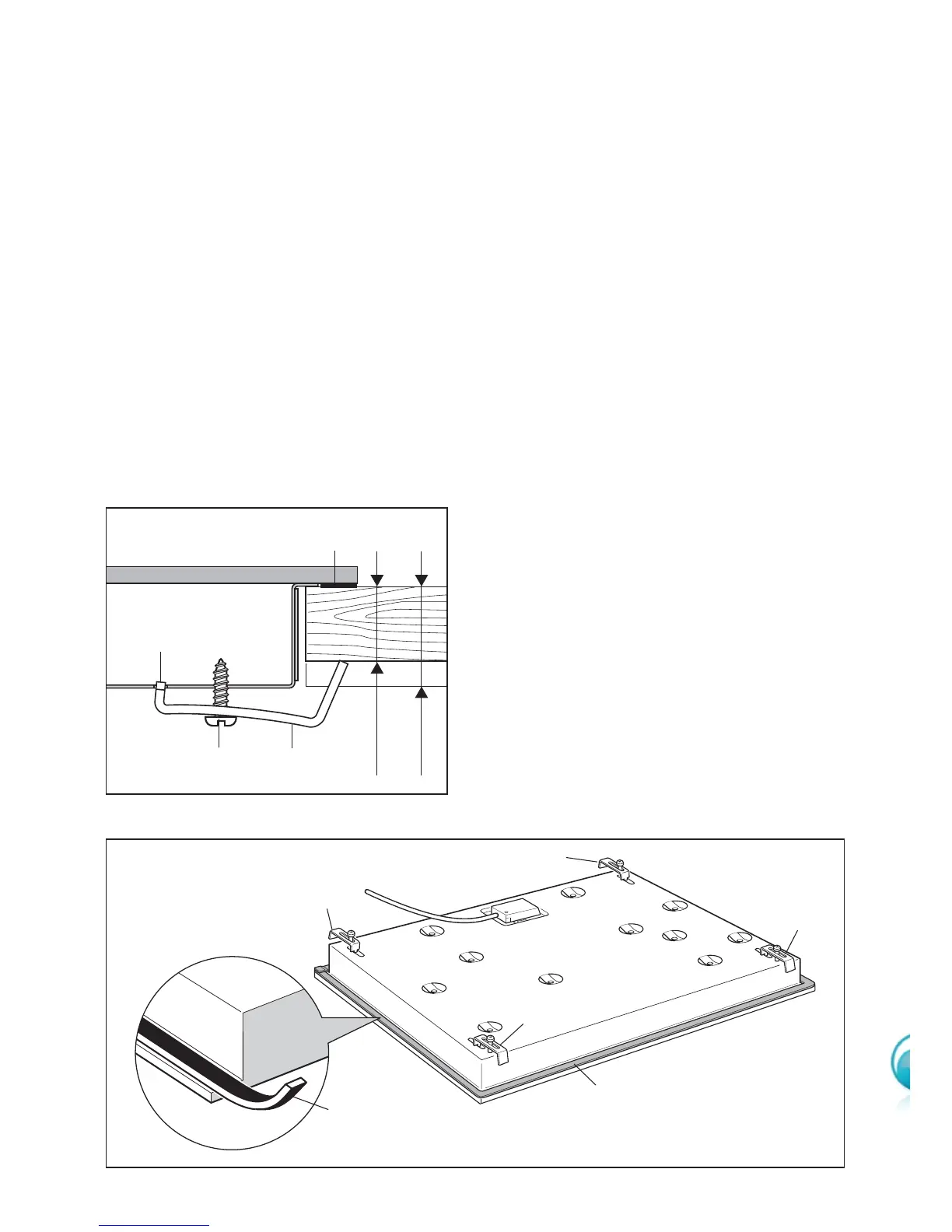

Fig. 3.4
FASTENING THE COOKTOP
Each cooktop is supplied with a set of tabs and screws to fasten it on units with a work-
ing surface from 3 to 4 cm deep.
The kit includes 4 tabs A and 4 self-threading screws B (fig. 3.4).
• Cut the unit.
• Turn the hob upside down and rest the glass side on a cloth.
• Spread the seal C around the edge of the hob (fig. 3.5).
• Put tabs A into the mountings; only tighten screws B a few turns.
Make sure that the tabs are mounted correctly as shown in the figures 3.4 - 3.5.
• Put the cooktop into the hole cut into the unit and position it correctly.
• Put tabs A into place, tooth D of the tabs should go into the hole.
• Tighten screws B until the cooktop is completely secured.
• Using a sharp tool cut off the part of gasket C which protrudes from the cooktop.
A
D
B
C
Fig. 3.5
C
C
C
C
A
Adhesive side
