Vitroceramic COOKING HOBS - Page 6

6
2
4
5
1
6 7 8 9
11 12
10
3
90 cm models
Electrical insulation Class I

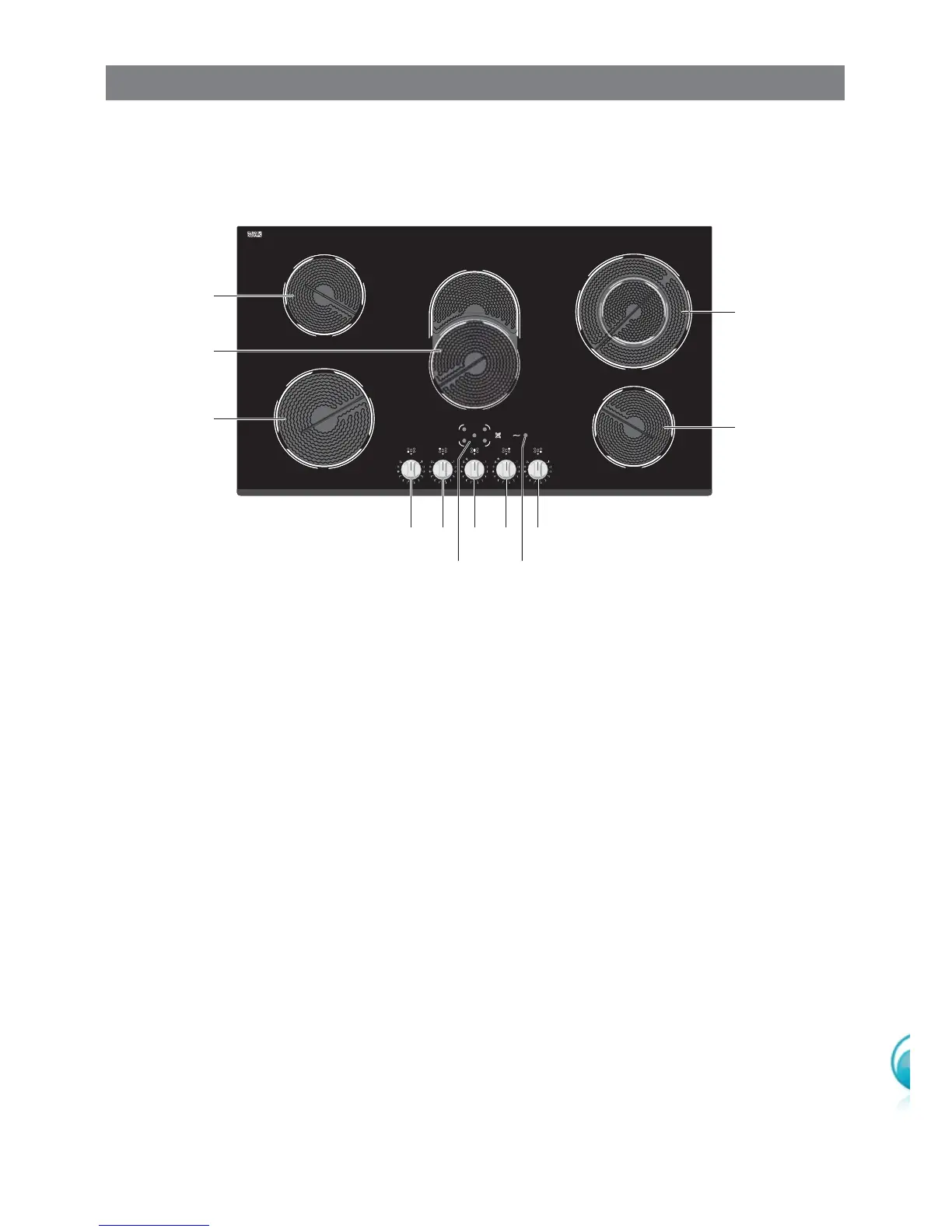

COOKING POINTS (Fig. 1.4)
1. Hi-light cooking zone Ø 180 mm - 1800 W
2. Hi-light cooking zone Ø 140 mm - 1200 W
3. Oval double hi-light cooking zone Ø 180 x 260 mm - 800/2200 W
4. Double hi-light cooking zone Ø 210/120 mm - 2200/750 W
5. Hi-light cooking zone Ø 140 mm - 1200 W
CONTROLS DESCRIPTION
6. Left front zone (1) control knob
7. Left rear zone (2) control knob
8. Central zone (3) control knob
9. Right rear zone (4) control knob
10. Right front zone (5) control knob
11. Residual heat indicators
12. Power on indicator light
Fig. 1.4
