4 turns clockwise
4,5 turns clockwise
Grill Broiler
4 turns clockwise Figure – 5 Figure – 6

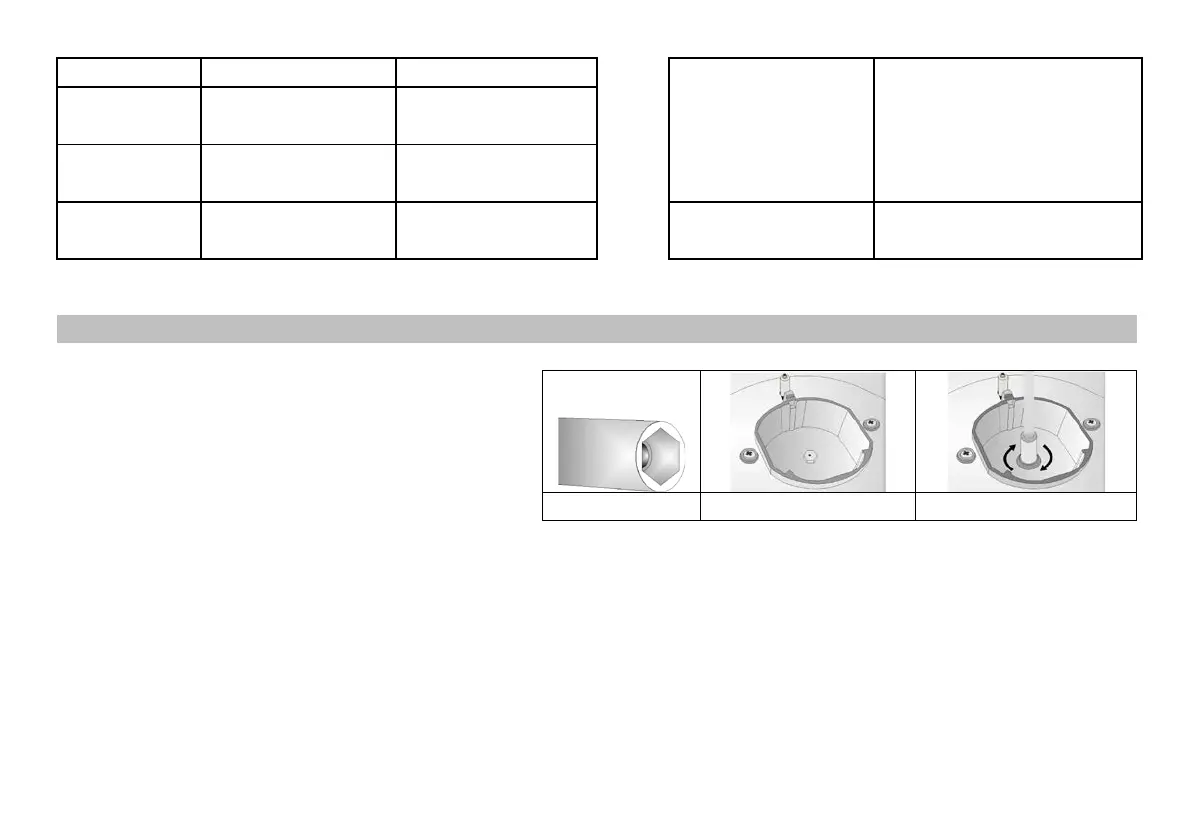

5 - NOZZLE CHANGEMENT OPERATION
1. Please use driver with special head for
removed and install nozzle as figure-7
2. Please remove nozzle (figure-8) from burner
with special nozzle driver and install new
nozzle (figure-9)
Oven Burner Nozzle Change:
1. Rem ove the oven broiler cover that is fixed with screws to the cavity. (figure 10)
2. Unscrew the screw that fixes the broiler to the cavity. Thus, the broiler is free from the cavity. (figure
3. The ignition electrode and the thermocouple are fixed by clip. Carefully disengage it from the clip and
detach the burner and the connection from each other as shown in the figure 12.
4. The burner remains unconnected after the removal of the ignition electrode and the thermocouple. Remove
the burner by raising it slightly and apply rightward pull-force. (figure 13)
5. The oven broiler injector is reached easily after the oven broiler is removed. (figure 14)
