1.4 - CONNECTIONS
Technical Reference myReflow.com
CHAPTER 1 5
1.4.5 PERSONAL COMPUTER
The complete Personal Computer is packed in boxes for transporting.

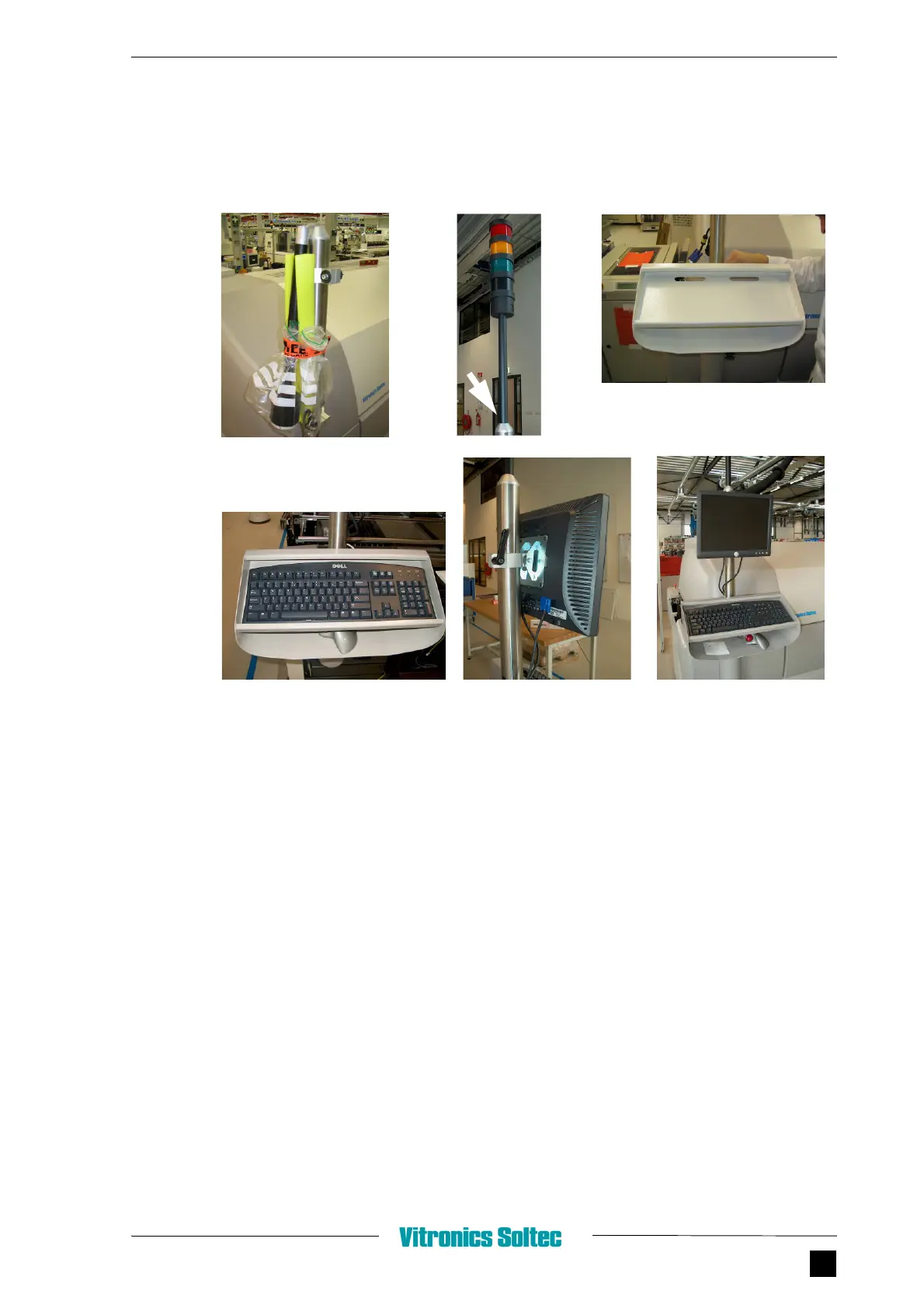

FIGURE 1.6 INSTALLING PC
1. Unpack all boxes.
2. Unpack PC arm.
3. Slide signal column in position.
4. Install keyboard holder.
5. Install keyboard and mouse.
6. Install the monitor on PC arm.
7. Connect all cables to the PC.
❷
❸
❹
❺
❼
❻
