1.6 LEVELING
After the machine is placed on its location and the cover is opened, the next steps should be fol-
lowed.

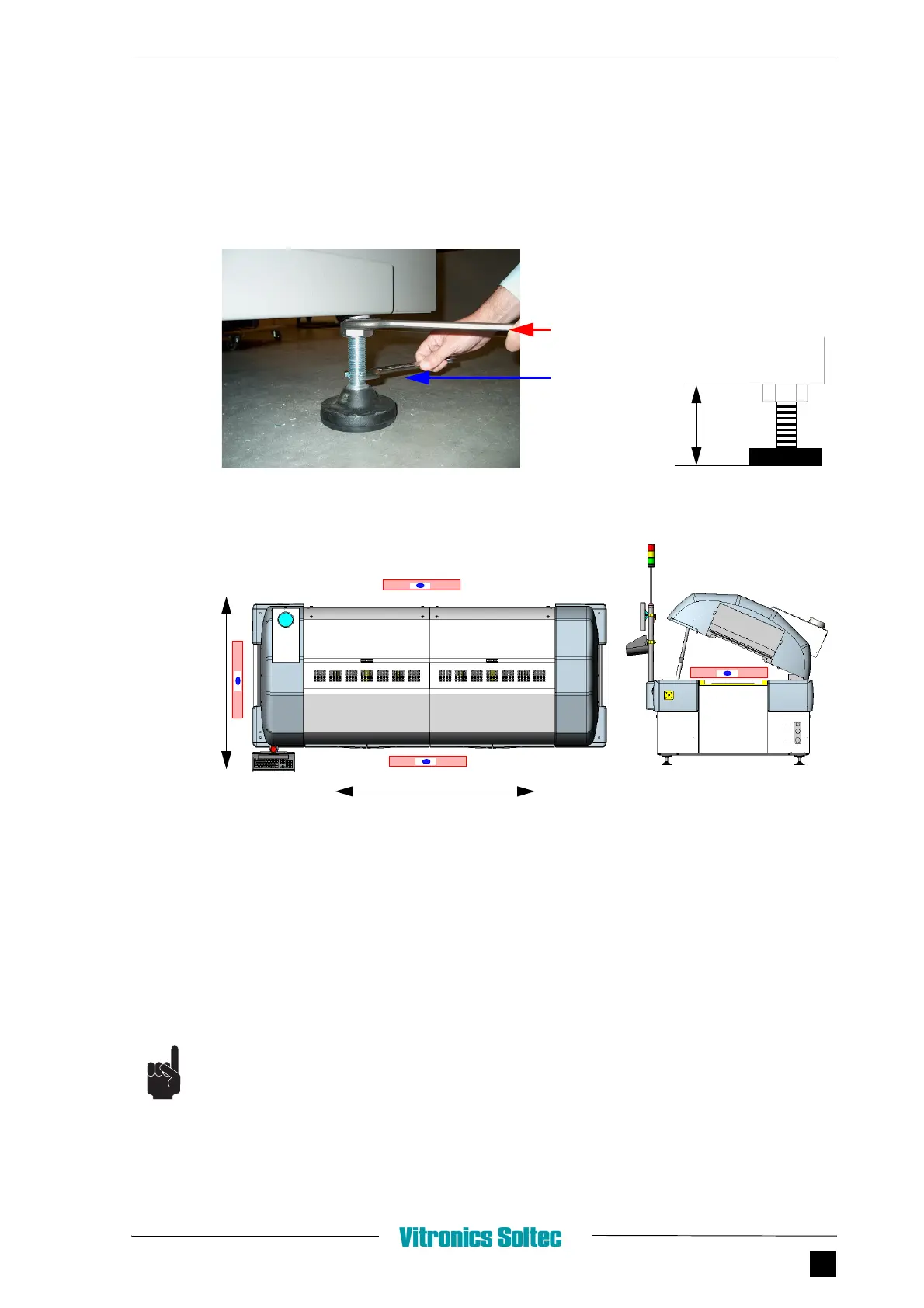

FIGURE 1.8 ADJUSTING LEVEL
FIGURE 1.9 LEVELING
1. Adjust the threaded feet of the machine until it stands perfectly in both X and Y direction.
A spirit level should be placed on the frame for checking the X direction. For the Y-
direction the spirit level should be placed on both conveyorbars.
2. When machine is leveled, tighten the nuts (A). See Figure 1.8)
After this procedure the machine is mechanically correct installed.
36 mm open
17 mm open
A
B
ended spanner
ended spanner
57-139mm
X- level
TOPVIEW
SIDEVIEW
Y- l e v e l
spirit-level
