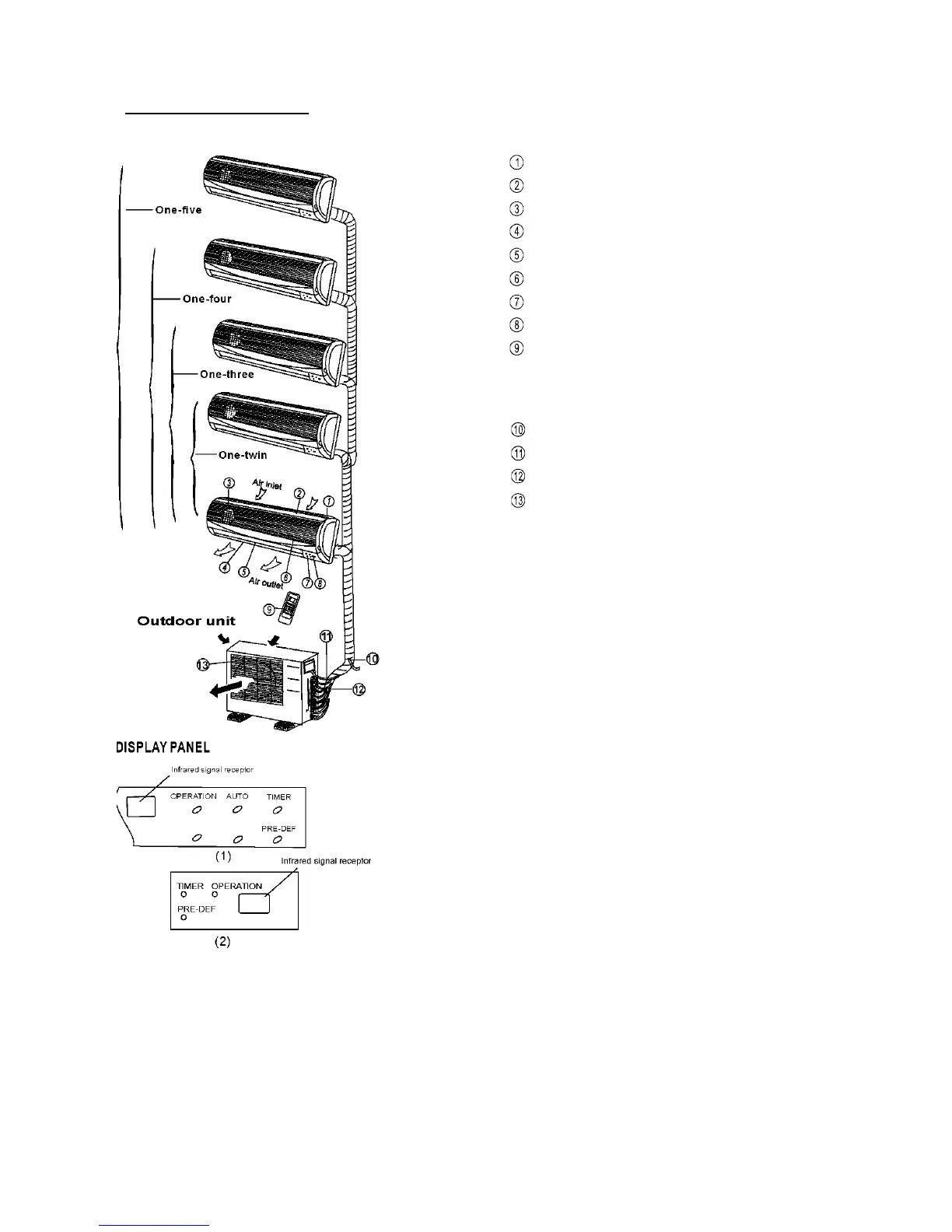

Identification of parts
Indoor unit
Indoor unit
Front panel frame
Front panel
Air filter
Horizontal air flow grille
Vertical airflow louver
Room temperature sensor
Display panel
Infrared signal receiver
Remote controller
Outdoor unit
Drain hose, refrigerant connecting pipe
Connective cable
Stop valve
Fan hood
DISPLAYPANEL
OPERATION indicator:
The indicator flashes once every second after
power is on and illuminates when the air conditioner
is in operation.
TIMER indicator:
The indicator illuminates when TIMER is set ON.
PRE-DEF. Indicator
(For cooling& heating model only):
This indicator illuminates when the air conditioner
starts defrosting automatically or when the Anti-cold
air function is activated in heating operation.
AUTO indicator:
This indicator flashes when the air conditioner is in
AUTO operation.
