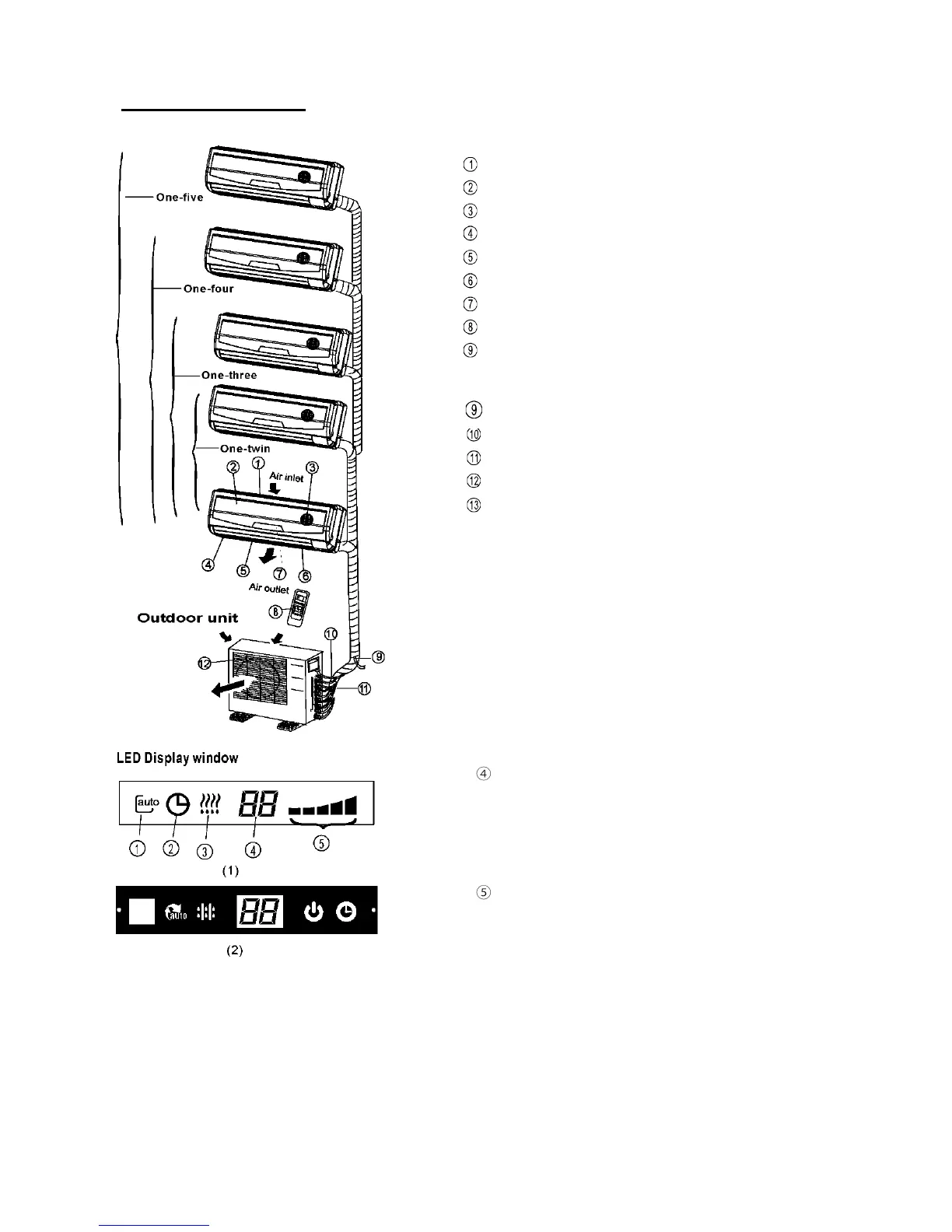

Identification of parts
Indoor unit
Indoor unit
© Front panel frame
© Front panel
© Air filter
© Horizontal air flow grille
© Vertical airflow louver
© Room temperature sensor
© Display panel
© Remote controller
Outdoor unit
® Drain hose, refrigerant connecting pipe
© Connective cable
© Stop valve
© Fan hood
LED DISPLAY WINDOW
① AUTO indication lamp
Lights up during the Auto operation.
② TIMER indication lamp
Lights up during Timer operation.
③ DEFROST indication lamp
(For Cooling & Heating models only): Lights up
when the air conditioner starts defrosting
automatically or when the warm air control feature
is activated in heating operation.
DIGITAL DISPLAY indication lamp
Displays the current setting temperature. Only when
the air conditioner is in FAN operation, it displays the
actual room temperature. And displays the
malfunction code or protection code.
OPERATION indication lamp
This indicator appears only when the
compressor is in operation and indicates the
current operating frequency.
